Iconia B1-A71 - Page 83

Service and Maintenance 5-34

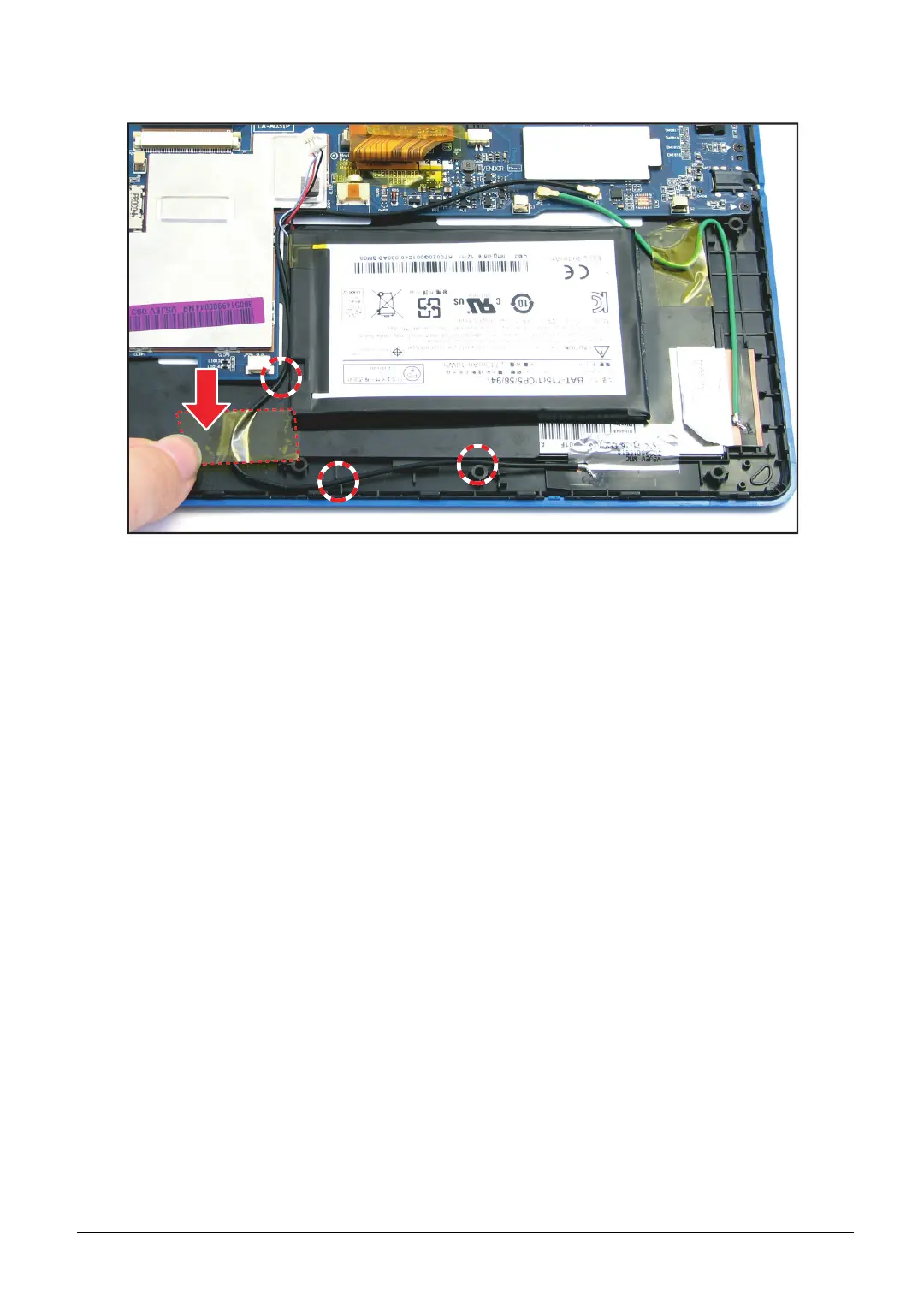

3. Route the WLAN antenna cable through the guides and then attach the protective tape to
secure the cable in place.
Figure 5-50. Routing the WLAN Antenna
4. Install the lower case (see Lower Case Installation on page 5-14).
