I Single Package Heat Pumps Installation Instructions

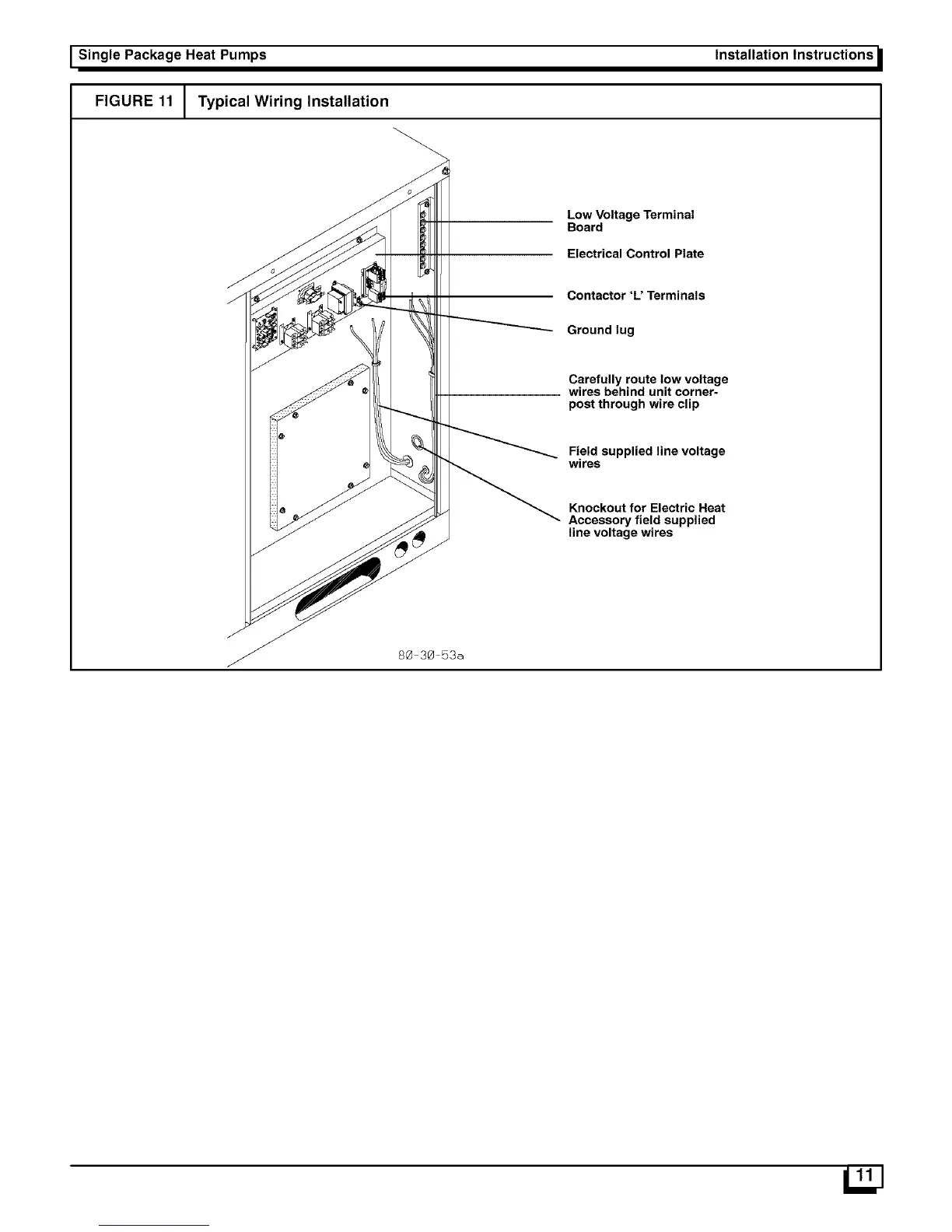

FIGURE 11 I Typical Wiring Installation
Low Voltage Terminal
Board
Electrical Control Plate
Contactor 'L' Terminals
Ground lug
Carefully route low voltage
wires behind unit corner-
post through wire clip
Field supplied line voltage
wires
Knockout for Electric Heat
Accessory field supplied
line voltage wires
To Next Page
