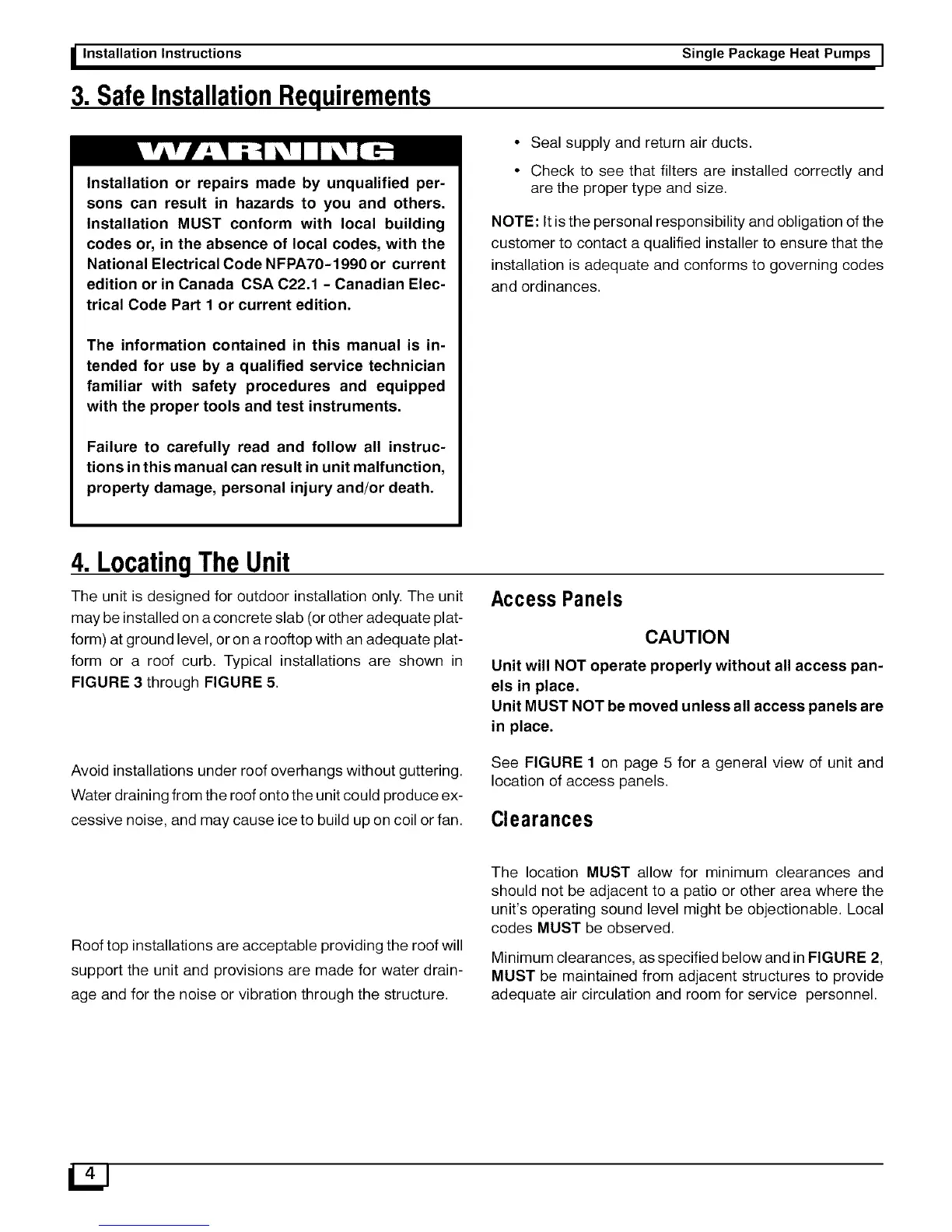

_ Installation Instructions Single Package Heat Pumps I
3.SafeInstallationRequirements
Installation or repairs made by unqualified per-
sons can result in hazards to you and others.
Installation MUST conform with local building
codes or, in the absence of local codes, with the
National Electrical Code NFPA70-1990 or current
edition or in Canada CSA C22.1 - Canadian Elec-
trical Code Part 1 or current edition.
The information contained in this manual is in-
tended for use by a qualified service technician
familiar with safety procedures and equipped
with the proper tools and test instruments.
Failure to carefully read and follow all instruc-
tions in this manual can result in unit malfunction,
property damage, personal injury and/or death.
• Seal supply and return air ducts.
• Check to see that filters are installed correctly and
are the proper type and size.
NOTE: It is the personal responsibility and obligation of the
customer to contact a qualified installer to ensure that the
installation is adequate and conforms to governing codes
and ordinances.
4. Locating TheUnit
The unit is designed for outdoor installation only. The unit
may be installed on a concrete slab (or other adequate plat-
form) at ground level, oron a rooftop with an adequate plat-
form or a roof curb. Typical installations are shown in
FIGURE 3 through FIGURE 5.
Access Panels
CAUTION
Unit will NOT operate properly without all access pan-
els in place.
Unit MUST NOT be moved unless all access panels are
in place.
Avoid installations under roof overhangs without guttering.
Water draining from the roof onto the unit could produce ex-
cessive noise, and may cause ice to build up on coil or fan.
See FIGURE 1 on page 5 for a general view of unit and
location of access panels.
Clearances
Roof top installations are acceptable providing the roof will
support the unit and provisions are made for water drain-
age and for the noise or vibration through the structure.
The location MUST allow for minimum clearances and
should not be adjacent to a patio or other area where the
unit's operating sound level might be objectionable. Local
codes MUST be observed.
Minimum clearances, as specified below and in FIGURE 2,
MUST be maintained from adjacent structures to provide
adequate air circulation and room for service personnel.
IJJ
