S Installation Instructions Single Package Heat Pumps I

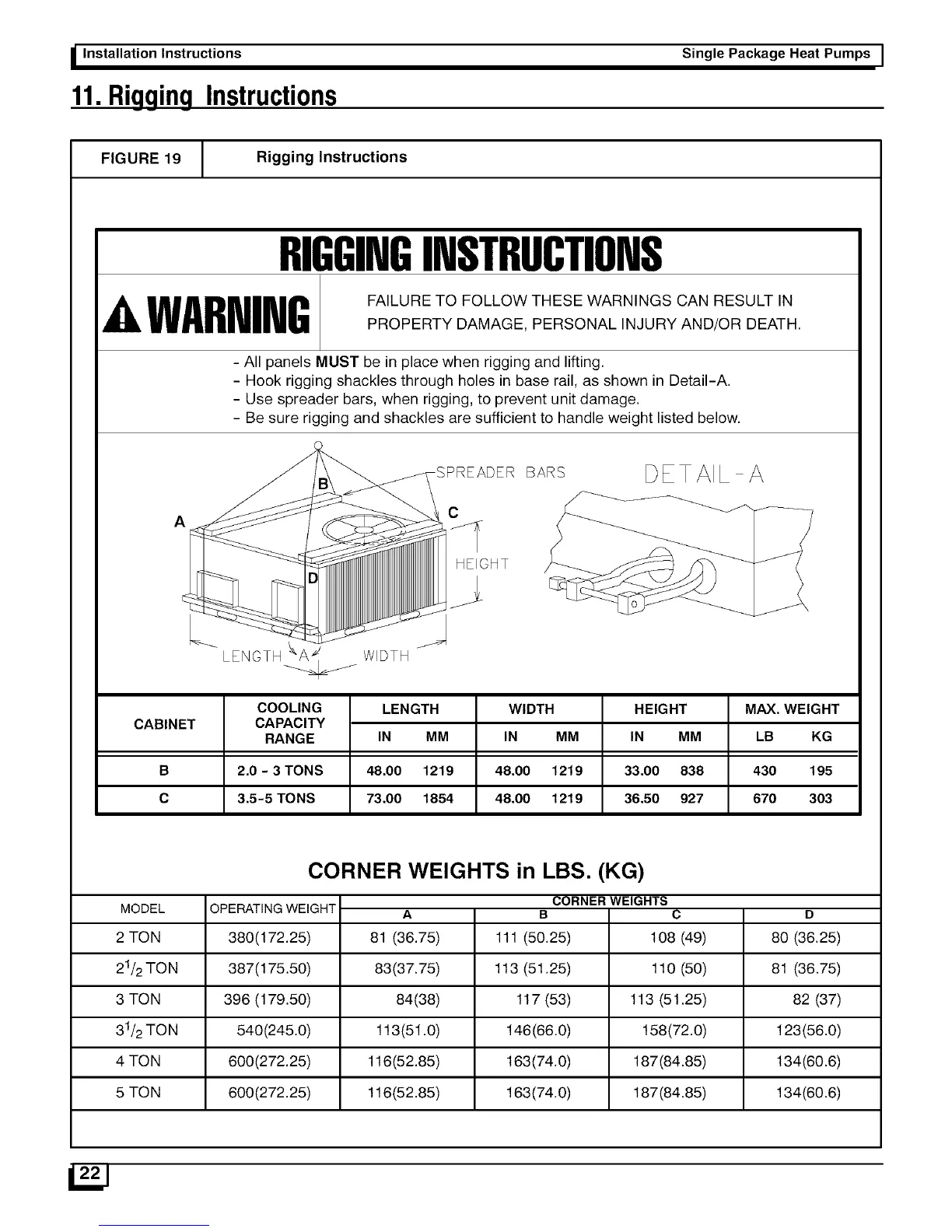

11.Rigging Instructions
FIGURE 19 Rigging Instructions
RIGGINGINSTRUCTIONS
, WARNING
PROPERTY DAMAGE, PERSONAL INJURY AND/OR DEATH.
- All panels MUST be in place when rigging and lifting.
- Hook rigging shackles through holes in base rail, as shown in DetaiI-A.
- Use spreader bars, when rigging, to prevent unit damage.
- Be sure rigging and shackles are sufficient to handle weight listed below.
SARS DETAIL A
CABINET
B
C
COOLING
CAPACITY
RANGE
2.0 - 3 TONS
3.5-5 TONS
LENGTH
IN MM
48.00 1219
73.00 1854
WIDTH
IN MM
48.00 1219
48.00 1219
HEIGHT
IN MM
33.00 838
36.50 927
MAX. WEIGHT
LB KG
430 195
670 303
MODEL
2 TON
21/2 TON
3 TON
31/2 TON
4 TON
5 TON
CORNER WEIGHTS in LBS. (KG)
CORNER WEIGHTS
OPERATINGWEIGHT A B C D
380(172.25) 81 (36.75) 111 (50.25) 108 (49) 80 (36.25)
387(175.50) 83(37.75) 113 (51.25) 110 (50) 81 (36.75)
396 (179.50) 84(38) 117 (53) 113 (51.25) 82 (37)
540(245.0) 113(51.0) 146(66.0) 158(72.0) 123(56.0)
600(272.25) 116(52.85) 163(74.0) 187(84.85) 134(60.6)
600(272.25) 116(52.85) 163(74.0) 187(84.85) 134(60.6)
