ICS Nav6 User Manual

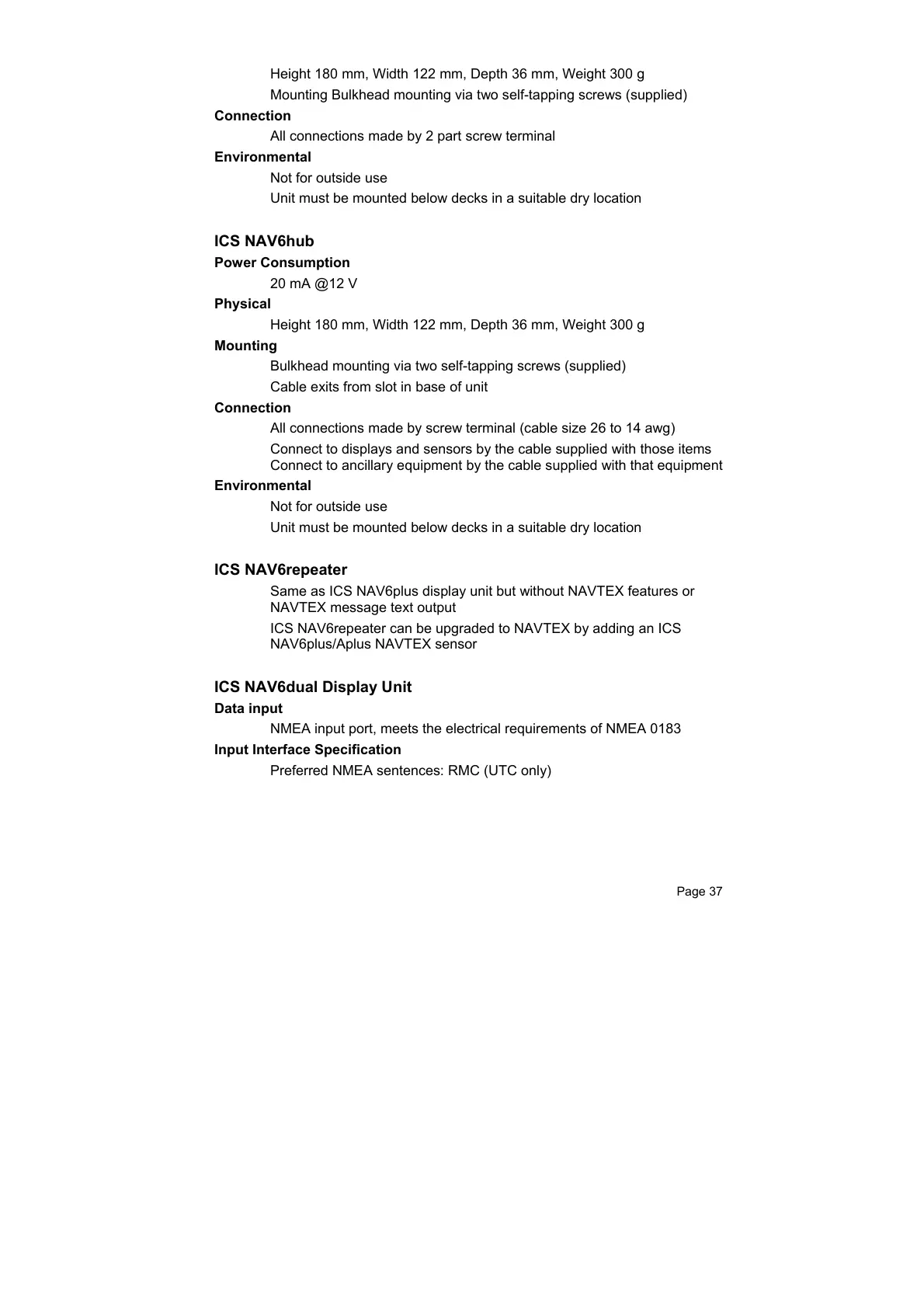

Page 37
Height 180 mm, Width 122 mm, Depth 36 mm, Weight 300 g
Mounting Bulkhead mounting via two self-tapping screws (supplied)
Connection
All connections made by 2 part screw terminal
Environmental
Not for outside use
Unit must be mounted below decks in a suitable dry location
ICS NAV6hub
Power Consumption
20 mA @12 V
Physical
Height 180 mm, Width 122 mm, Depth 36 mm, Weight 300 g
Mounting
Bulkhead mounting via two self-tapping screws (supplied)
Cable exits from slot in base of unit
Connection
All connections made by screw terminal (cable size 26 to 14 awg)
Connect to displays and sensors by the cable supplied with those items
Connect to ancillary equipment by the cable supplied with that equipment
Environmental
Not for outside use
Unit must be mounted below decks in a suitable dry location
ICS NAV6repeater
Same as ICS NAV6plus display unit but without NAVTEX features or
NAVTEX message text output
ICS NAV6repeater can be upgraded to NAVTEX by adding an ICS
NAV6plus/Aplus NAVTEX sensor
ICS NAV6dual Display Unit
Data input
NMEA input port, meets the electrical requirements of NMEA 0183
Input Interface Specification
Preferred NMEA sentences: RMC (UTC only)

ICS Nav6 Specifications

Power

voltage range	10.8V to 15.6V
standby power consumption	1.5 W at 12V
printing power consumption	2.5 W at 12V

Operating Environment

operating temperature range	0 to +40°C
storage temperature range	-20 to +55°C
humidity	0 to 95%

Weight and Dimensions

weight without cable	1200 g
paper roll width	80mm
paper roll length	20m
