ICS Nav6 User Manual

Page 38

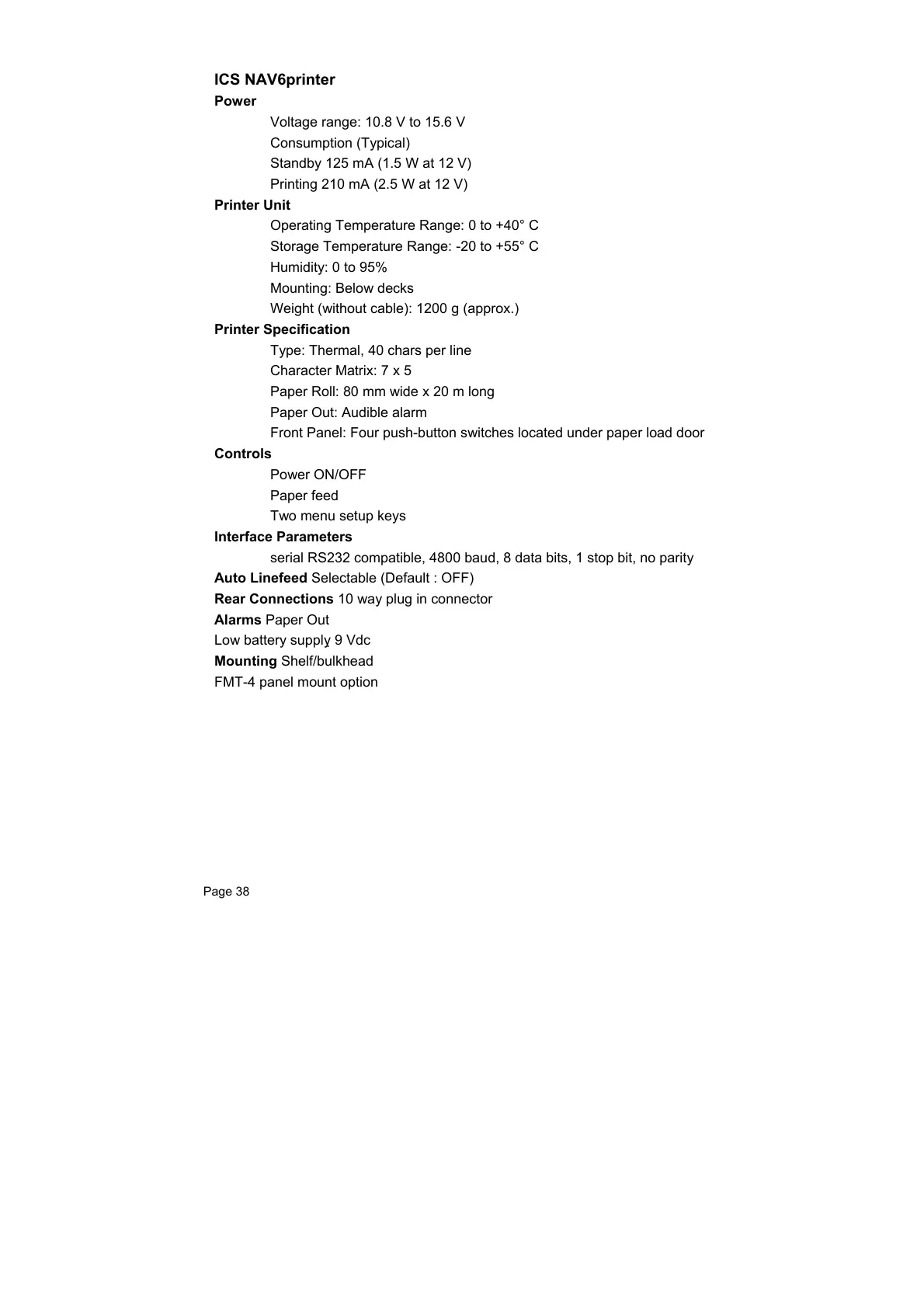

ICS NAV6printer
Power
Voltage range: 10.8 V to 15.6 V
Consumption (Typical)
Standby 125 mA (1.5 W at 12 V)
Printing 210 mA (2.5 W at 12 V)
Printer Unit
Operating Temperature Range: 0 to +40° C
Storage Temperature Range: -20 to +55° C
Humidity: 0 to 95%
Mounting: Below decks
Weight (without cable): 1200 g (approx.)
Printer Specification
Type: Thermal, 40 chars per line
Character Matrix: 7 x 5
Paper Roll: 80 mm wide x 20 m long
Paper Out: Audible alarm
Front Panel: Four push-button switches located under paper load door
Controls
Power ON/OFF
Paper feed
Two menu setup keys
Interface Parameters
serial RS232 compatible, 4800 baud, 8 data bits, 1 stop bit, no parity
Auto Linefeed Selectable (Default : OFF)
Rear Connections 10 way plug in connector
Alarms Paper Out
Low battery supply 9 Vdc
Mounting Shelf/bulkhead
FMT-4 panel mount option

ICS Nav6 Specifications

Power

voltage range	10.8V to 15.6V
standby power consumption	1.5 W at 12V
printing power consumption	2.5 W at 12V

Operating Environment

operating temperature range	0 to +40°C
storage temperature range	-20 to +55°C
humidity	0 to 95%

Weight and Dimensions

weight without cable	1200 g
paper roll width	80mm
paper roll length	20m
