ICT KT-LCD7C - C4 Handlebar Function Setting

ELECTRIC BICYCLE METER KT—LCD7C Product User Manual
- 21 -
1
The meter is powered on and the power assist ratio is at gear 1.
2
The meter is powered on and the power assist ratio is at gear 2.
3
The meter is powered on and the power assist ratio is at gear 3.
4
The meter is powered on and the power assist ratio is at gear 4.
5
The meter is powered on and the power assist ratio is at gear 5.
6&7
Retain
8
Each startup will automatically restore the gear shutdown last time.
After finishing C3 parameter setting, press button (SW) to save the current set
values and enter C4 parameter setting interface.
○ C4 Handlebar Function Setting

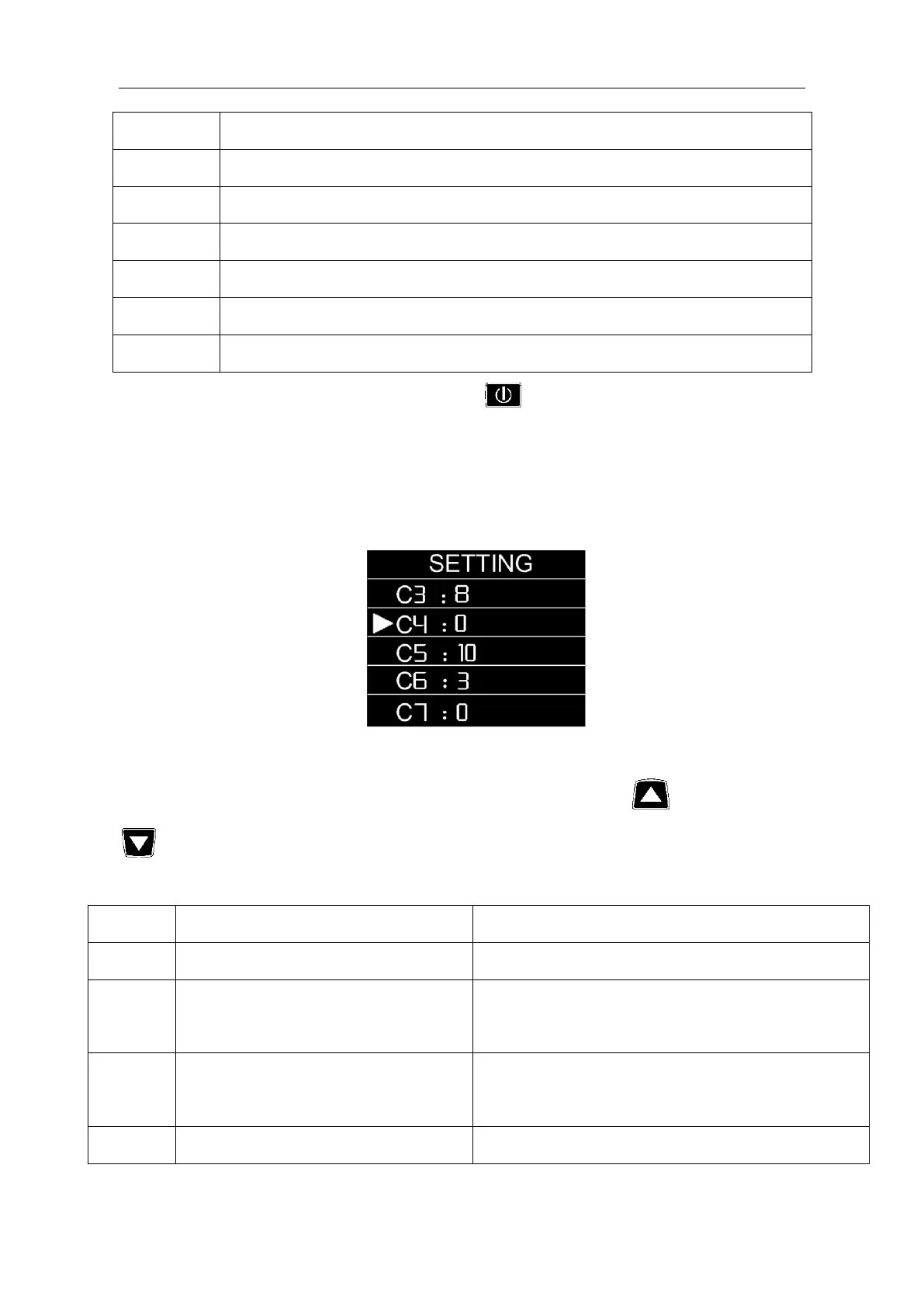

Enter C4 parameter setting interface,C4 parameter column flashes.
C4 parameter setting interface
C4 is handlebar function setting, the setting range is 0-4, press button (UP) or
button (DOWN) for selection.
C4 parameter definition table：
C4 value
P4=0
P4=1
0
zero startup handlebar
Non-zero startup handlebar
1
Zero startup, handlebar speed limit is
6Km/h
Before power assist, the handlebar speed limit is
6Km/h, after power assist, handlebar is full speed.
2
Zero startup, handlebar speed limit is
specified
Non-zero startup, handlebar is specified speed
limit.
3
Zero startup, Zero gear effectively
Before power assist, the handlebar speed limit is
