ELECTRIC BICYCLE METER KT—LCD7C Product User Manual
- 30 -

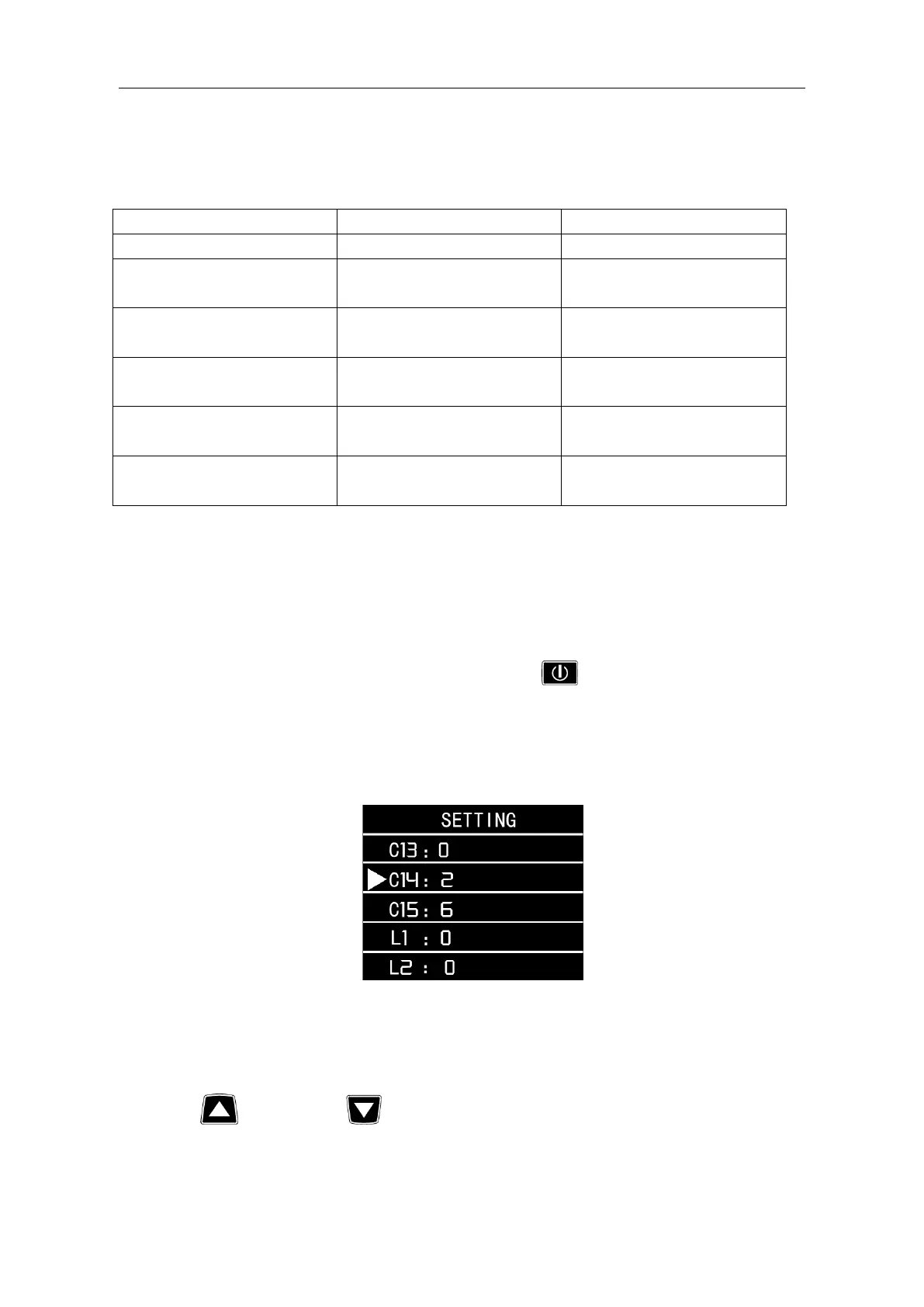

C13 parameter definition table:
C13 Value
ABS braking strength
Energy recovery efficiency
0
None
None
1
Class 1 braking strength
Best energy recovery
efficiency
2
Class2 braking strength
General energy recovery
efficiency
3
Class 3 braking strength
Weaker energy recovery
efficiency
4
Class4 braking strength
Poor energy recovery
efficiency
5
Class5 braking strength
Bad energy recovery
efficiency
The recommended value of C13 is 1; other values need to be chosen with caution for
use.
Be sure to note:
1. the higher is the braking intensity level, and the braking strength will be greater,
the greater damage to the motor shaft accordingly.
2. If the battery has a BMS function, disable this function.
After finishing the parameter setting of C13, press (SW) button for short to enter
C14 parameter setting interface.
○ C14 Power-assist tuning parameters Setting
Enter into C14 parameter setting interface, C14 parameter bar flashes.
C14 parameter setting interface
C14 is the parameters of power-assist tuning setting, with the default value of 2. The
power-assist is between1-4 gear, and it is invalid until P3 equals to 1. The setting range 1-3,
and press (UP) button or (DOWN) button for short to make selection.
