ICT KT-LCD7C - C2 Motor Phase Classification Coding Setting; C3 Power Assist Ratio Gear Initialization Setting

ELECTRIC BICYCLE METER KT—LCD7C Product User Manual
- 20 -

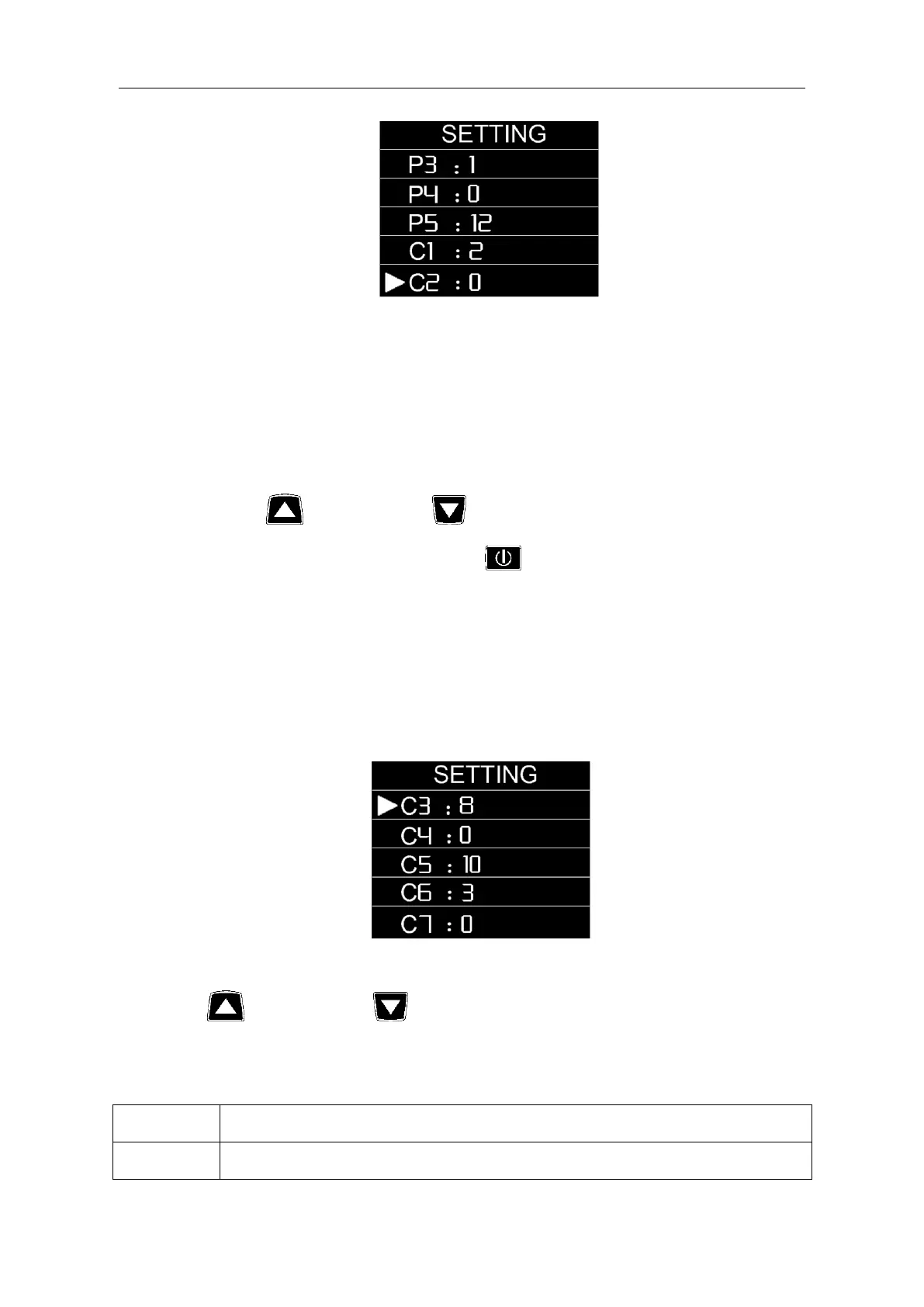

C2 parameter setting interface
C2 is motor phase classification coding setting, it is served as identification parameter
of different phases of the motor when using sine wave drive and the default value is 0.
When C2 setting is 0, indicating that the used Quantum motor phase is an ordinary one.
When the setting is a certain value, indicating a particular motor phase is used. C2 setting
range is 0-1, press button (UP) or button (DOWN) for selection.
After finishing C2 parameter setting, press button (SW) to save the current set
values and enter C3 parameter setting interface.
○ C3 Power Assist Ratio Gear Initialization Setting
Enter C3 parameter setting interface, C3 parameter column flashes.
C3 parameter setting interface
Press button (UP) or button (DOWN) for selection C3 parameter values.
The factory default is 8.
C3 parameter values：
C3
Parameter value meaning
0
The meter is powered on and the power assist ratio is at gear 0.
