TILT-A-WAY HYJG 1
REVERSING EDGE INSTALLATION
Cord From C Switch
Reversing Edge Holding Track (Length is required)
8 X 3/4" Tapping Phillips Pan Head Screw
Reversing Edge Rubber Strip (Length is required)
(Insert in track from front)
C Switch (Order length as required)
(Insert in track from front)
3/24/2016

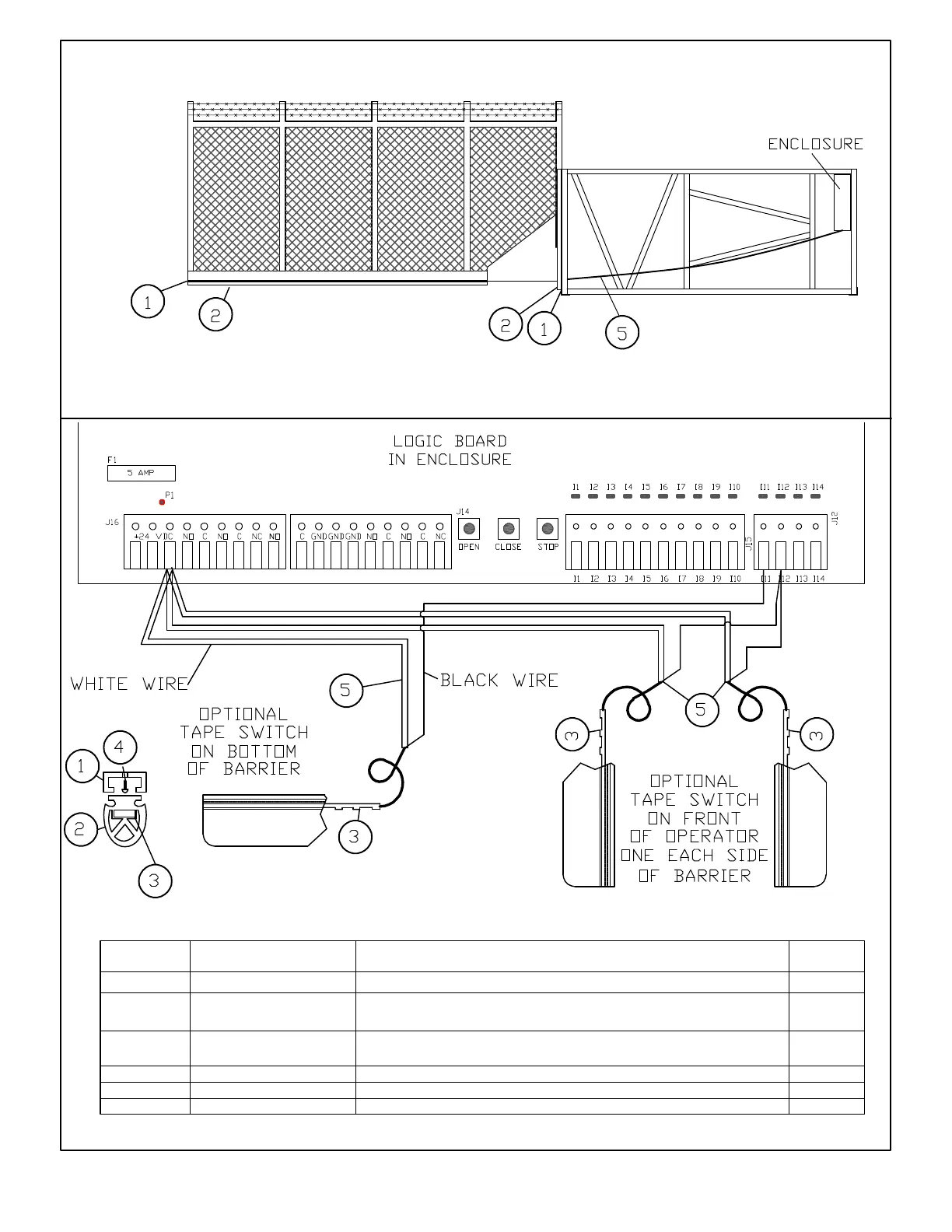

CONNECT CLOSING TAPE SWITCH BLACK WIRE TO TERMINAL I11
CONNECT OPENING TAPE SWITCH BLACK WIRE TO TERMINAL I12
NOTE: FOR THE STANDARD EDGE TO FUNCTION PROPERLY
THE MONITORED OBSTRUCTION EDGE MUST BE DISABLED.
THIS FUNCTION IS IN THE TIMING AND OPTIONS MENU.
SAFETY RESPONSES SUB MENU.
MONITORED OBSTRUCTION EDGE (DISABLED / ENABLED)
