Description
Montage Heizungsseitig
Cooling
10 15 20 25 30 35
10
15
20
25
30
5
[°C]
R410A
[°C]
40
45
0
Heating supply temperature
Ambient air temperature

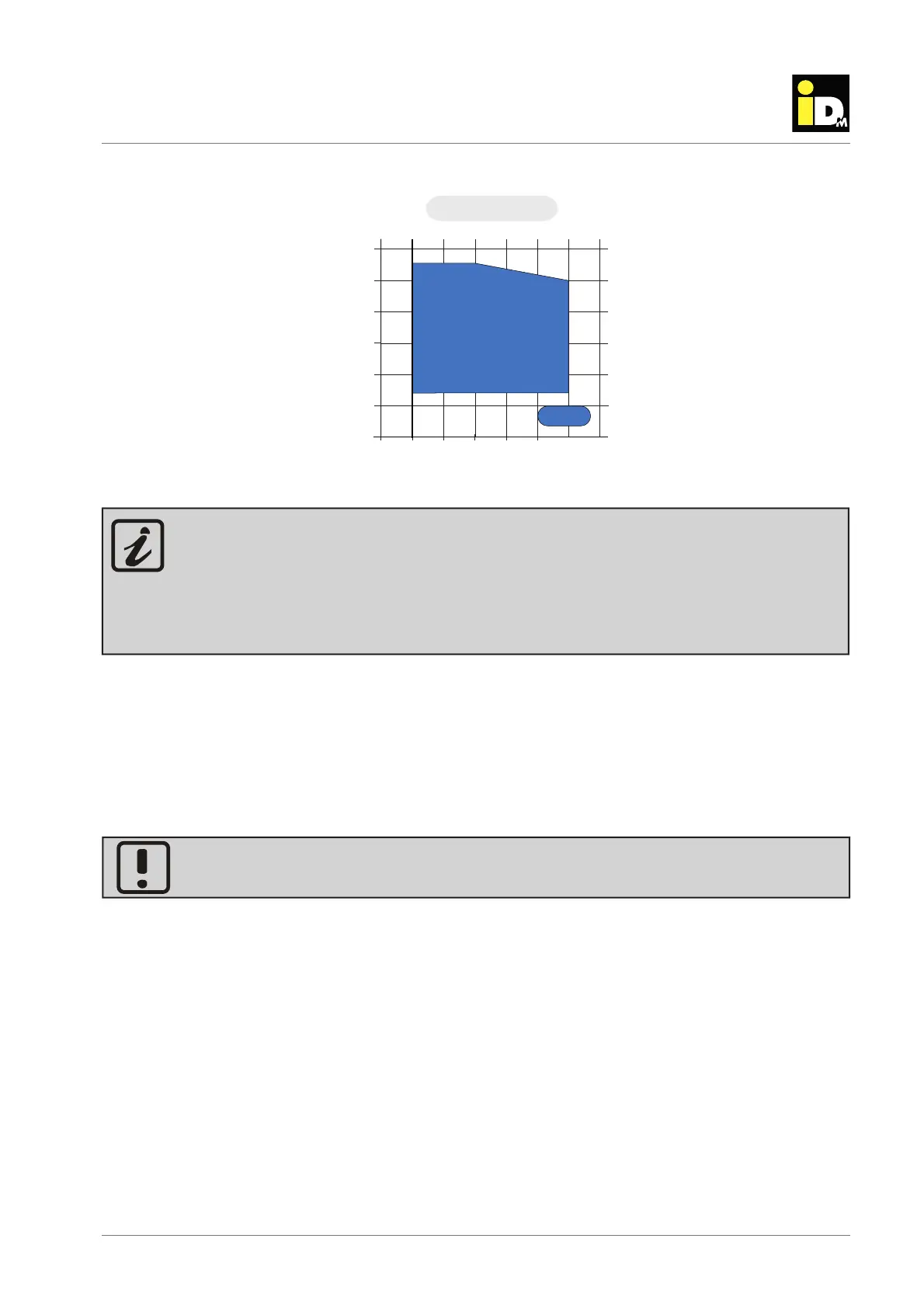

iPump A 3-11 - Cooling
The maximum power of the iPump A can be limited with the NAVIGATOR 2.0 controller.
The minimum heat pump fl ow temperature is the lowest temperature that the heat pump can produce
(depending on the heat source temperature) and is then switched off at this value. Due to the hydrau-
lic spread across the heat pump, the control-related switching hysteresis and the humidity-dependent
dew point, it is not possible to reach this temperature in the cooling circuit. The lowest possible
management temperature depends on the hydraulic design, the confi guration and the actual dew
point on site and is at least 5 K above the minimum heat pump fl ow temperature.
