10.4. Installing an external current anode
When installing an external current anode in the buf-
fer of iPump A and iPump T, it must be observed that
the cables are correctly conected:

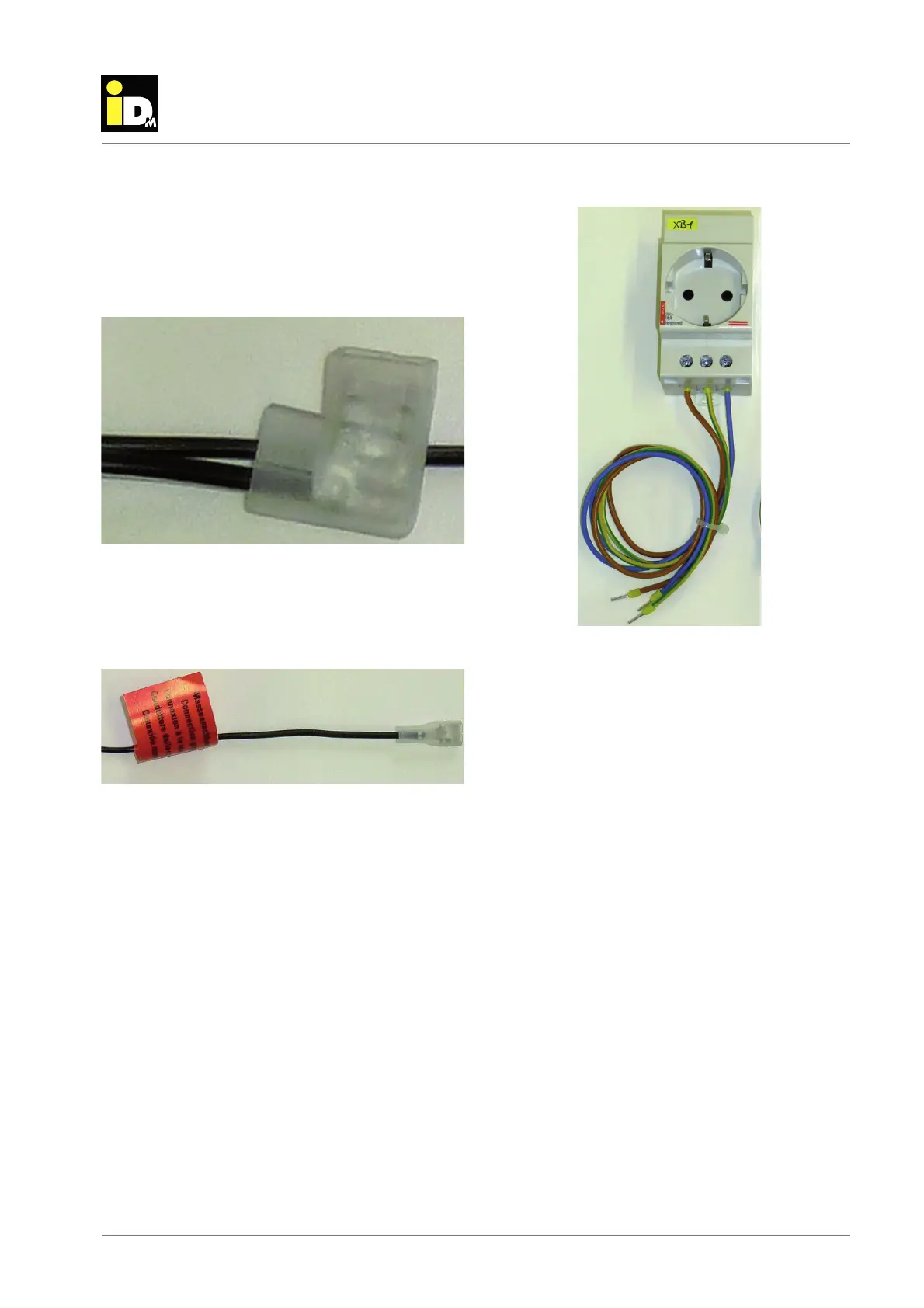

Blade receptacle 90° must be connect to the anode.
The blade receptacle straight must be connected to
the buff er. On the cable itself there is an indication
that it is the ground connection.
The electrical connection of the external current
anode is carried out according to the enclosed wiring
diagram.
The distribution socket must be connected to the
wiring diagram of the heat pump. the socket can be
mount in the electrical box.
Further information to the anode are described in the
delivered operating instruction of the anode.
