iDM iPUMP A 2-7 - Dimensions Indoor Unit; Connections Indoor Unit

(C) IDM ENERGIESYSTEME GMBH
Installation instructions iPump A 2-7, 3-11
9
description
Monta
g
e Heizun
g
sseiti
g










 


Bottom view
Side view / right
Front view
Side view / left

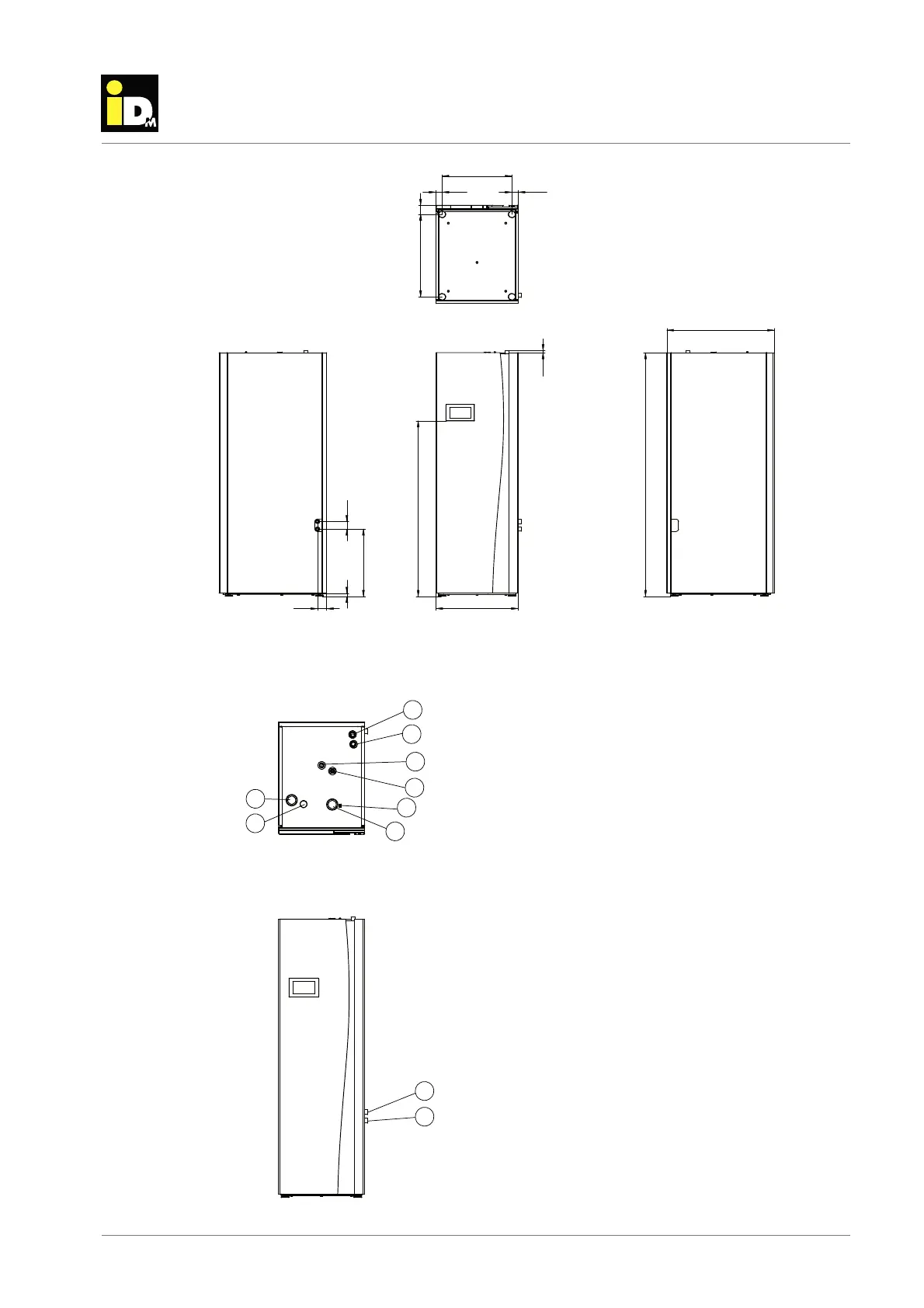

3.3. Dimensions indoor unit
9
10
2
1
3
4
5
6
7
8
Bottom view
Front view
1 Heating supply 1“
2 Heating return 1“
3 Hot water connection 3/4“
4 Cold water connection 3/4“
5 Inlet cables of sensors
6 LAN-Connection
7 Circulation connection 3/4“
8 Cable inlet main current
9 Refrigerant pipe - liquid line 12 mm
10 Refrigerant pipe - hot gas line 16 mm
3.4. Connections indoor unit
