FGR006 FINGERPRINT & PROXIMITY READER

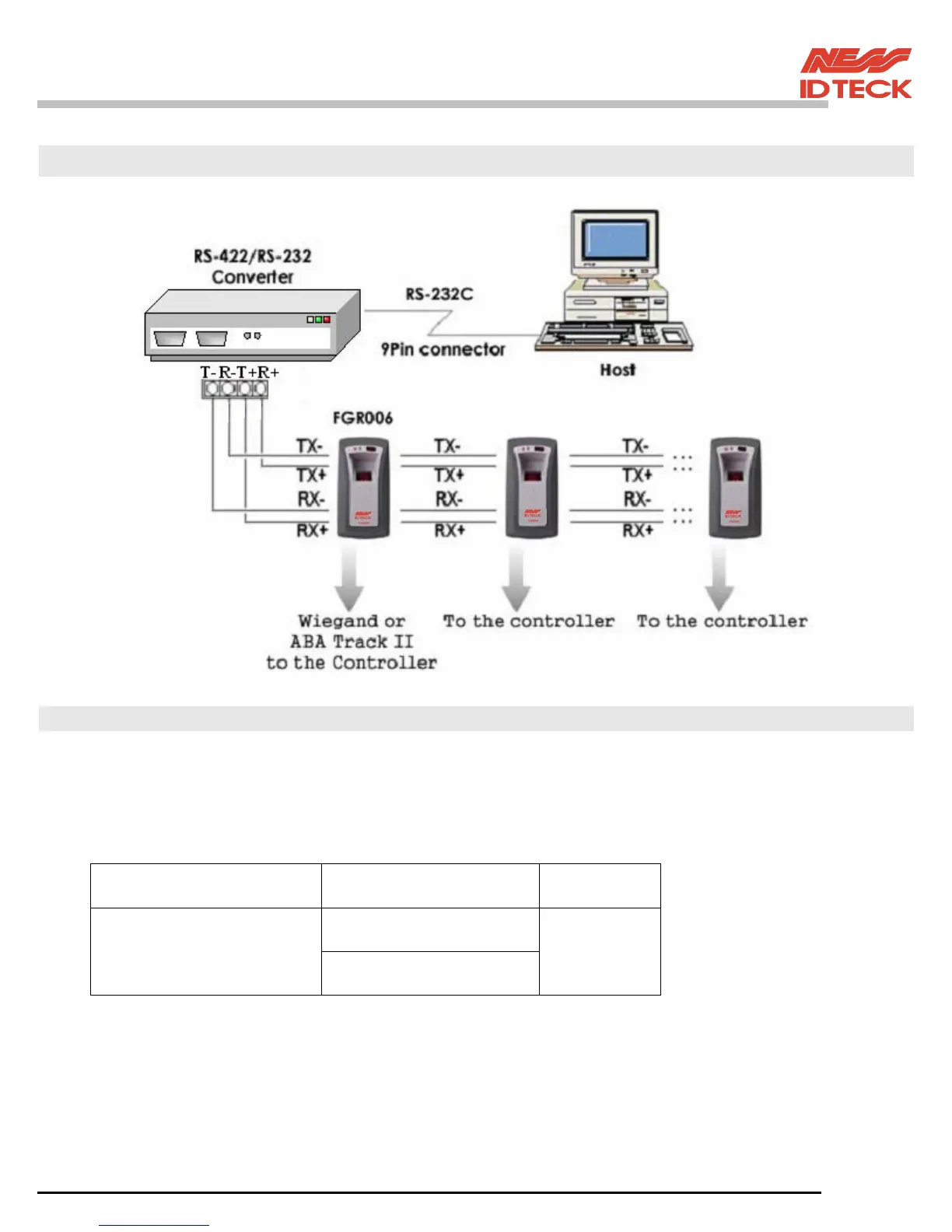

4.5 Network Connection of FGR006
4.6 Check Points and Tip
4.6.1 Recommended cable type and permissible length of cable
• Need thicker wire if you connect the reader with high current consumption.
Description Cable Specification
Maximum
Distance
Belden #9512, 22 AWG
4 conductor, shielded Reader (Power and Data)
Reader -> ACU
Belden #9514, 22 AWG
8 conductor, shielded
150m
