FGR006 FINGERPRINT & PROXIMITY READER

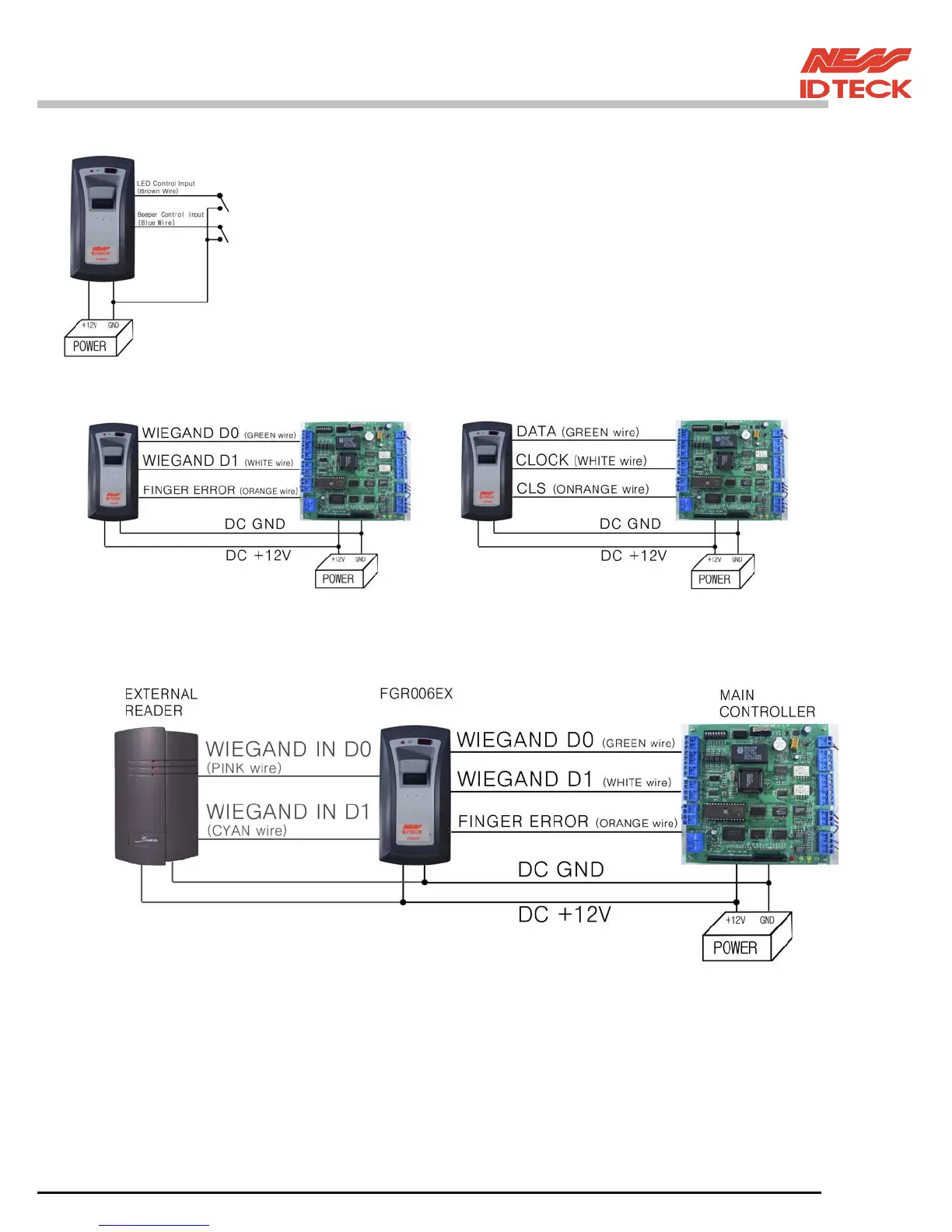

4.7.2 Input Connection (Only available with RS232/RS485 communication)
- A green LED turn on if the short does LED CONTROL INPUT wire with the
GND
- The beep sound appears if the short does BEEPER CONTROLER INPUT wire
with the GND.
4.7.3 Output Connections
[26bit Wiegand Output] [ABA Track II Output]
4.7.5 External Reader Connection (FGR006EX Only)
To Next Page
