FGR006 FINGERPRINT & PROXIMITY READER
6.5 External RS232 Serial Jack (OPTION 2)
This function allows the FGR006 to connect directly to a PC (or Notebook) via RS232 for fingerprint
registrations.

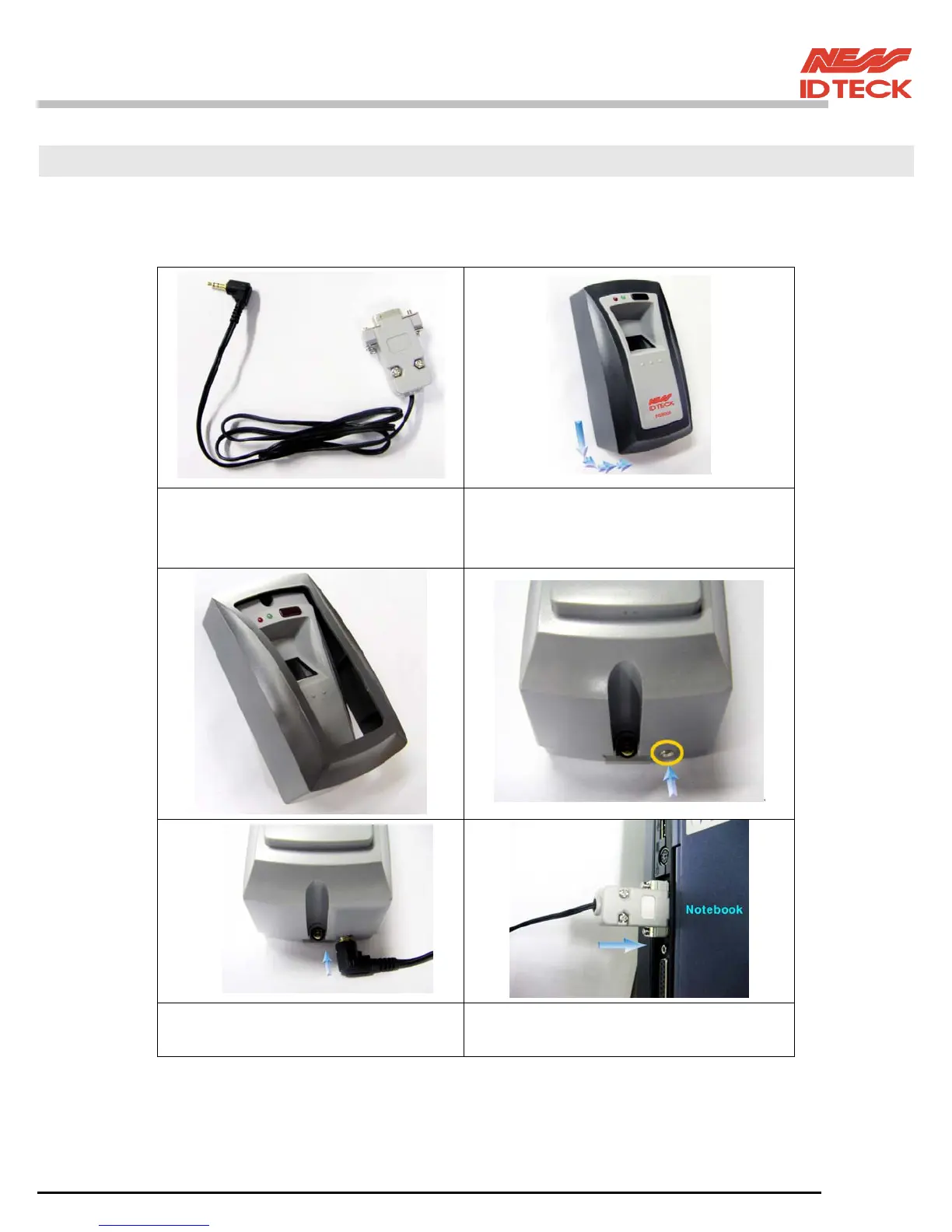

It is used to connect with FGR006
and RS232 port of PC (or
notebook).
It uncover TOP CASE in FGR006.
Extract after you pull TOP CASE
bottom of FGR006
It insert RS232 serial jack at bottom
of FGR006
It connects a d-sub connector with
RS232 port of PC (or notebook).
