IDTECK FGR006 - Product Explanation; Panel Description; Colour Coded & Wiring Table

101-091 6
FGR006 – Version 3.0
IDTeck
–
FGR006 FINGERPRINT & PROXIMITY READER
3.2. PRODUCT EXPLANATION

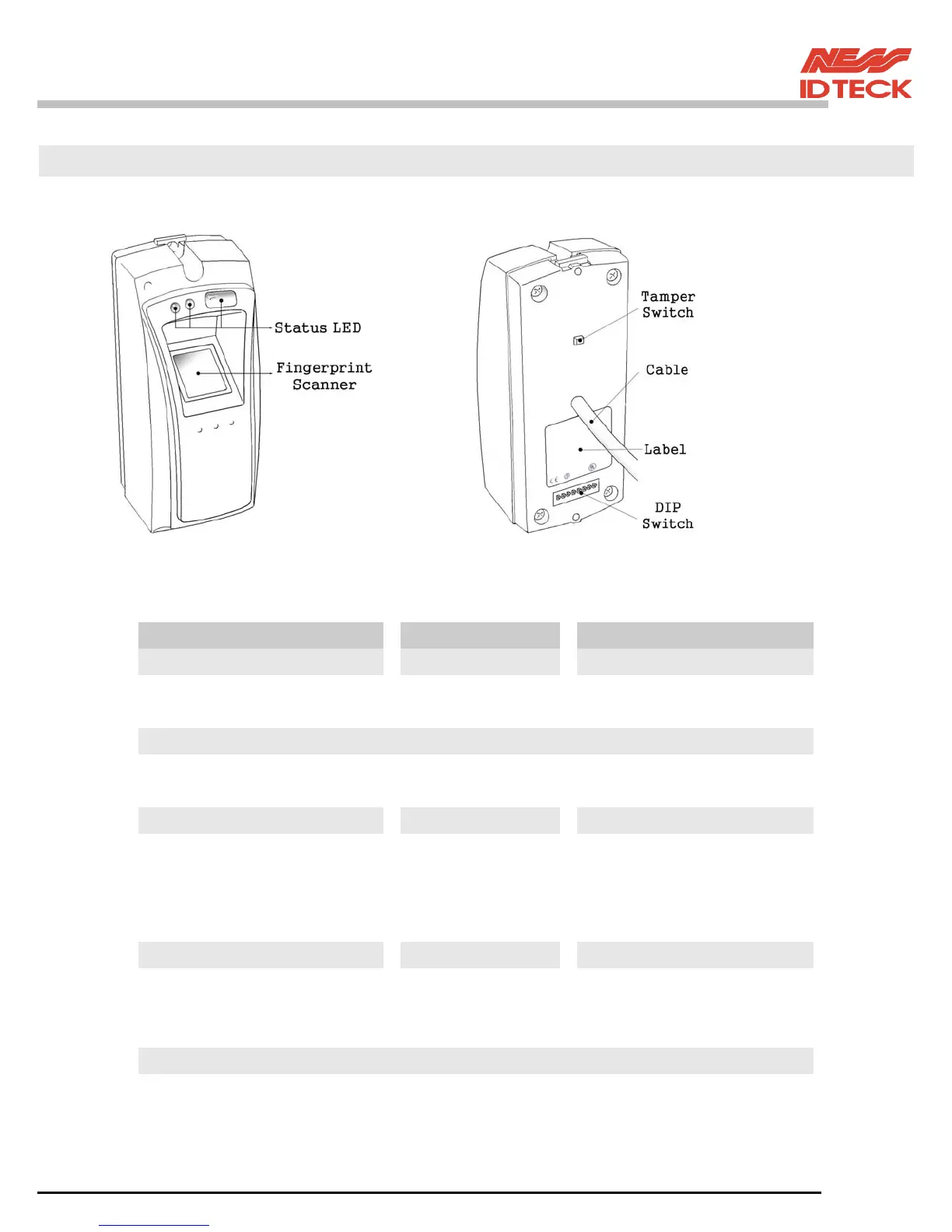

3.2.1 PANEL DESCRIPTION
3.2.2 COLOUR CODED & WIRING TABLE
IO PORT NAME SIGNAL NAME COLOUR CODE
POWER
Main Power (+12V) +12V RED
Power Ground GND BLACK
INPUT (Only available with RS232/RS485 Communication)
LED Control Input LED BROWN
Beeper Control Input BEEP BLUE
WIEGAND OUTPUT
Wiegand Data-0 DATA0 GREEN
Wiegand Data-1 DATA1 WHITE
* Finger Error ERROR ORANGE
* Note that the Finger Error output is only available with Wiegand output.
ABA TRACK II OUTPUT
Card Present CLS Orange
Clock CLK White
Data DATA Green
RS232 COMMUNICATION PORT
RS232 RX RXD Grey
RS232 TX TXD Yellow
