2 - TECHNICAL INFORMATION MASTER 880MP E-volution
2 - Pag. 8 / 19

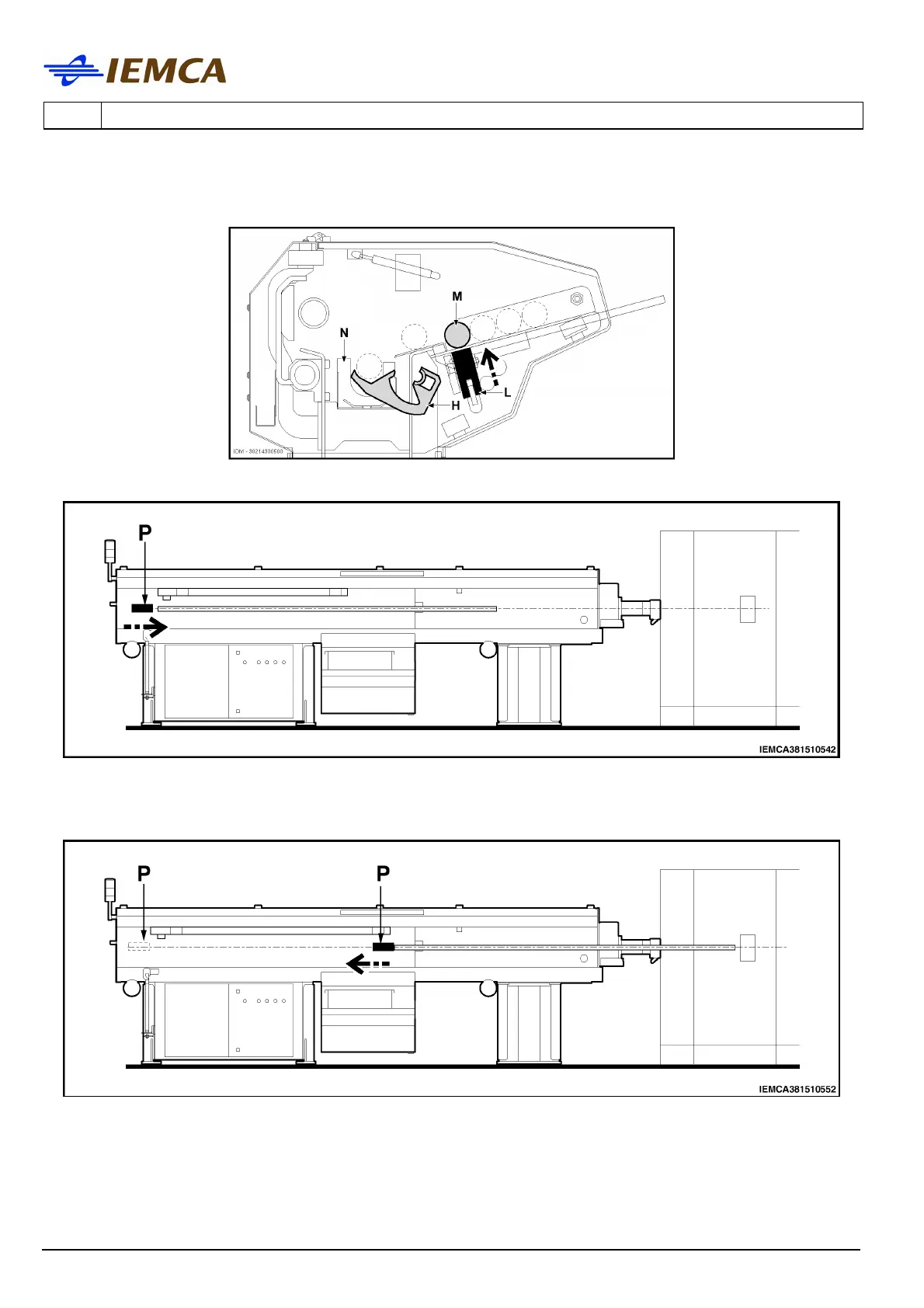

Bar lifts (L) load bar (M) that falls into lower guides (N) with the help of levers (H).
The 1st feeding carriage (P) stroke begins.
When the small pusher truck (P) completes its stroke, the required space has been created for
bar-pusher insertion.
The small pusher truck executes its return stroke.
