2 - TECHNICAL INFORMATION MASTER 880MP E-volution
GB
2 - Pag. 9 / 19

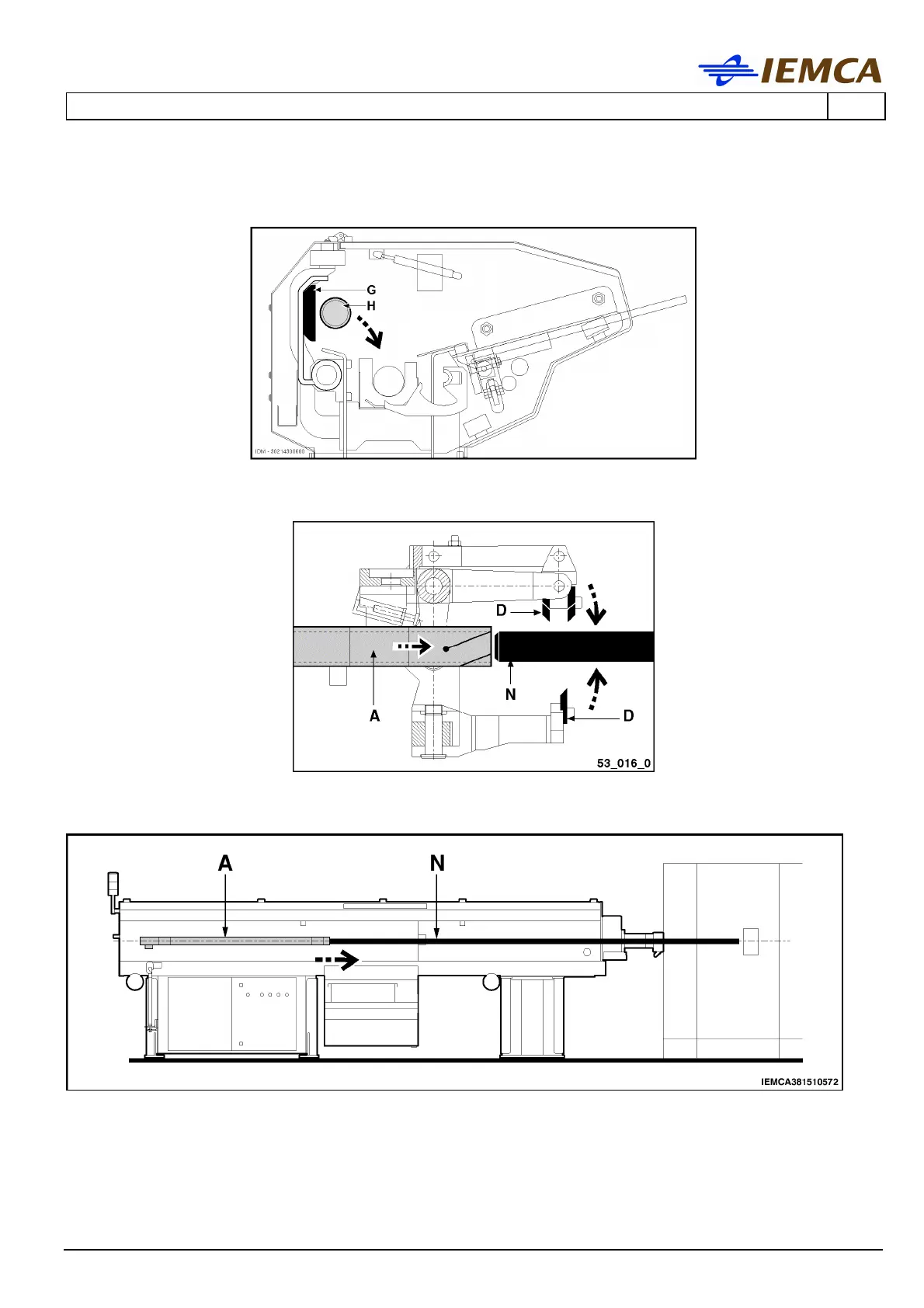

The upper guides (G) are closed; the bar-pusher (H) is positioned along the spindle axis.
The clamps (D) close, the bar-pusher (A) moves forwards; the bar (N) is inserted into the bar-
pusher collet.
The bar-pusher (A) and bar (N) execute their facing stroke. A new automatic work cycle is
started.
