4 - HANDLING AND INSTALLATION MASTER 880MP E-volution
4 - Pag. 6 / 17
4.4 INSTALLATION OF THE BAR FEEDER - INTRODUCTION
Before carrying out feeder installation, check lathe stability; make sure that it is firmly fastened
to the ground and with a horizontal spindle axis.

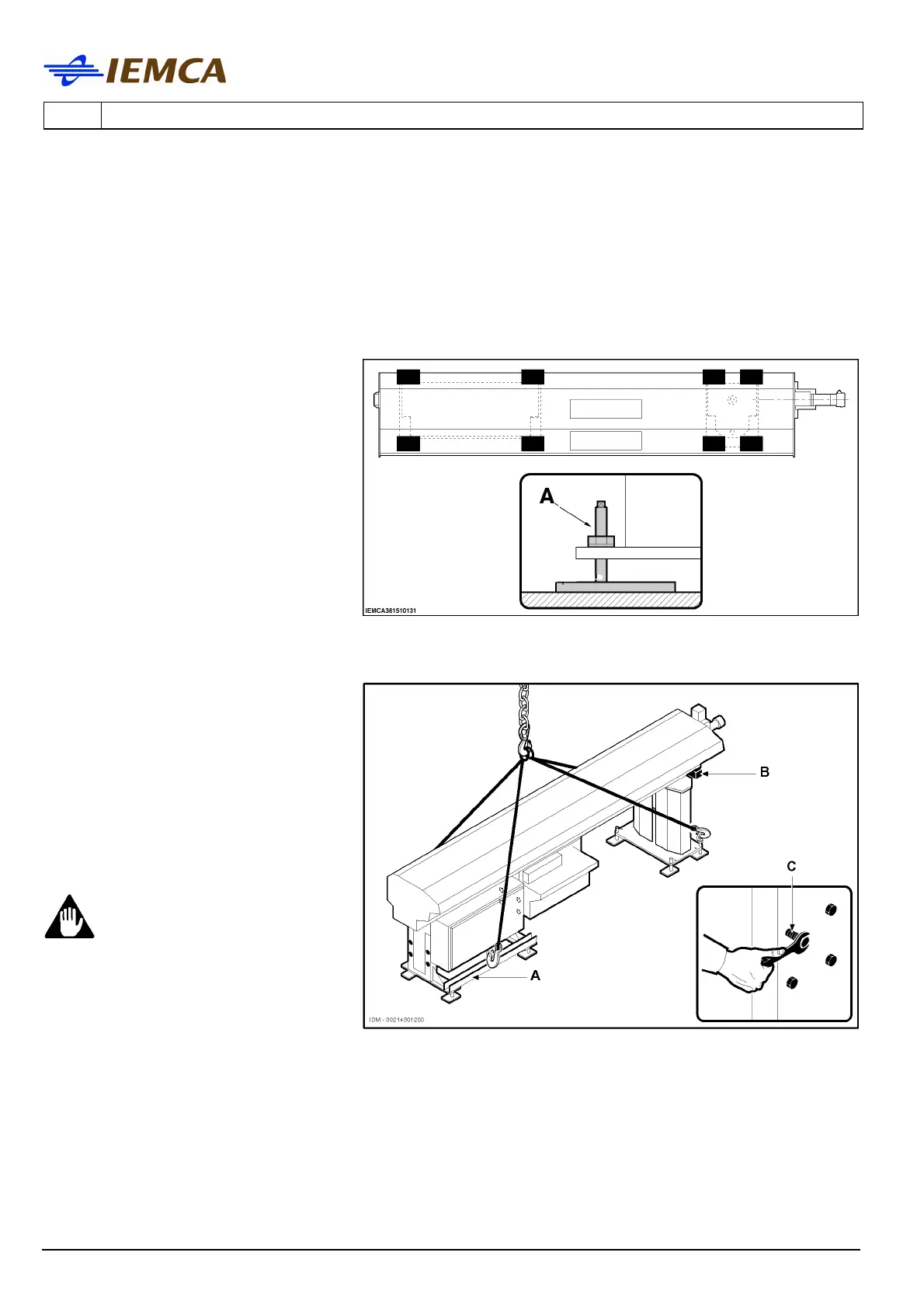

4.4.1 Support plates and feet - Installation
• Position the feeder next to the
lathe.
• Keep it lifted and install the
plates (A).
4.4.2 Height - Adjustment
The feeder is normally factory-
preset to have a working axis
height adjusted to lathe height.
However, if feeder height needs
adjustment, proceed as follows:
• stretch the lifting belts and
remove screws (C) in the front
and rear bases;
CAUTION-PRECAUTION:
during the lifting and
installation phases pay
special attention to the
section housing the motor
(B).
• lift or lower the bar feeder according to necessary value X, see table.
