5 - ADJUSTMENTS AND SETTING-UP MASTER 880MP E-volution
GB
5 - Pag. 11 / 14

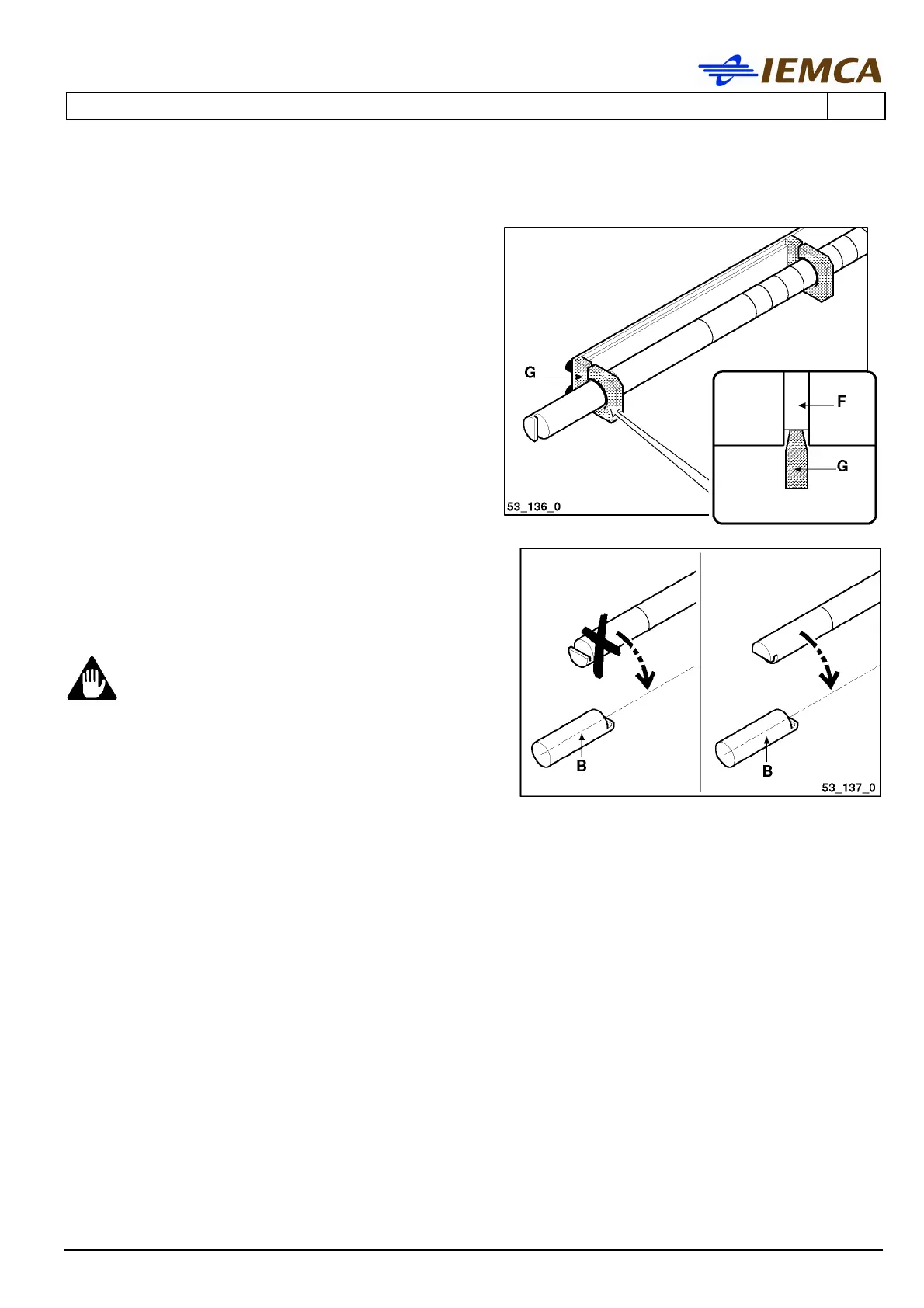

• Insert bar pushers into two supports.
Properly position bar pusher axially, so that
(F) groove matches (G) support.
• Properly position bar pusher radially so that in
next phase of upper guides locking, matching
between bar pusher and (B) 1st feeding carriage
occurs correctly.
CAUTION:
The above mentioned positioning has to
be assured. Therefore during set-ups or
maintenance operations, if bar pusher is
struck involuntarily, it has to be
correctly repositioned.
