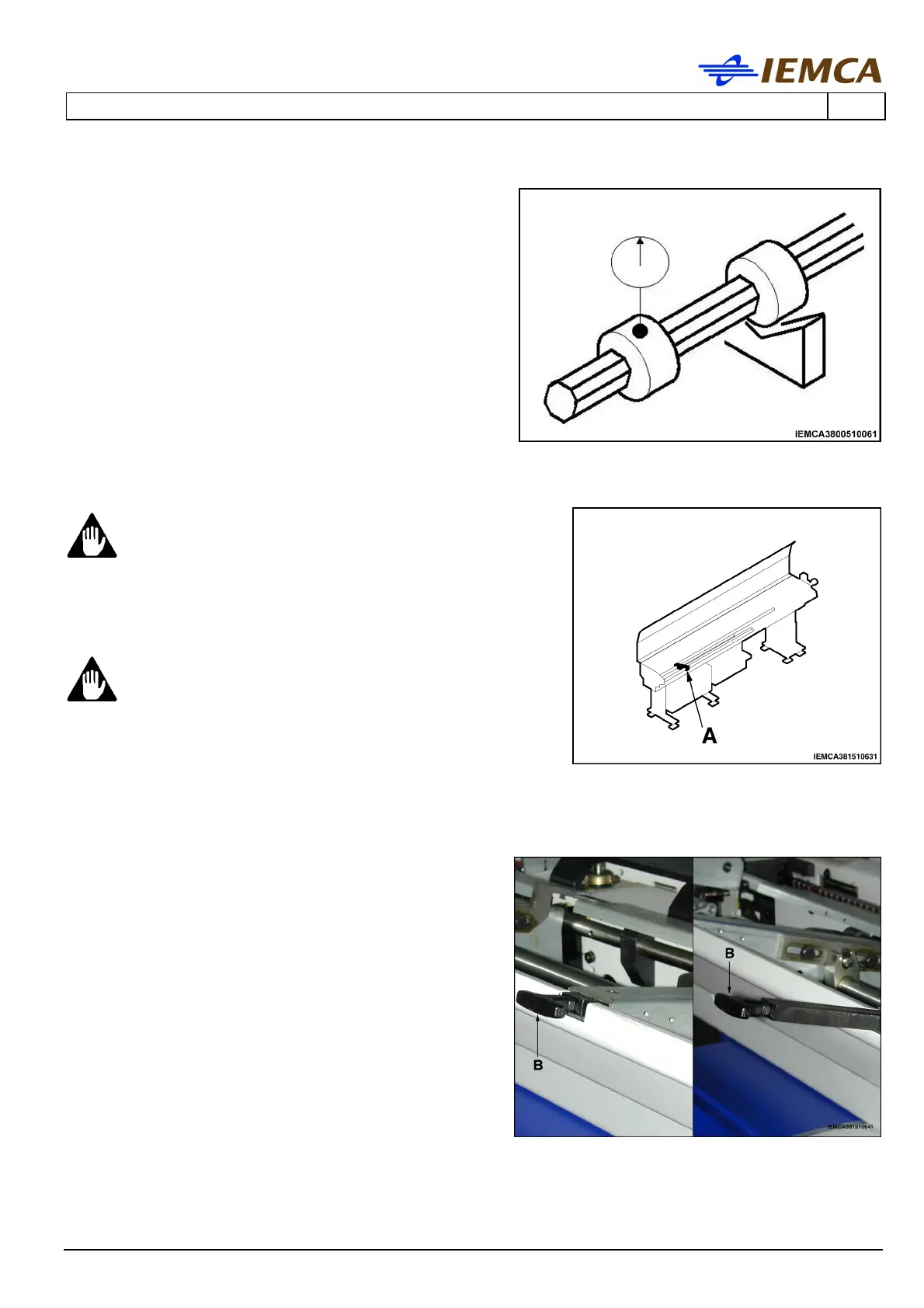

6 - USE AND OPERATION MASTER 880MP E-volution
GB
6 - Pag. 11 / 17
Hexagonal, square and section bars
For non-round bars, insert some bushings on the
bar to be controlled.
Position 2 bushings on the 2 V-supports.
In that case, the measurement can be carried out
as shown in the figure.
Rotate the bar on itself and carry out the
measurement on a bushing external to the two V-
supports.
6.6 BAR MAGAZINE - LOADING
CAUTION:
do not manually lift loads heavier than those
mentioned by the regulations in force; ask for
an assistant's help, if needed.
CAUTION:
make use of the personal protections
recommended by the regulations in force.
• Open the top cover.
• Position the bars against plate A and close the cover.
To facilitate bar loading, supports B can be
extracted from the magazine.
