ifm Operating Instructions IO-Link Master with Profinet interface StandardLine 8 Ports IP 65 / IP 67 (AL1102) 2017-05-31
Configuration
>
8.1.1 Supported configuration options
22408
The AL1102 can be configured using the following options:
Parameter setting software LR DEVICE (version 1.1.0.87 or higher) (art. no.: QA0011/QA0012)
Profinet projection software Siemens STEP 7 (version 5.5 or higher, service pack 4)
Profinet projection software Siemens TIA portal
>
8.1.2 Connection possibilities
12742
Via the two Profinet interfaces X21 and X22, the AL1102 can be simultaneously connected with the
Profinet control level (PLC) and the IT infrastructure level (monitoring/parameter setting). The following
connection possibilities exist:
>

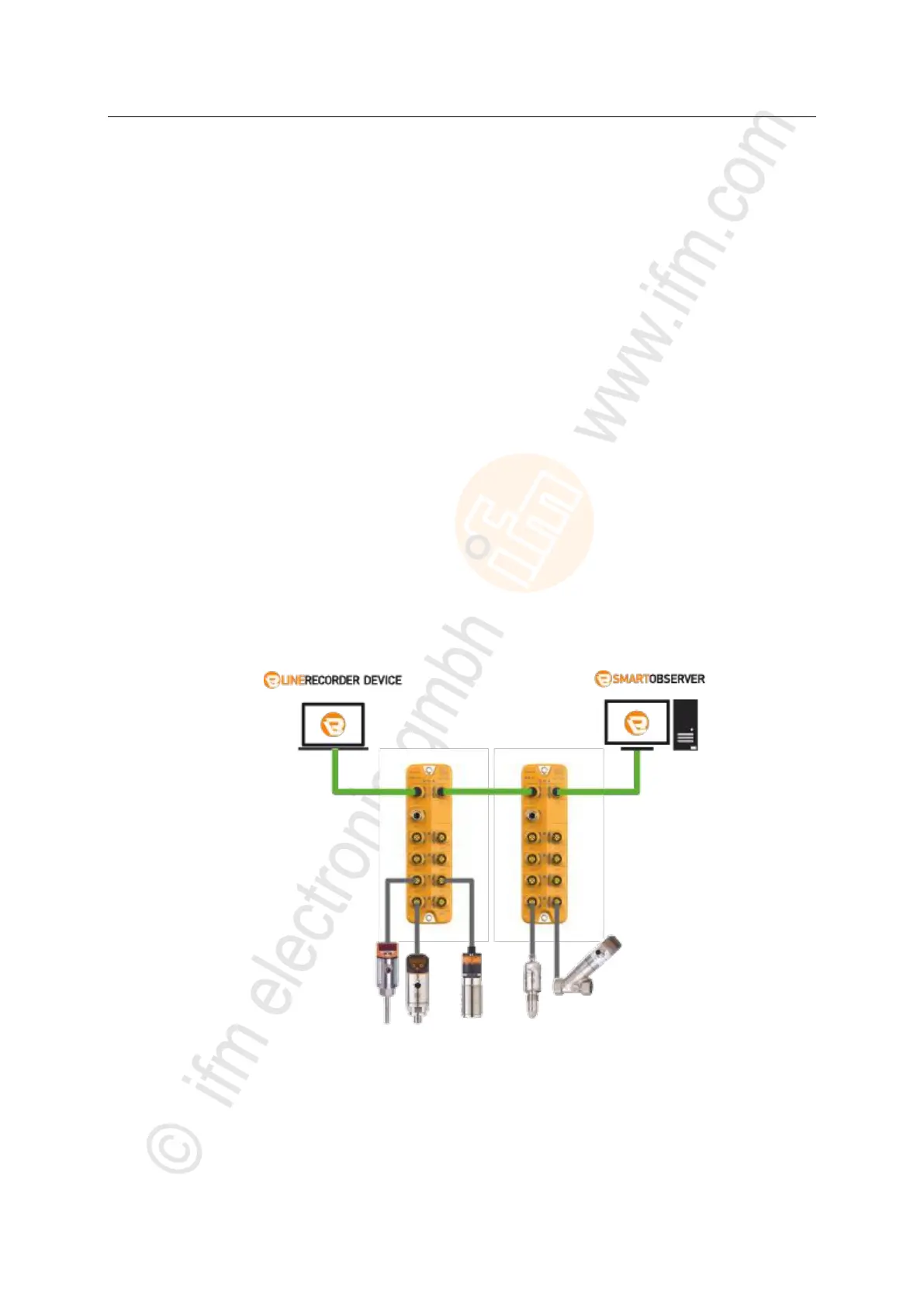

Operation without Profinet connection
4364
Operation as independent IO-Link master with connected IO-Link devices. As an option, several
IO-Link masters can be coupled via the Profinet interfaces. If necessary, the IO-Link masters can be
coupled with the IT infrastructure via industrial Ethernet in order to enable monitoring of the process
data of the connected IO-Link devices.
IO-Link master: LR DEVICE
IO-Link device: LR DEVICE
