Configuration
>
Operation with Profinet connection (without LR DEVICE)
7396
Operation of the IO master as Profinet IO device. As an option, several IO-Link masters can be
coupled via the Ethernet interfaces X21 and X22. The complete monitoring of the process data and
processing of alarms takes place via Profinet mechanisms.
Parameter setting
 IO-Link master: Profinet projection software
 IO-Link device: Profinet projection software (acyclic services)
Monitoring:
Profinet projection software

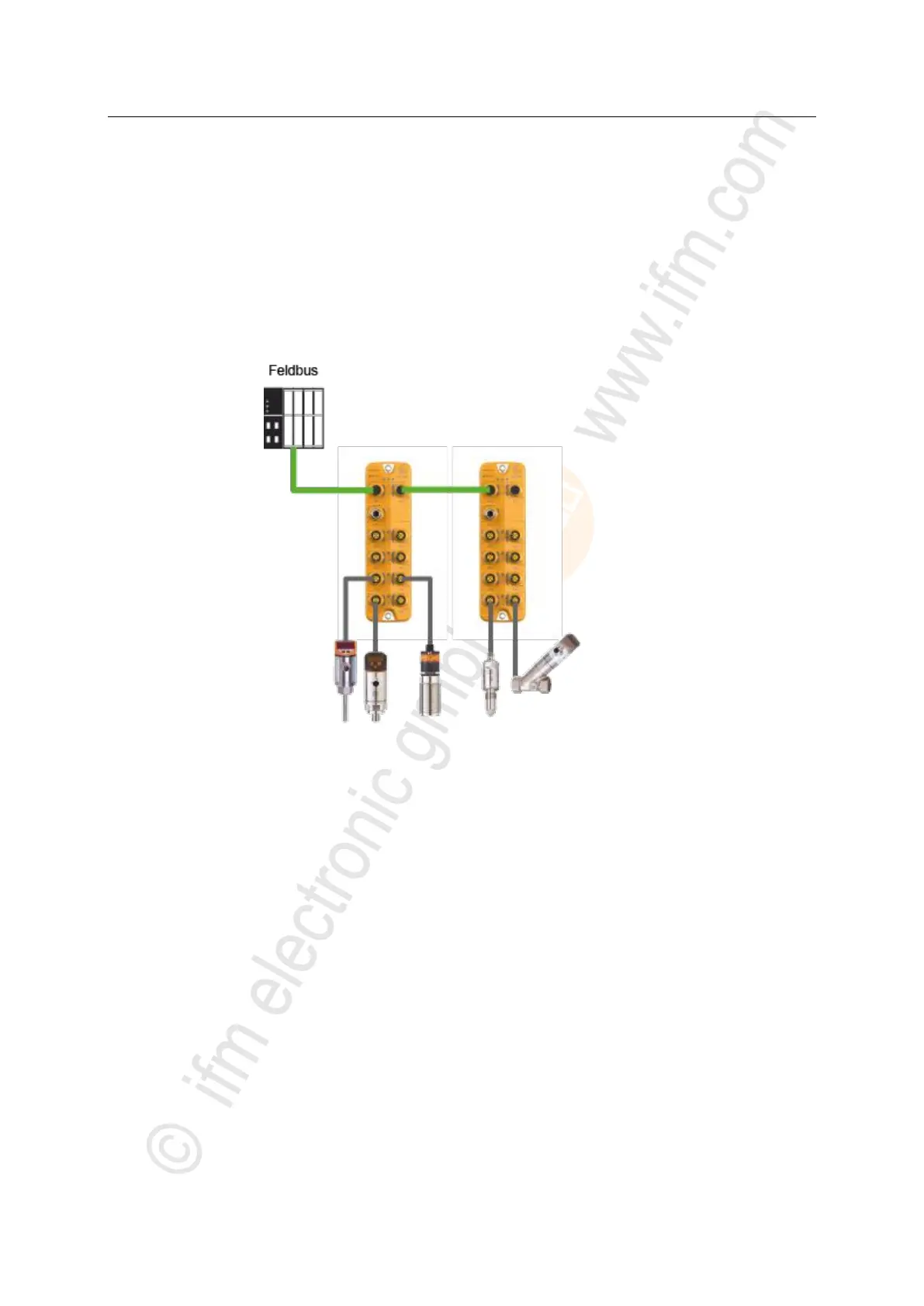

Topology (example):
