Configuration
>
Operation with Profinet connection and LR DEVICE/LR SmartObserver
7398
The AL1102 can be connected via the two Ethernet interfaces X21 and X22 simultaneously with the
Profinet control level (PLC) and the IT infrastructure level (monitoring/parameter setting).
Parameter setting
 IO-Link master: LR DEVICE and/or Profinet projection software
 IO-Link device: LR DEVICE and/or Profinet projection software
Monitoring:
LR SmartObserver and/or Profinet projection software

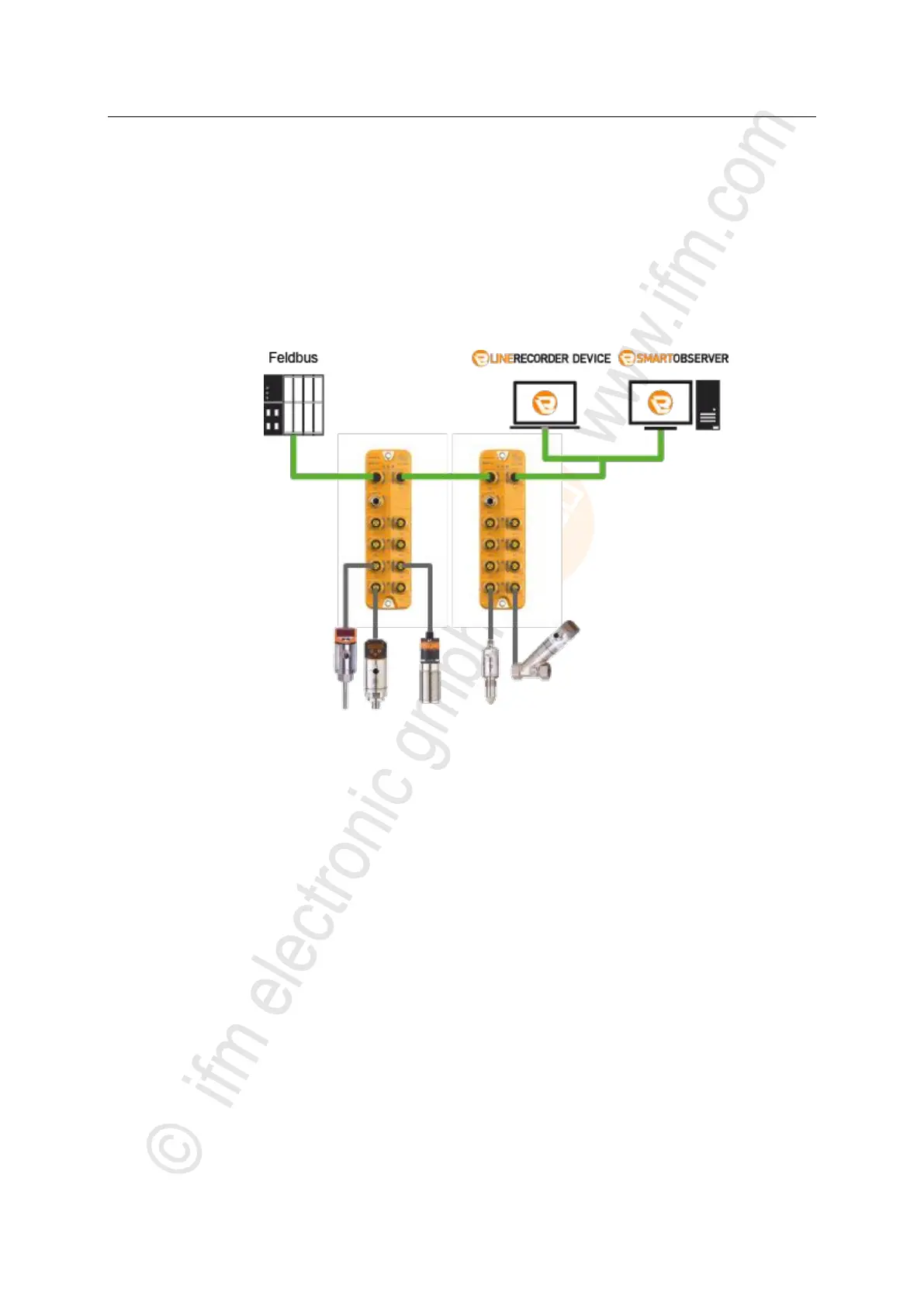

Topology (example):
