English
10

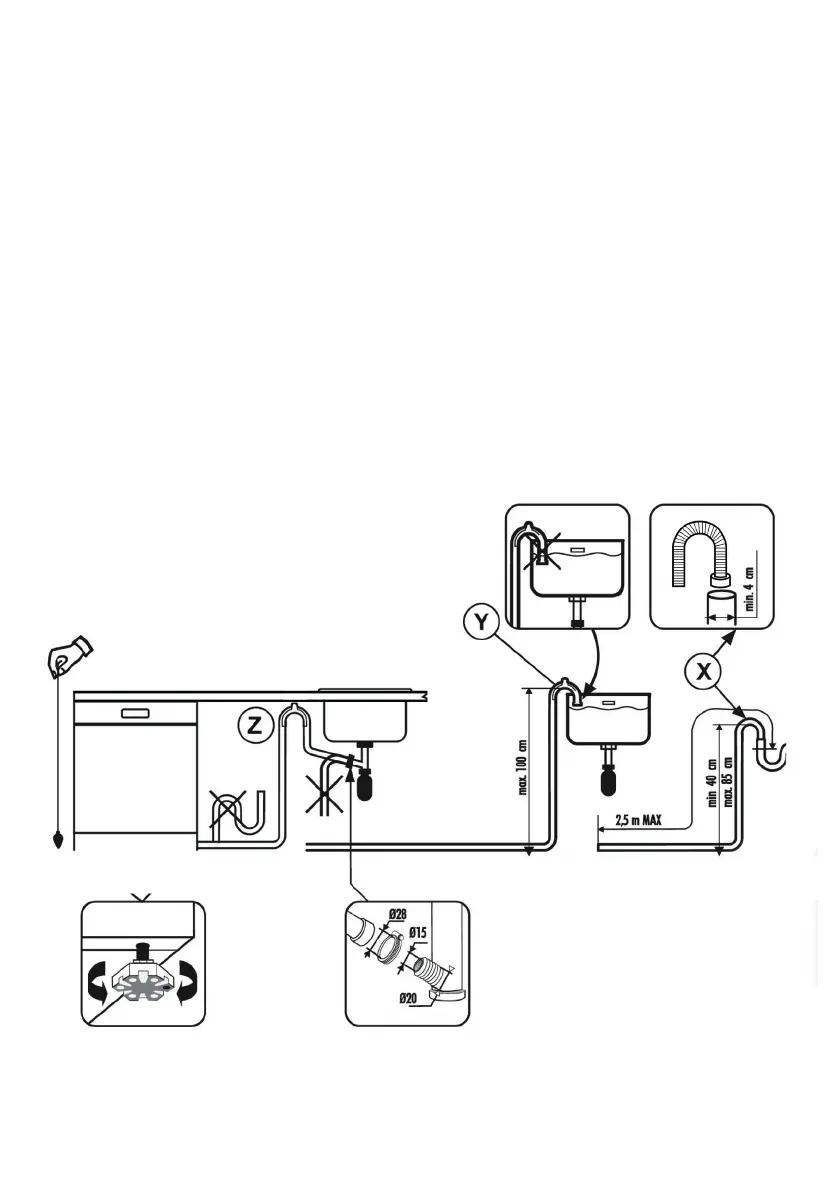

Connecting the outlet hose
• The outlet hose should discharge into a stand-
pipe, making sure that there are no kinks (g.4).
•
level and it must have an internal diameter of at
least 4 cm.
• (g.4X).
If necessary the hose can be extended up to 2,5
m, provided that it is kept at a maximum height
available from the After Sales Service Centre.
• The hose can be hooked over the side of the sink,
but it must not be immersed in water, in order to
prevent water from being syphoned back to the
machine when this is in operation (g.4Y).
• When installing the appliance under a worktop
the hose pipe clamp must be attached to the
wall in the highest possible position under the
worktop (g.4Z).
• Check that there are no kinks in the inlet and
outlet hoses.
(g.4)
