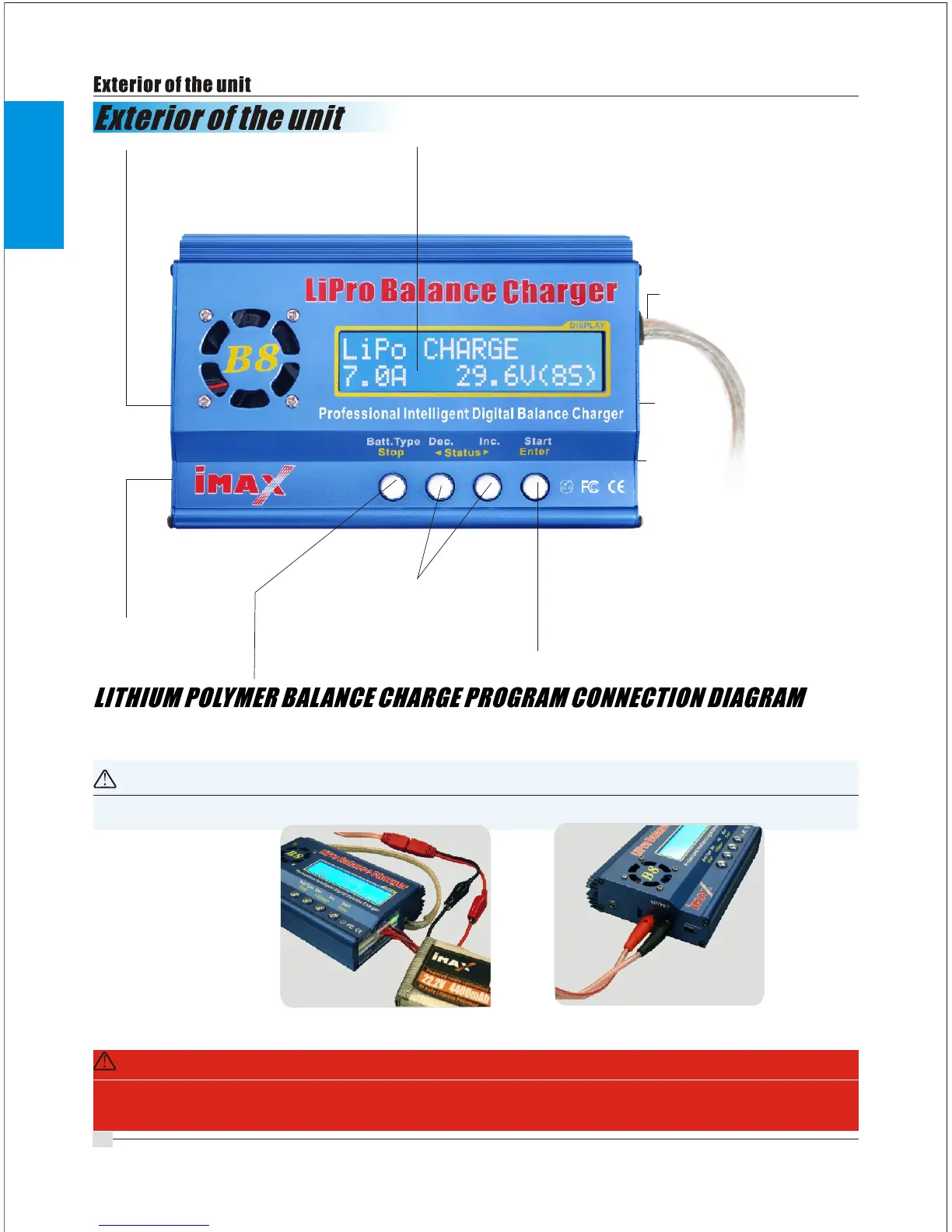

Charging
lead
connector
(4mm banana female)
Temperature
sensor port
Batt type/stop
To select
main program
To stop
the operation
Dec/inc
To selest
sub program
To alter
the value
LCD screen
(16chr.x2lines)
Input
power
cable
(dc11~18v)
USB
port
Individual
cell
connector
port
Start/enter
To resume
or start
the operation
This diagram shows the correct way to connect your battery to the B6charger while
charging in the balance charge program mode only.
WARNING:
Failure to connect as shown in this diagram will damage this charger.
03
The main battery leads must be connected along with the balance lead connector as
shown before charging your battery .
WARNING:
If using crocodile clips as shown in above diagram, make sure they are unable to
touch Together!
