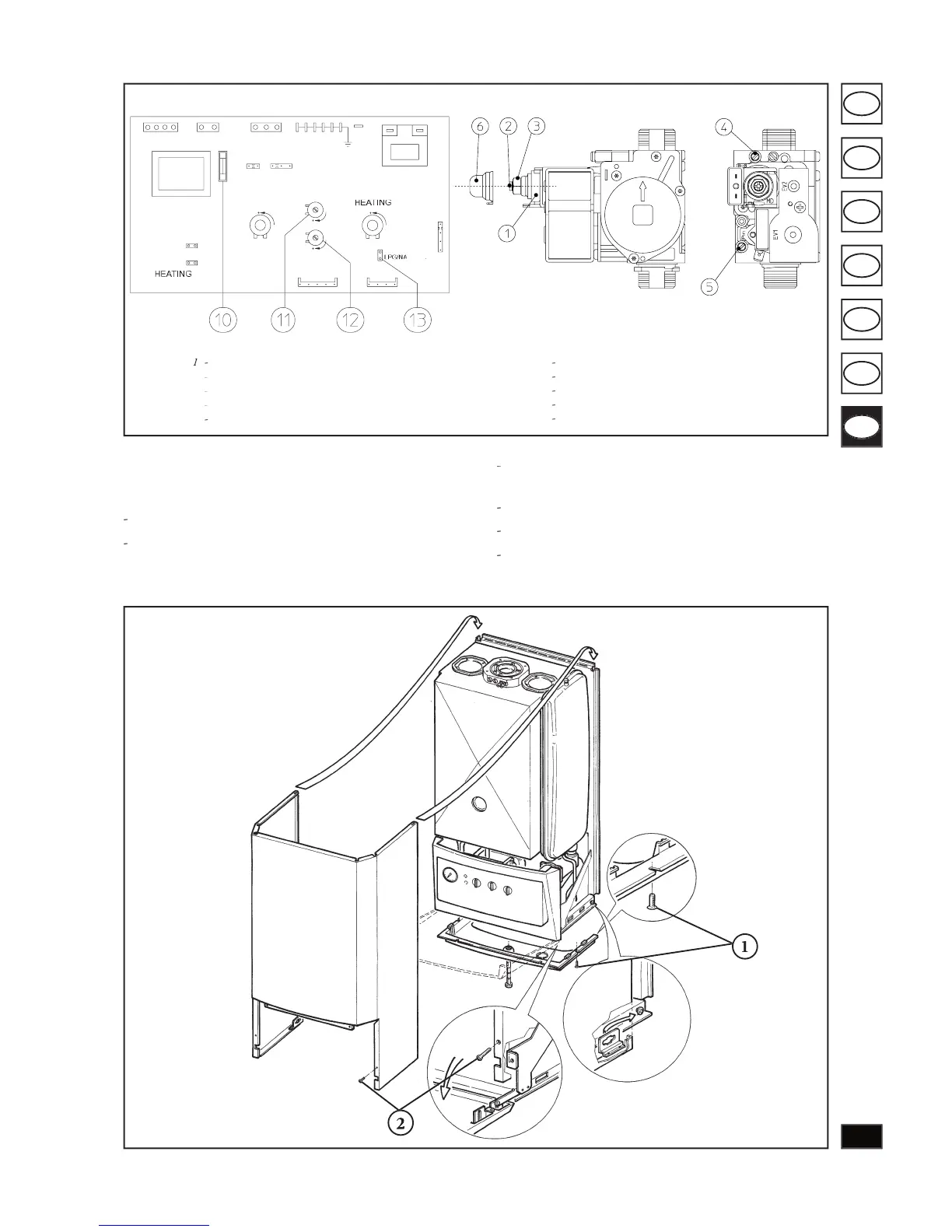

Casing disassembly.
To facilitate boiler maintenance the casing can be disassem-
bled as follows:
-
Remove the lower  lling valve.
-
Remove the lower cover by slackening the two screws
(1).
-
Slacken the 2  xing screws on the control panel and tilt
forward to open.
-
Slacken the two casing  xing screws (2).
-
Detach the rear boiler panel as shown in the  g ure.
-
Pull the casing forwards and up at the same time (see  gure)
to detach from the upper hooks.
845 gas valve for Eolo Mini S
Eolo Mini S electronic card
Key:
1
-
Coil
2
-
Minimum power adjustment screw
3
-
Maximum power adjustment screw
4
-
Gas valve outlet pressure point
5
-
Gas valve inlet pressure point
6
-
Protection hood
10
-
2A fuse
11
-
Slow lighting adjustment trimmer
12
-
Heating adjustment trimmer
13
-
Jumper for operation with natural gas/LPG.
DOMESTIC OFF
TIMER
DOMESTIC
TURAL
GAS
TURAL GASTURAL
