Magis Combo Plus - Magis Combo
Plus V2 Internal Unit installation
operations.

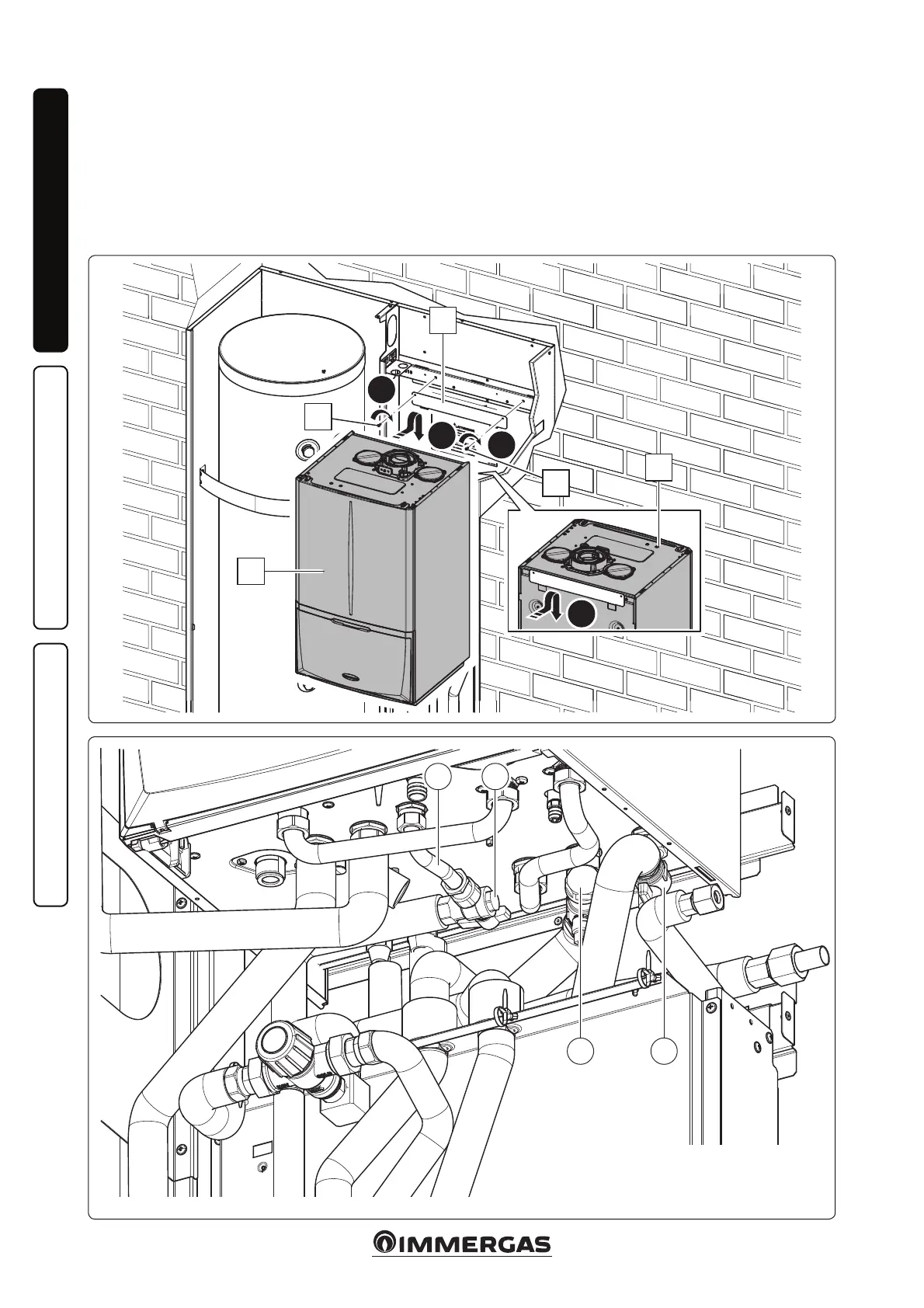

• Tighten the bracket (H) to the special
upper cross member with screws (F).
• Hang the Internal Unit (I) on the
bracket (E) installed previously,
(Fig. 16).
16
• Make the hydraulic connection be-
tween the storage tank (a), single zone
hydronic unit (c) and Magis Combo
Plus - Magis Combo Plus V2 Internal
Unit (I), as shown in Fig. 17 and 18.
Perform the connections in sequence,
starting from the pipes near the rear
wall up to those near the installer,
remembering to insert the special
gaskets supplied.
N.B. (Fig. 18): remove the grid and the
square gas cock from the Magis Combo
Plus - Magis Combo Plus V2 Internal
Unit. Turn the shut-o valves on the
Internal Unit return by 40° to connect it
to the relative pipe in the accessory kit.
17
Key:
1-2 - Supplied in the kit
3-4 - Present in Magis Combo Plus -
Magis Combo Plus V2
