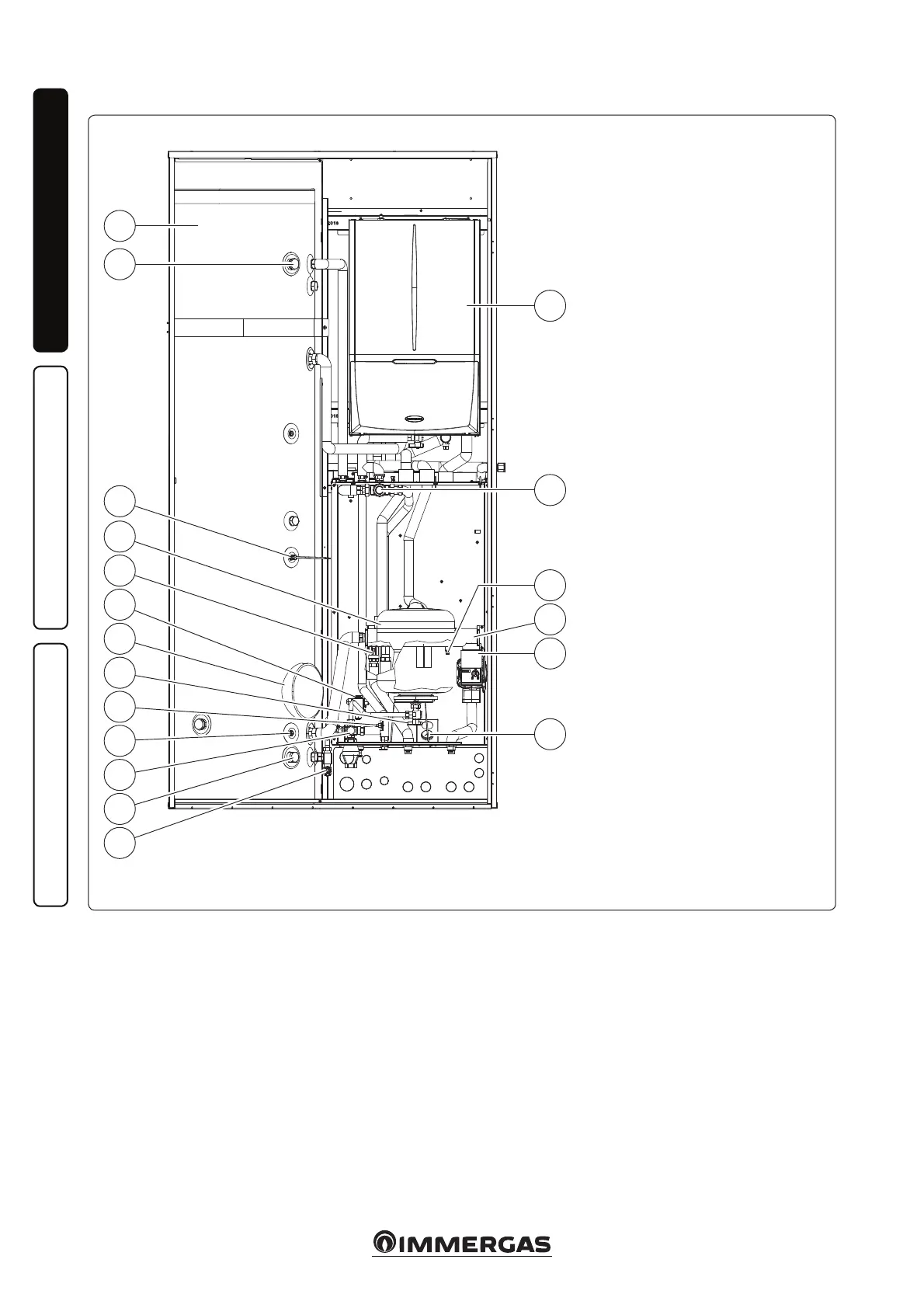

1.17 MAIN COMPONENTS SUPER TRIO WITH MAGIS PRO  MAGIS PRO V2 INTERNAL UNIT.
Key:
1 - Storage tank draining cock / tap
2 - Sacricial anodes
3 - 8 bar safety valve
4 - Solar probe (optional)
5 - Antifreeze thermostat
6 - Domestic hot water vessel
shut-o cock
7 - Storage tank ange
8 - Antifreeze kit connection box
9 - One-way valve
10 - 16 l domestic hot water
expansion vessel
11 - DHW probe
12 - Storage tank / Cylinder
13 - Magis Pro - Magis Pro V2
Internal Unit
14 - DHW circuit mixing valve
15 - Manifold draining valves
16 - Hydraulic manifold
17 - Direct zone pump
18 - Direct zone 1 ow temperature
thermometer
