C83C93
X
C93
14 - IE
INSTALLERUSER
MAINTENANCE TECHNICIAN
1.14 DUCTING OF FLUES OR
TECHNICAL SLOTS.
Ducting is an operation through which by the
introduction of one or more relevant pipes,
a system is realised for the evacuation of the
combustion products of a gas appliance made
up from the coupling of an existing or new
ducting pipe with a chimney, ue or technical
slot (also in new buildings) (Fig. 1-27). Ducting
requires the use of ducts declared to be suitable
for the purpose by the manufacturer, following
the installation and user instructions, provided
by the manufacturer and the requirements of
the standards.
Immergas ducting system. e Ø60 rigid and
Ø80 exible “Green Range” ducting systems must
only be used for domestic use and with Immergas
condensing boilers.
In any case, ducting operations must respect
the provisions contained in the standard and in
current technical regulations; in particular, the
declaration of conformity must be compiled at
the end of work and on commissioning of the
ducted system. e instructions in the project
or technical report must likewise be followed, in
cases provided for by the standard and current
technical regulations. e system or components
of the system have a technical life complying with
current standards, provided that:
- it is used in average atmospheric and
environmental conditions, according to
current regulations (absence of combustion
products, dusts or gases that can alter the
normal thermophysical or chemical conditions;
existence of temperatures coming within the
standard range of daily variation, etc.).
- Installation and maintenance must be
performed according to the indications
supplied by the manufacturer and in
compliance with the provisions in force.
- e max. possible length of the Ø60 exible
ducting vertical section is equal to 22 m. is
length is obtained considering the complete
Ø80 exhaust terminal, 1m of Ø80 pipe in
exhaust, two 90° Ø80 bends at boiler outlet.
- e max. possible length of the Ø80 exible
ducting vertical section is equal to 30 m.
This length is obtained considering the
complete exhaust terminal, 1m of Ø80 pipe
in exhaust, two 90° Ø80 bends at boiler outlet
for connecting to the ducting system and two
direction changes of the exible tube inside the
ue/technical slot.
- e max. possible length of the Ø60 exible
ducting vertical section is equal to 30 m. is
length is obtained considering the complete
Ø80 exhaust terminal, 1m of Ø80 pipe in
exhaust, two 90° Ø80 bends at boiler outlet.
1.15 CONFIGURATION TYPE B
23
OPEN CHAMBER AND FORCED
DRAUGHT FOR INSIDE.
e appliance can be installed inside buildings in
B
23
mode; in this eventuality, all technical rules
and national and local regulations in force, must
be complied with.
- Type B open chamber boilers must not be
installed in places where commercial, artisan
or industrial activities take place, which use
products that may develop volatile vapours
or substances (e.g. acid vapours, glues, paints,
solvents, combustibles, etc.), as well as dusts
(e.g. dust deriving from the working of
wood, coal nes, cement, etc.), which may be
damaging for the components of the appliance
and jeopardise functioning.
- In type B
23
conguration, the boilers must not
be installed in bedrooms, bathrooms or in
bedsitters.
- The installation of appliances in B
23
conguration is only recommended outdoors
(in a partially protected place) or in places that
are not lived in and which are permanently
ventilated.
For the installation it is necessary to use the cover
kit found in paragraph 1.9.
1.16 FLUE EXHAUST TO FLUE/CHIMNEY.
Flue exhaust does not necessarily have to be
connected to a branched type traditional ue.
e ue exhaust, for boiler clots installed in C
configuration, can be connected to a special
LAS type multiple ue. For B
23
congurations,
exhaust is only allowed into individual flue
or directly into the external atmosphere via a
relevant terminal. e multiple ues and the
combined ues must also only be connected to
type C appliances of the same type (condensing),
having nominal heat inputs that do not dier by
more than 30% less with respect to the maximum
that can be attached and powered by the same
fuel. e thermo-uid dynamic features (ue
ow rate, % of carbon dioxide, % humidity etc...)
of the appliances attached to the same multiple
ues or combined ues, must not dier by more
than 10% with respect to the average boiler
attached. Multiple and combined ues must be
specially designed according to the calculation
method and requirements of the standards, by
professionally qualied technical sta. Chimney
or ue sections for connection of the exhaust
pipe must comply with requisites of technical
standards in force.

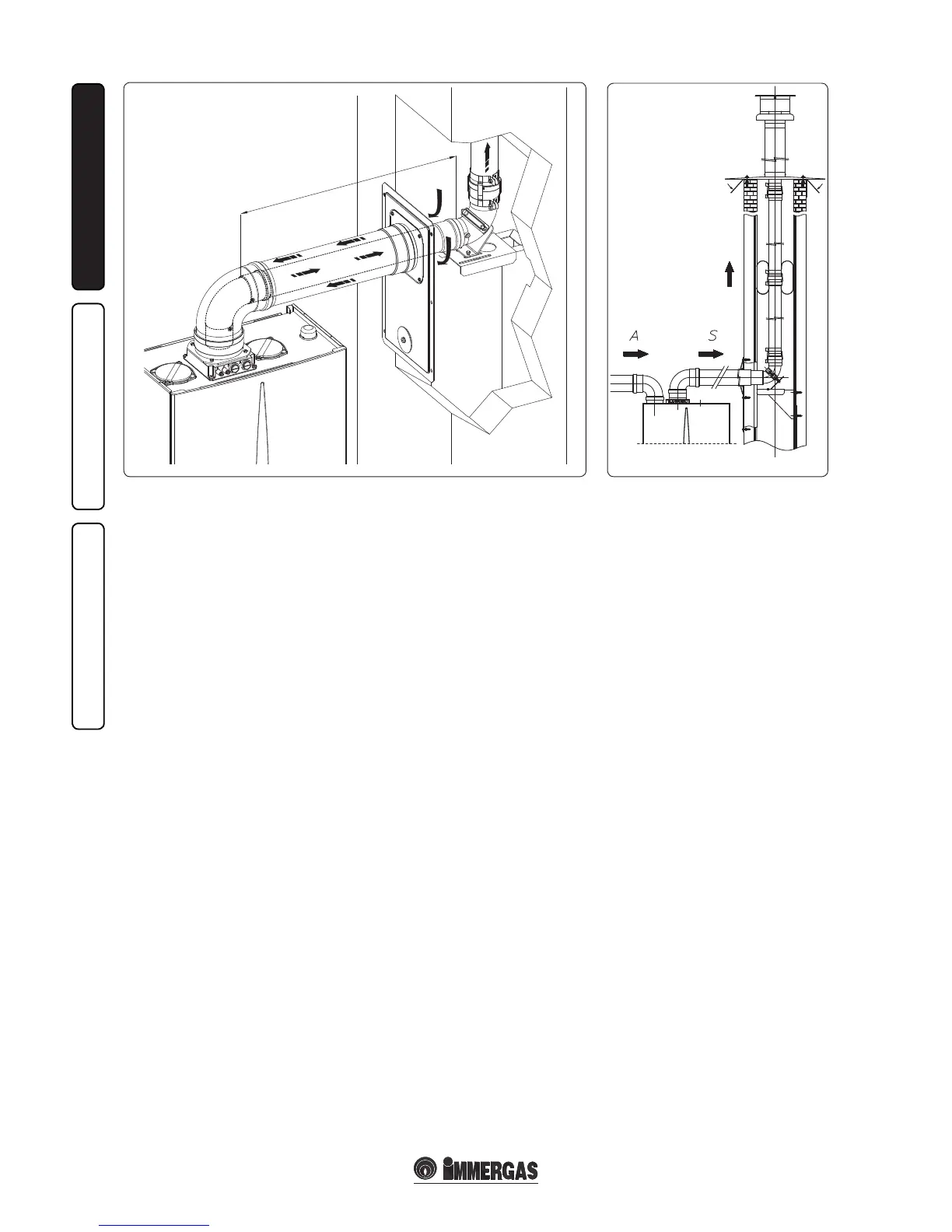

Fig. 1-27
C83C93
Fig. 1-26
