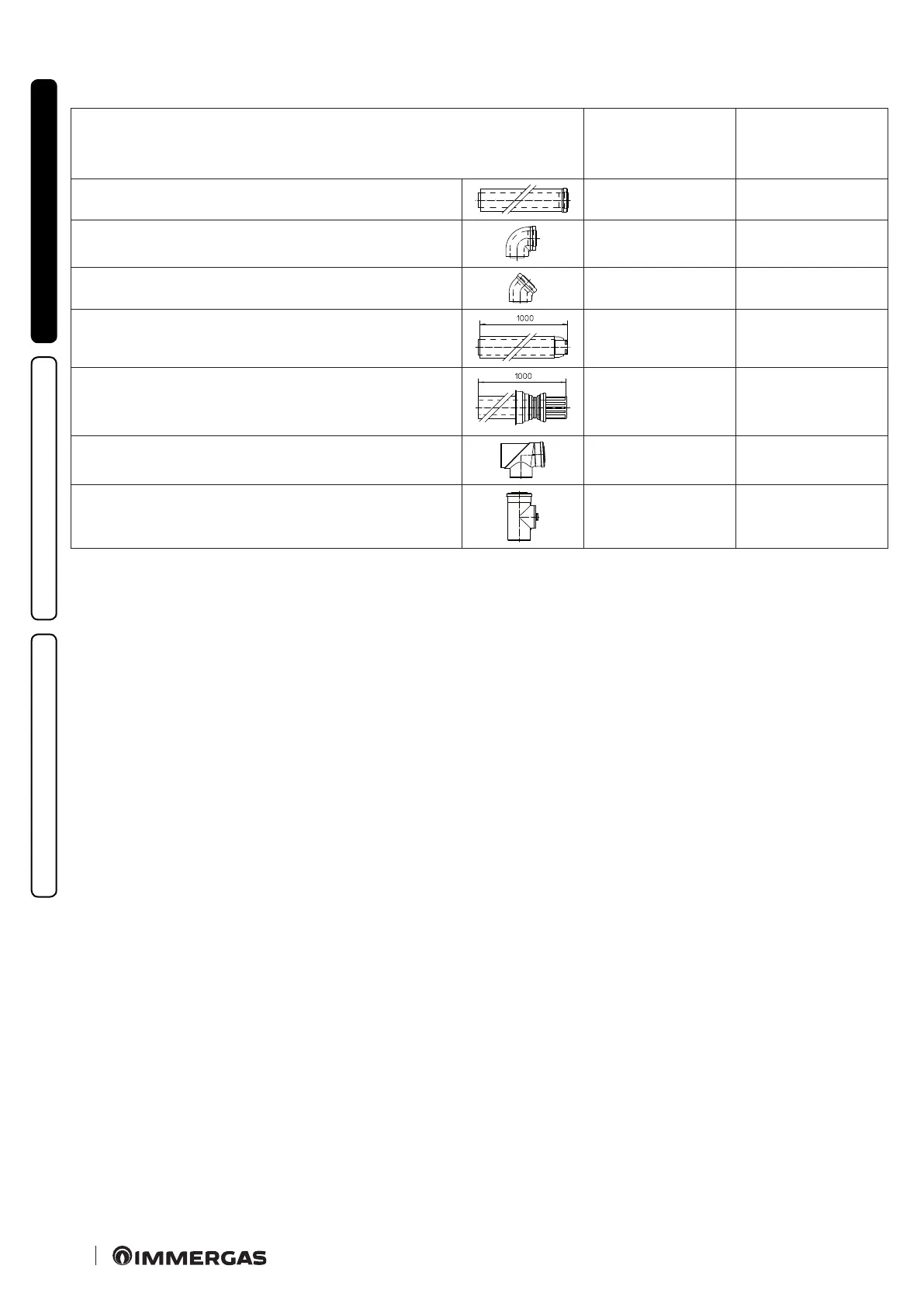

1.13 TABLES OF RESISTANCE FACTORS AND EQUIVALENT LENGTHS “GREEN SERIES”.
TYPE OF DUCT
Resistance
Resistance
(R)
Length
in m of concentric pipe
Ø 80/125
Concentric pipe 80/125 Ø m 1 2.1 1
Ø 80/125 90° concentric bend 3.0 1.4
Ø 80/125 45° concentric bend 2.1 1
Terminal complete with concentric horizontal intake-exhaust
Ø 80/125
2.8 1.3
Terminal complete with concentric vertical intake-exhaust
Ø 80/125
3.6 1.7
90° concentric bend Ø 80/125 with inspection 3.4 1.6
Stub pipe with inspection Ø 80/125 3.4 1.6
