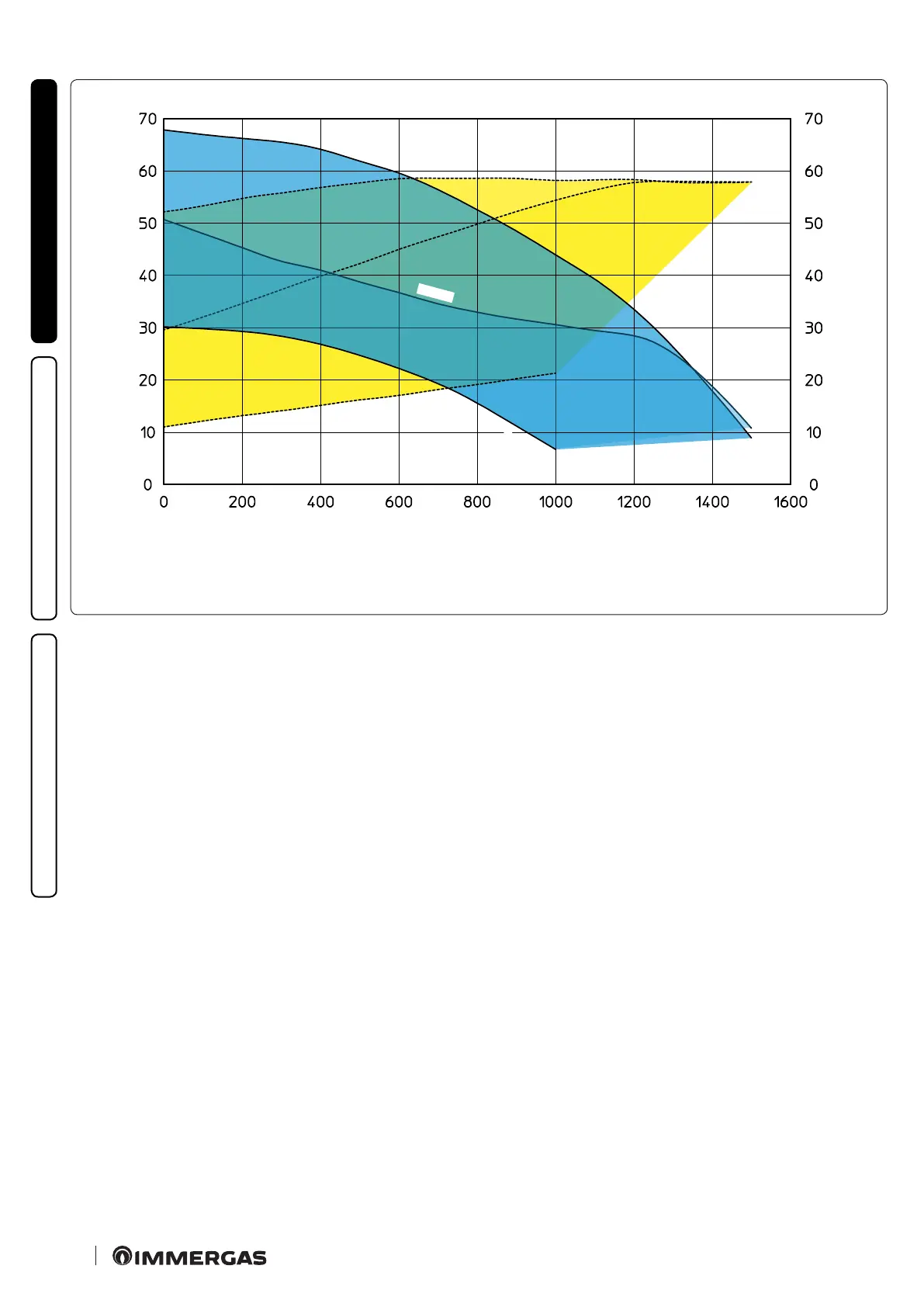

A+B = Head available with bypass closed
B = Head available with bypass open
C+D = Power absorbed by the pump with by-pass open (dotted area)
D = Power absorbed by the pump with bypass closed (dotted area)
Circulator pump absorbed power (W)
Flow rate (l/h)
Head (kPa)
Speed 5
Speed 9
Speed 9
