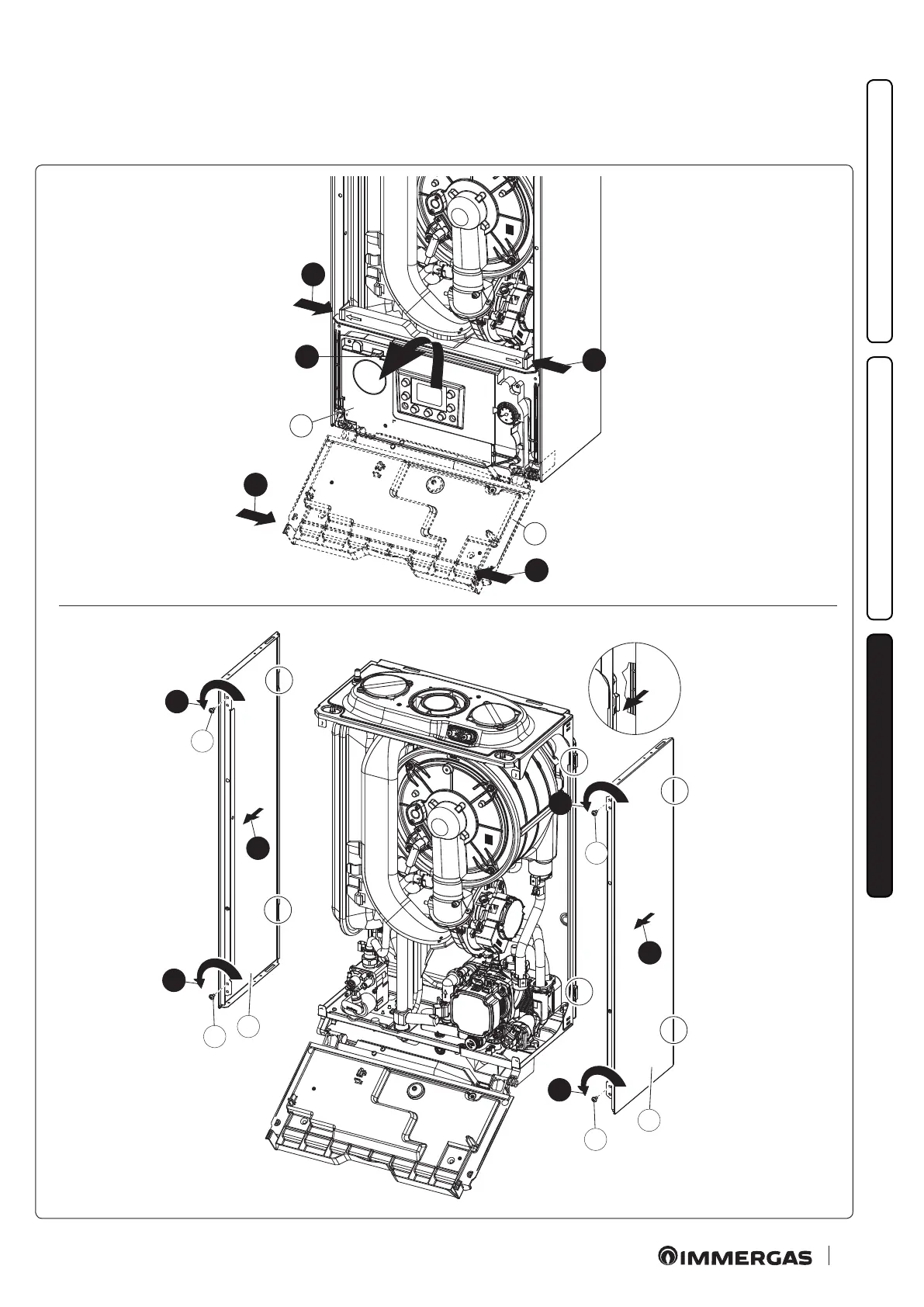

• Control panel (Fig. 56).
9) Press the hooks on the side of the control panel (i).
10) Tilt the control panel (i) towards you.
• Sides (Fig. 57).
11) Loosen screws (k) of side fastening (j).
12) Remove the sides by extracting them from their rear seat (Ref. X).
