Inficon SKY CDG100D - Switching Functions; Adjusting the Setpoints

INFICON Operation | 5
tina52e1-h (2024-09) 29
5.3
|
Switching Functions
The two setpoints can be set to any pressure within the mea-
surement range of the gauge.
The current setpoint setting
· can be read/written via the diagnostic port
· is output at the D-sub connector instead of the measurement
signal and can be measured with a voltmeter after the <SP>
button is pressed
· can be read/written via the RS232C interface.

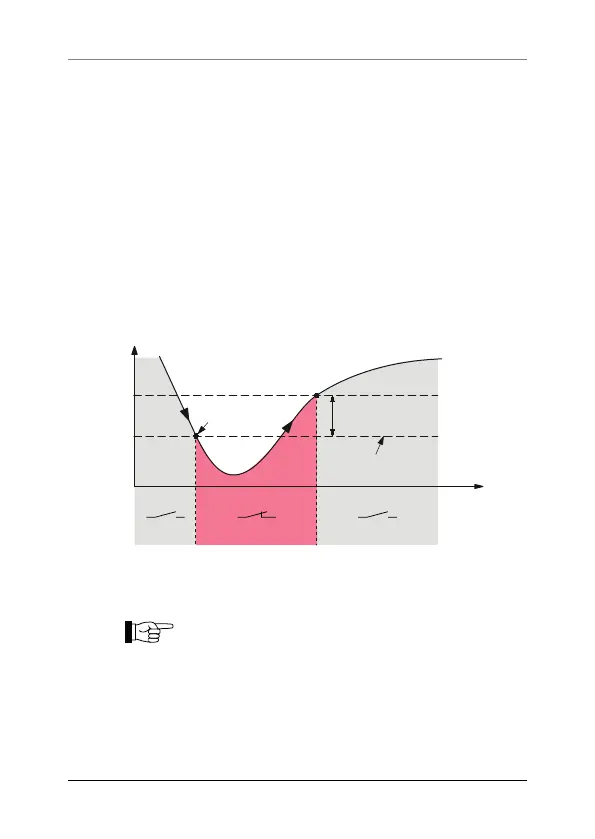

If the pressure in the vacuum system is lower than the setpoint,
the corresponding LED (<SP1> or <SP2>) is lit solid and the cor-
responding relay is energized.
Off
Measurement signal (pressure p)
Time t
OnOff
Setpoint
Threshold value
Hysteresis
(1% FS)
5.3.1
|
Adjusting the Setpoints
The setpoints can be adjusted via
· the buttons on the gauge
· the diagnostic port
· the RS232C interface
