Unpack the equipment
Check items integrity
Prepare RF-cables of the required length. For 5GHz devices the recommended maximal
RF cable length is 1 meter
Install and isolate the connectors on the RF cable
Determine the FTP cable length that is used to connect IDU and ODU. The total cable
length between LAN (behind IDU) and ODU should not be longer than 100 meters.
Service cable connecting IDU and ODU should be FTP Cat 5e cable with the outside
diameter value not more than 7mm

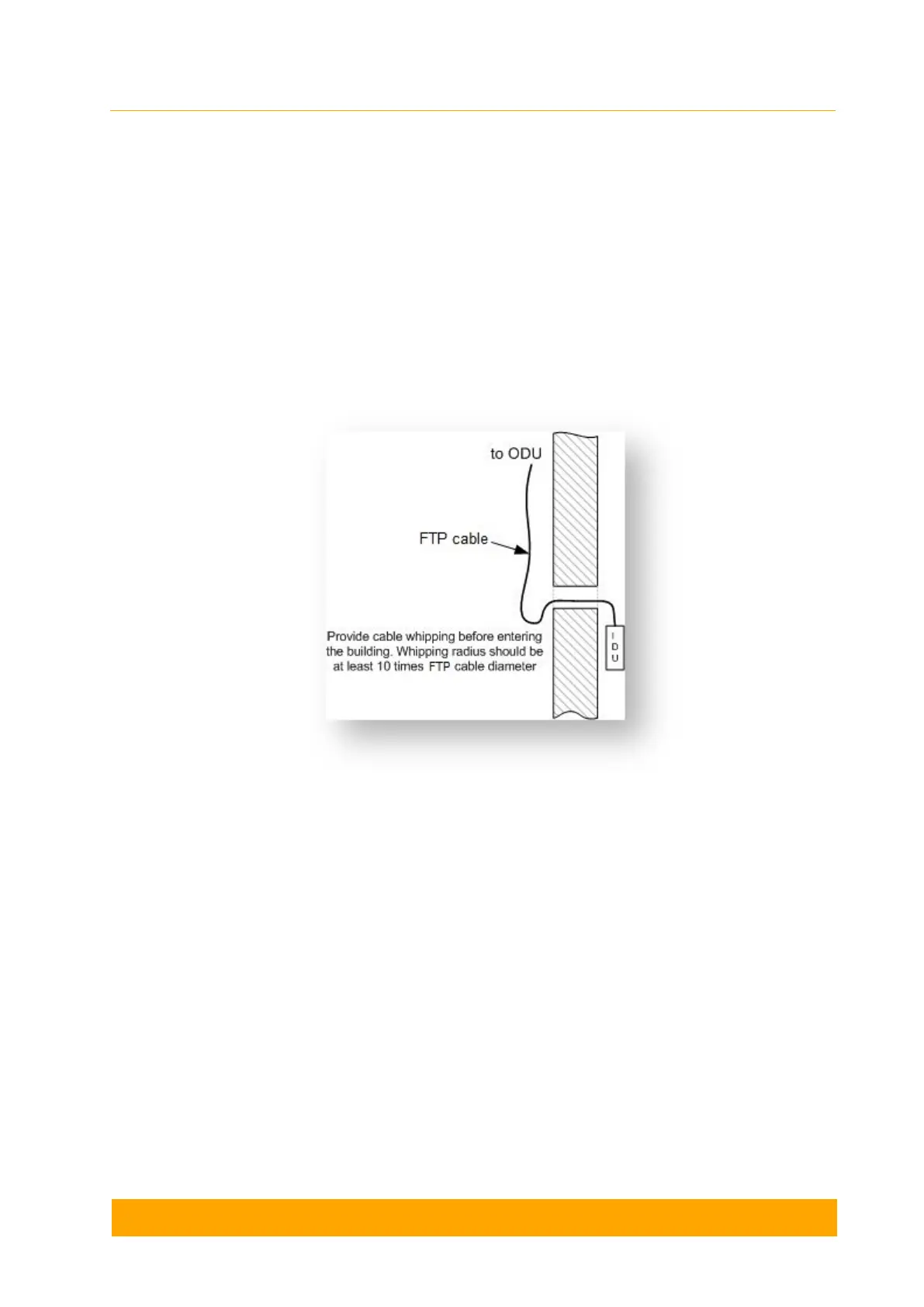

Figure - Installation scheme
Install (solder) connector for ODU side on the FTP cable and isolate it
Lay the FTP cable “from top to bottom” – from ODU to IDU
After the FTP cable has been laid, use distribution box to switch from FTP cable to UTP
cable with RJ-45 connectors.
Install ODU on the mounting bracket connectors down and tighten it
Connect the ODU-IDU cable to the ODU
Isolate the ODU connector joint place
