Once the antenna and antenna pole are installed they must be grounded via lightning
protection grounding contour. Antenna’s position must be lower than the highest antenna
pole point at least by 2 antenna heights. If antenna is NOT DC-shorted (see antenna
technical documentation), the additional lightning protection unit must be used which is
placed between ODU and antenna and is grounded to the antenna pole grounding
contour.
Connect RF cable to the antenna. Twist the connector tightly
Connect RF cable to the ODU previously having touched RF cable connector case with
ODU connector case
Isolate RF connectors from both sides (ODU and antenna)

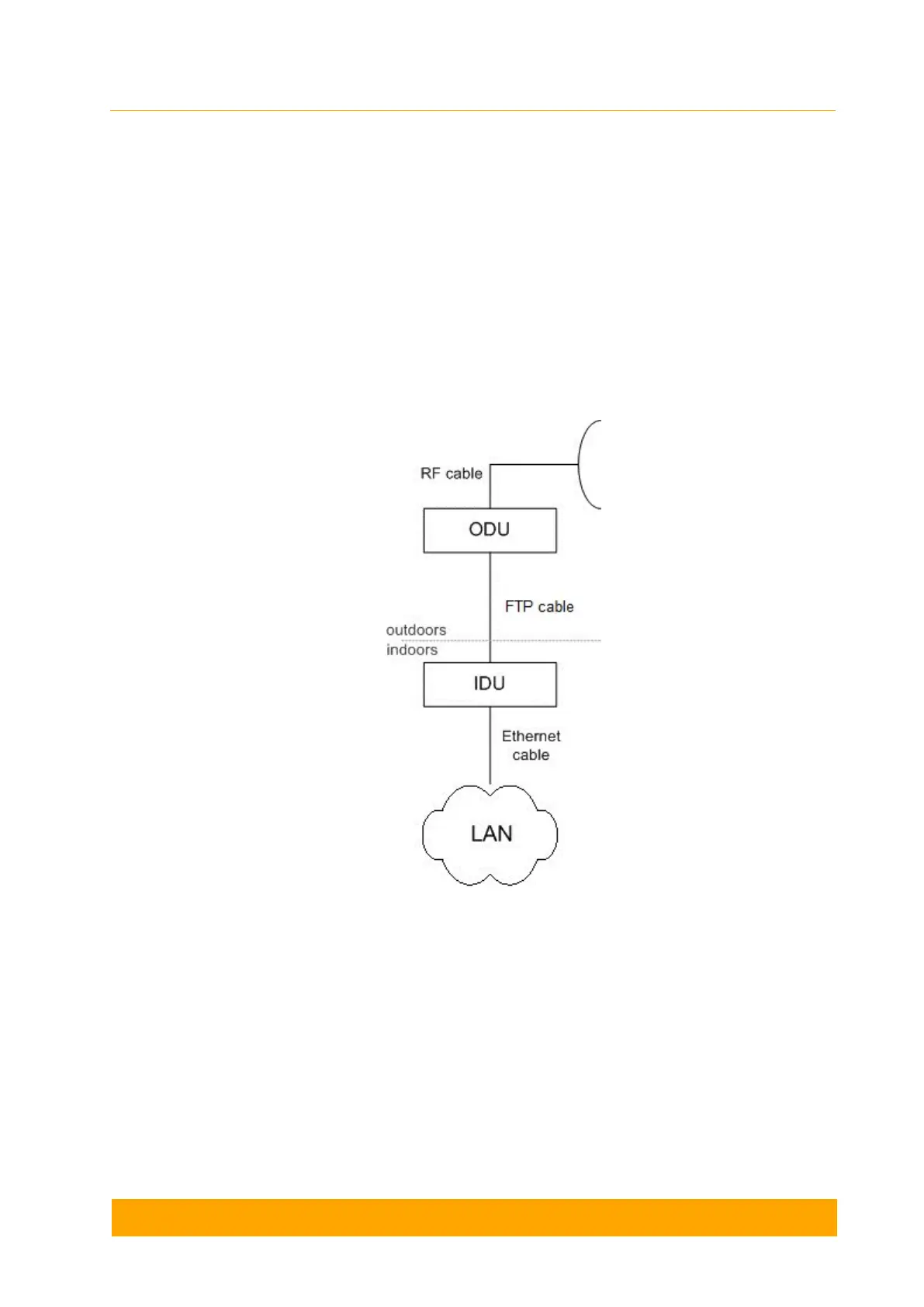

Figure - Connection scheme
Connect the UTP cable to IDU
Provide grounding for IDU
Connect Ethernet cable to IDU
Provide power supply for IDU
Connect to the Device using Telnet protocol
