InfiNet Wireless R5000 Installation

Installation of InfiNet Wireless R5000
Installation of InfiNet Wireless R5000
27
1.
2.
3.
Figure - AUX-ODU-INJ-G power connector
Follow requirements:
Press on these catchers (1) when the cable is terminated;
Use the round cable with diameter from 5mm to 6mm with conductor cross-section from
0.5mm to 2.5mm;
FTP Cat5e cable may be used.
AUX-ODU-INJ-G Grounding Scheme
The grounding and lightning protection initial procedures when using AUX-ODU-INJ-G are
similar to those when using regular IDU.

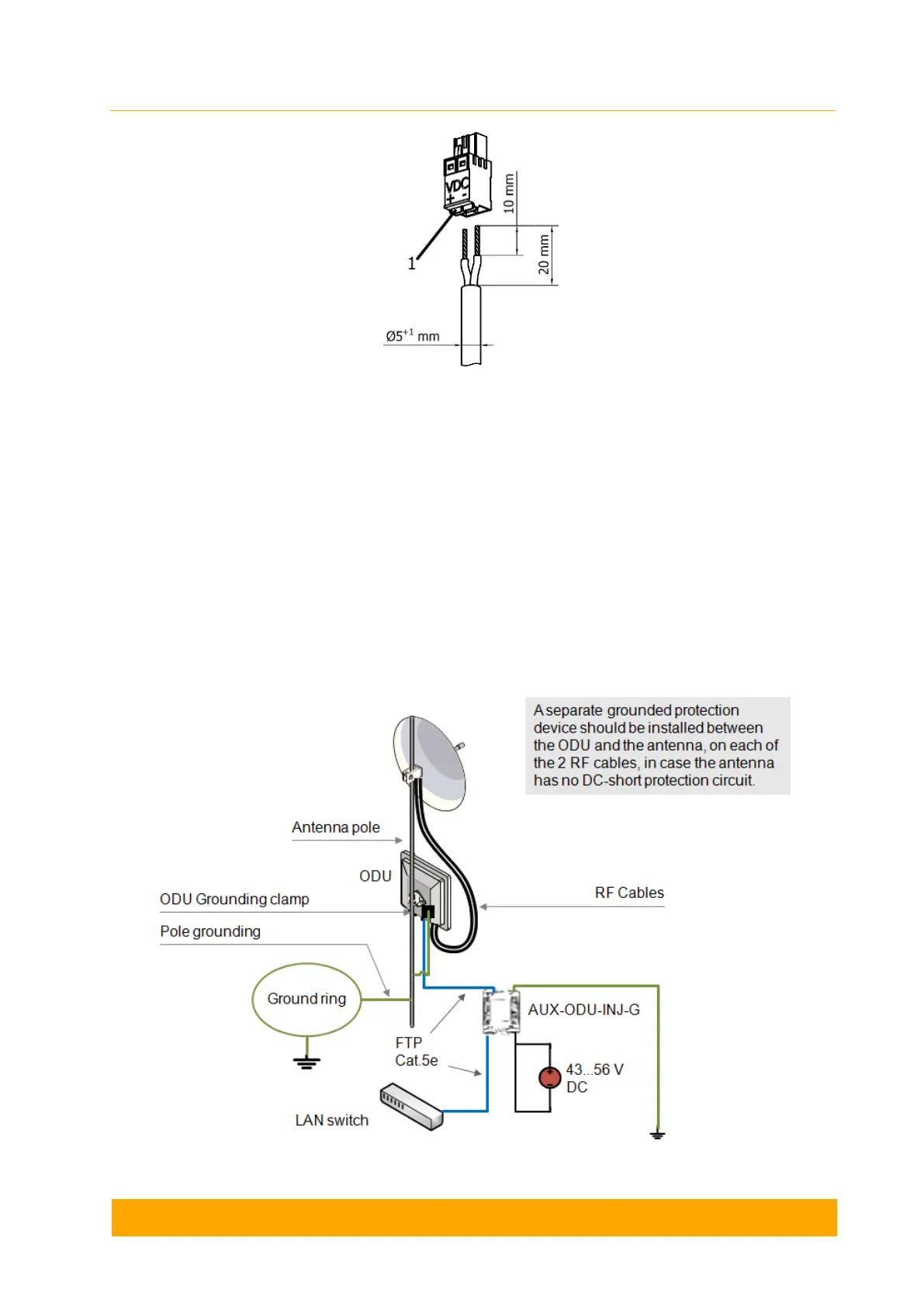

Figure - AUX-ODU-INJ-G Grounding Scheme
