InfiNet Wireless R5000 Technical User Manual

ςΙΙ.

Supplementary information

1. Connectors crimping schemes

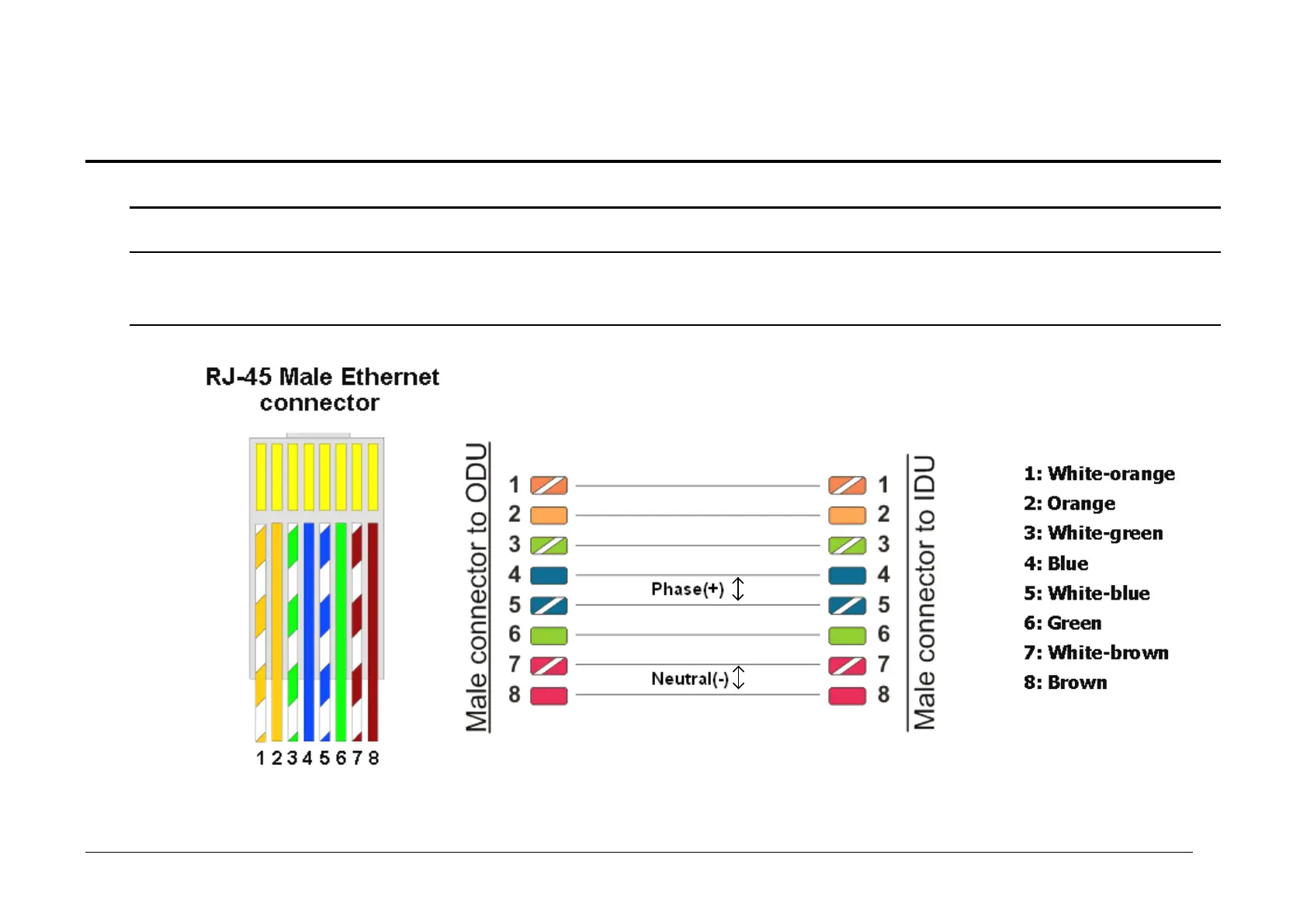

“RJ-45” service cable connector crimping scheme

Console cable connector soldering scheme

Table of Contents4
Getting Started11
Scope of this Document11
Hardware Description11
Installation Procedure11
Device Configuration Procedure11
Link Configuring11
Services, Features and Tools11
Recommendations11
Supplementary Information12
General Products Description12
Abbreviations13
Document Marks13
Additional Information13
Hardware Description14
Power Supply Units (IDU)14
Idu-Cpe14
Top View14
Front Panel14
Rear Panel15
Connection Scheme for IDU-CPE15
Idu-Bs-G16
Top View16
Front Panel16
Rear Panel17
Connection Scheme for IDU-BS-G17
Injector IDU-LA-G18
Top View18
Front Panel18
Inside View19
Connection Scheme for IDU-LA-G (for Second Ethernet Port)20
Connection Scheme for IDU-LA-G (for Third-Party Power Sources)20
Outdoor Units (ODU)21
Infinet Wireless Smnb/Smn21
Idu21
Odu21
Infinet Wireless R5000-Lmn22
Idu22
Odu22
ODU LED Indicators Description29
Installation Procedure30
Installation Preparations30
Required Components and Accessories30
Antenna Placement30
Antenna Poles Usage31
Poles with Stretching31
Wall Mounted Pole31
Antenna Poles Requirements31
Grounding31
Grounding When Using IDU-LA33
Antenna Alignment34
Precaution Measures35
Service Cable Crimping Procedure36
RJ-45" Connector36
Tools to be Available at the Installation Site40
Infinet Wireless R5000-Omx/Omxb41
Installation Guidelines41
Infinet Wireless R5000-Lmn43
Installation Guidelines43
Infinet Wireless R5000-M/MM and R5000-Smn/Smnb/Smnc45
Installation Guidelines46
Mounting Kit (MOUNT-KIT-85)47
General View47
Assembly49
Possible Variants of the Installation51
Infinet Wireless R5000-Smnc52
Configuration (Web-Interface)57
Overall Functionality Overview57
Prerequisites57
Localization57
Basic Settings58
System Settings59
Network Settings60
Link Settings62
Static Links63
MAC Switch64
IP Firewall66
Snmp67
Access67
Traps69
Qos Options70
Extra Commands70
Device Status71
Extended Link Diagnostic73
Antenna Alignment Tool73
Performance Tests77
Stats Graphs78
Daily Graphs83
Extended Interface Statistics83
General Statistics84
Radio Sources Analysis84
Qos Statistics84
Network Address Table84
Maintenance85
Spectrum Analyzer86
Dfs88
Command Line Emulation89
Configuration (Cli)90
Initial Settings Configuration Procedure90
Device Interfaces90
Command Line Interface (CLI)91
Configuration Manipulations91
Printing and Saving Your Configuration91
Import/Export92
Uploading Firmware92
IP Address Formats92
Ethernet Interface Configuration93
Radio Interface Configuration93
Network Topology Setup94
Link Setup95
Preliminary Decisions95
Bitrate Selection95
Frequency Planning for Multi-Sectored Base Stations95
Transmitting Power Selection95
Range|Bitrate Calculation95
Link Diagnostic Tools96
Ltest96
Muffer99
Review Mode99
MAC2 Mode100
Statistics101
Other Modes of Muffer102
Load Meter102
Acquiring Interfaces Statistics103
Infinet Wireless Rapidview-1103
Top View104
Back View104
Indicator Panel105
How to Use105
Lost Password Recovery109
