88
Copyright © 2004-2012 by InfiNet Wireless
8. DFS

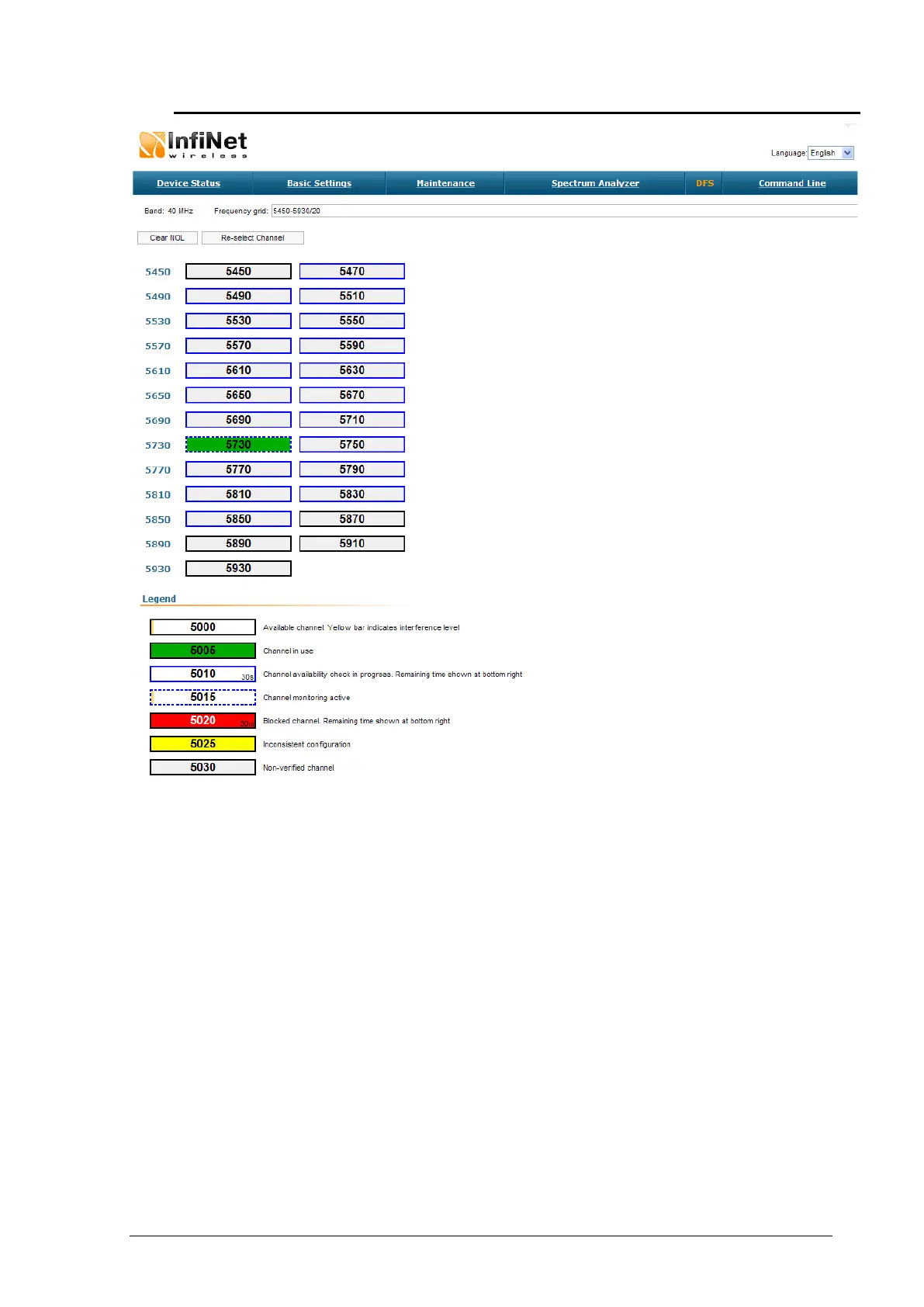

The «DFS» page allows monitoring and management of the DFS operation. The
DFS status and availability indicators are shown for each frequency for the given
band and grid (shown at the top of the page). To understand the indicators
please see Legend at the bottom.
“Clear NOL” button clears the non occupation list of the frequencies blocked for
using due to the radars detected there and allows the DFS subsystem to rescan
those frequencies. If not cleared blocked frequencies will be available for rescan
after the time period shown in the right bottom corner of the frequency
indicator.
“Re-select Channel” button restarts the DFS scanning.
