InfiNet Wireless R5000 User Manual

Name: InfiNet Wireless R5000
Brand: InfiNet Wireless
Rating: 4 (1 reviews)

116 pages

To Next Page

To Previous Page

Service cable crimping procedure

“RJ-45” connector

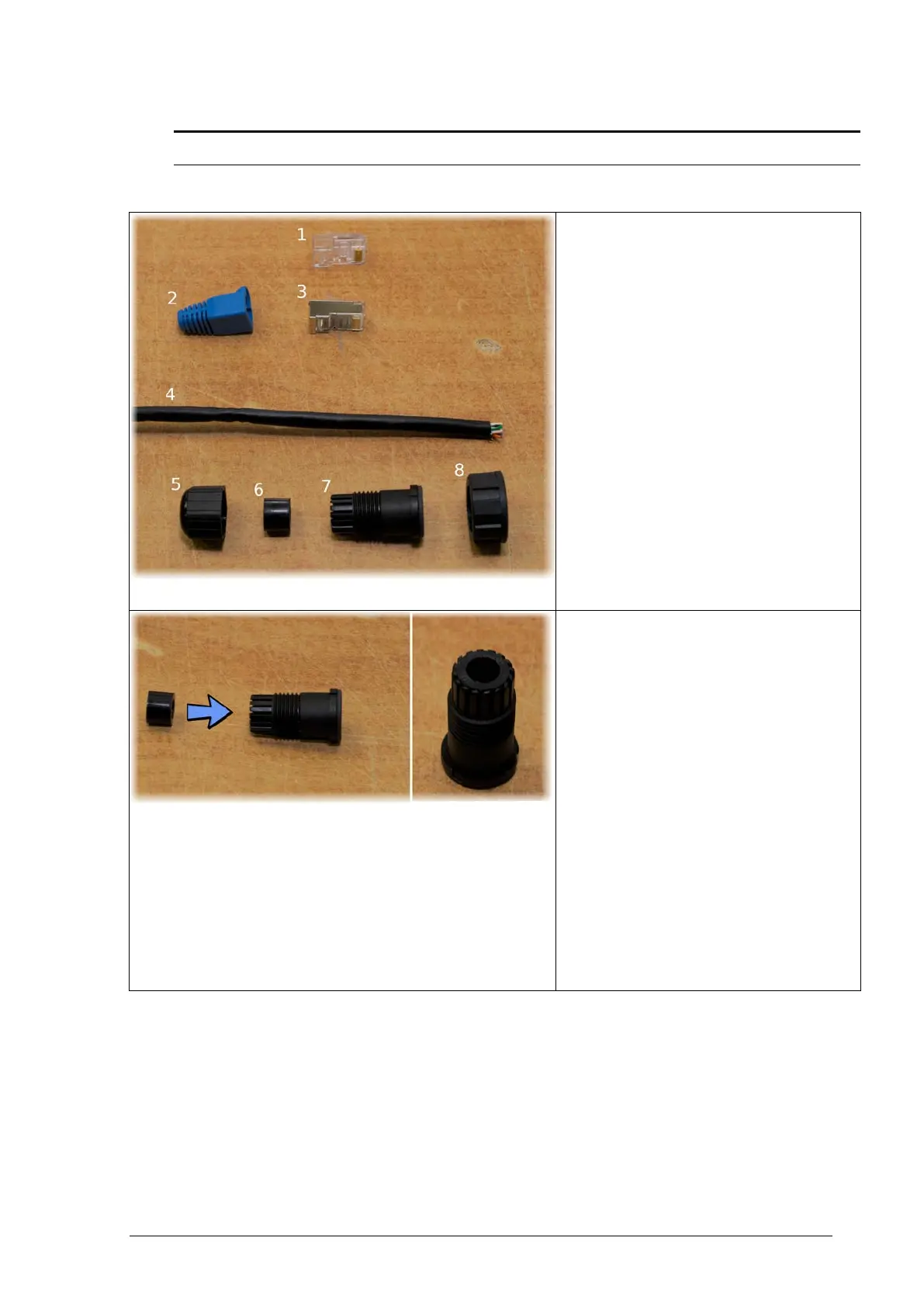

The following instruction describes the “RJ-45” connector crimping procedure for

R5000-Mmx/Mmxb/Omx/Omxb models.

Components required:

1. Standard RJ-45 connector

2. Connector cover

3. Shielded RJ-45 connector

4. STP 5e cable

5. Cable sealing nut

6. Cable sealing bush

7. Cable gland case

8. Cable gland nut
