52
Copyright © 2004-2012 by InfiNet Wireless
8. InfiNet Wireless R5000-Smnc
R5000-Smnc supports several installation options such as pole mounting using
the supplied clamps and pipe/wall/pole mounting using the optional mount kit
MOUNT-KIT-85C.
The clamps supplied with each device allow it to be mounted on a 32-60 mm
pole.

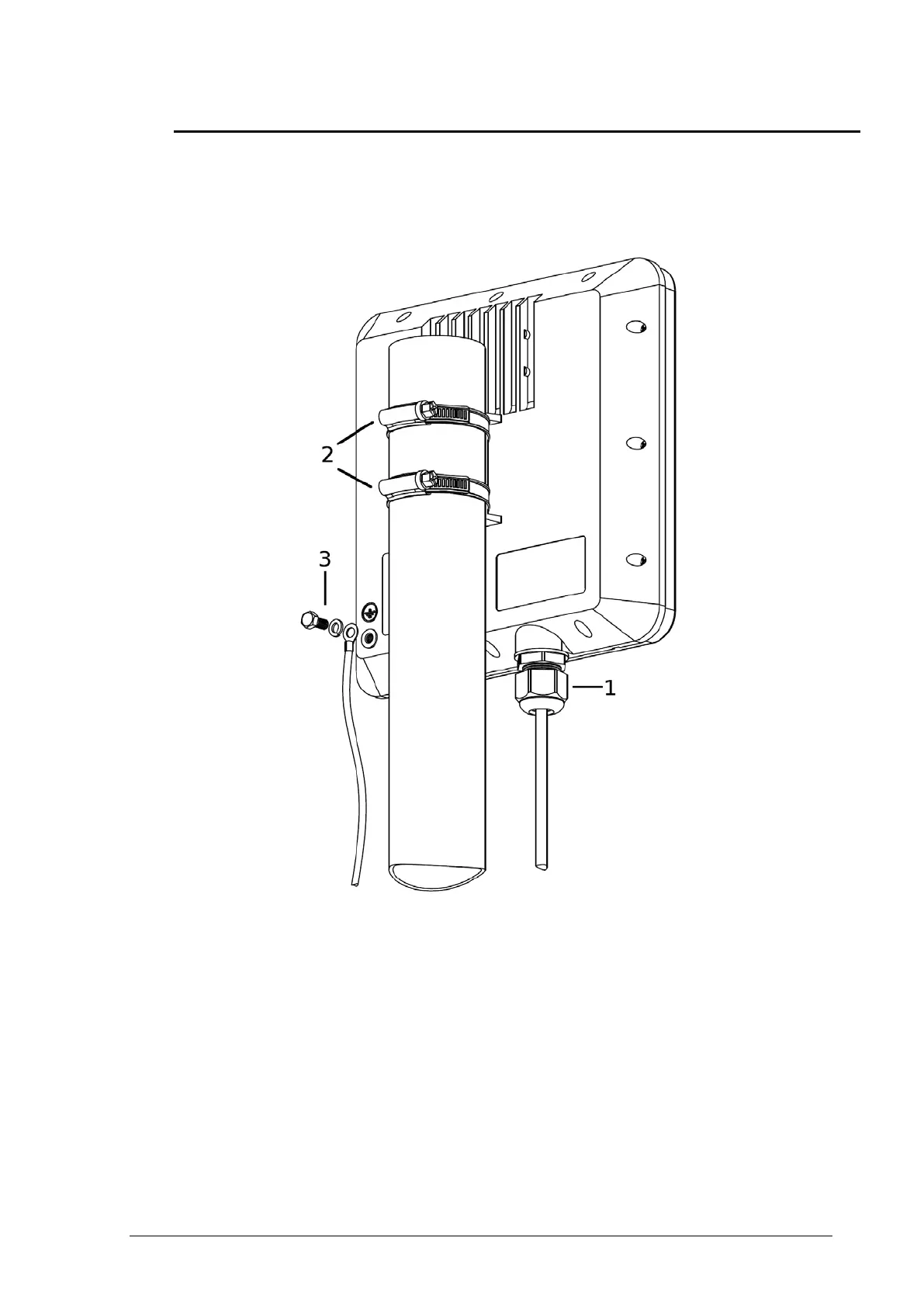

In order to mount the device on a pole follow the guidelines below:
• Ensure that the cable gland (1) is assembled properly.
• Attach the clamps to the pole and to the unit mounting point.
• Hold the unit at the designated position and tighten the clamps by rotating
the bolts (2) with a screwdriver or a 7mm wrench. Do not overtighten
the clamps.
