“RJ-45” connector (Modification 2)
The following instruction shows the “RJ-45” (modification 2) connector soldering
procedure.

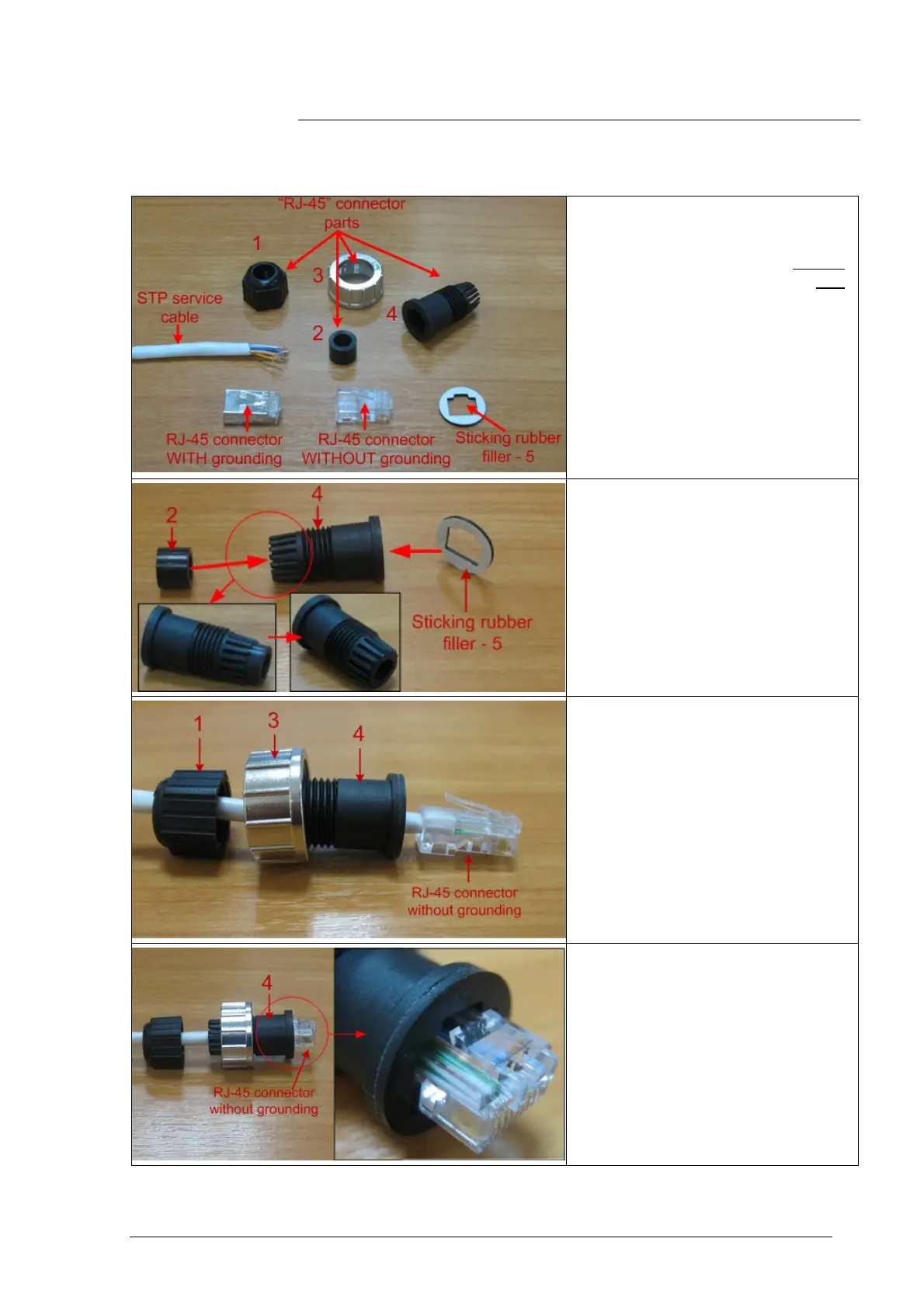

Step 1. Peel STP service cable and
prepare “RJ-45” connector parts.
Use RJ-45 connector without
grounding here (RJ-45 connector with
grounding is used for connecting
service cable to IDU).
Step 2. Stick rubber filler – 5 on the
Part 4, previously having removed
protective white layer from rubber
filler -5.
Insert Part 2 inside part 4 up to the
stop. Part 2 must be entirely within
Part 4.
Step 3. Put connector parts on the
STP service cable as shown.
Attach RJ-45 connector without
grounding to the STP service cable
according to the “RJ-45” soldering
scheme and crimp the connector.
Step 4. Put Part 4 on the attached in
the previous step RJ-45 connector.
