Changing AC Power Supplies
For the Infoblox 1400 Series Platforms 37

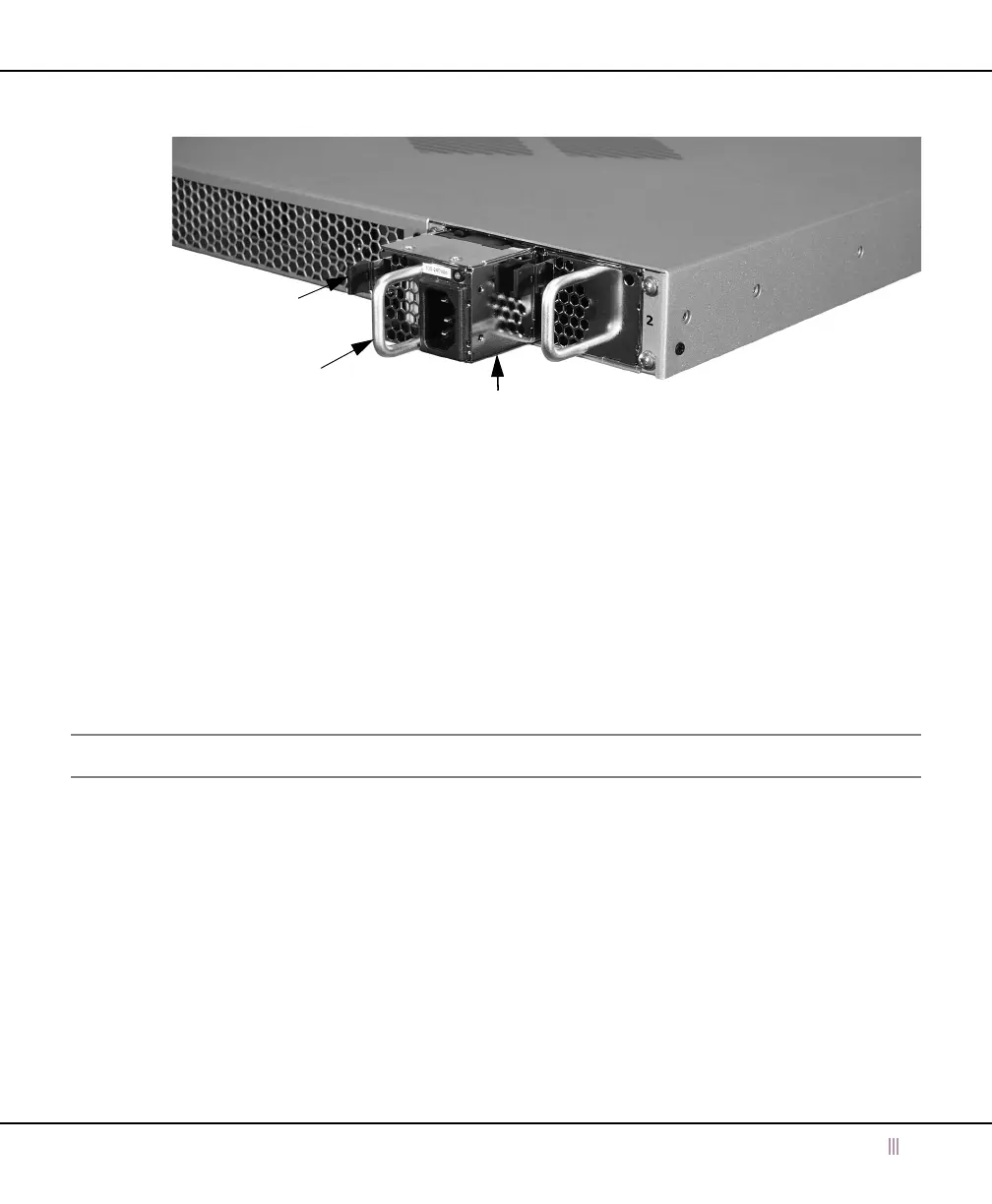

Figure 16 Removing the Trinzic TE-1415/Trinzic TE-1425/ND-1405 AC Power Supply
To replace the Infoblox SoT 1405 Series AC power supply, do the following:
1. Turn off the power circuit to the appliance's AC power supply.
2. Disconnect the AC power cable from the appliance's AC power supply.
3. Gently press the black catch-release lever toward the handle, grip the power supply handle, and pull the
power supply unit out of the chassis as illustrated in Figure 16.
4. Place the replacement power supply into the bay and push it forward until it is fully seated in the chassis.
The catch-release lever will gently click into place.
5. Reconnect the power cable.
6. Turn on the power supply. If it is fully seated, powered on, and operating properly, the LED glows steady
green.
Using Redundant 1+1 Power Supplies
Note: Redundant 1+1 power supplies may be installed in AC or DC configurations.
You can order a second power supply to activate a redundant 1+1 configuration, as shown in Figure 17. In
redundant configuration, power supplies are “hot-swappable,” allowing removal or replacement of one power
supply without interrupting appliance operation and network services.
Redundant power supplies share the power load. If one power supply fails, the other automatically assumes the full
load and the appliance sends a system alarm. This configuration minimizes the chance of system failure due to
failure of an individual power supply.
Handle
Catch-release lever
(black)
Power supply is in PSU #1 Slot
