29
5

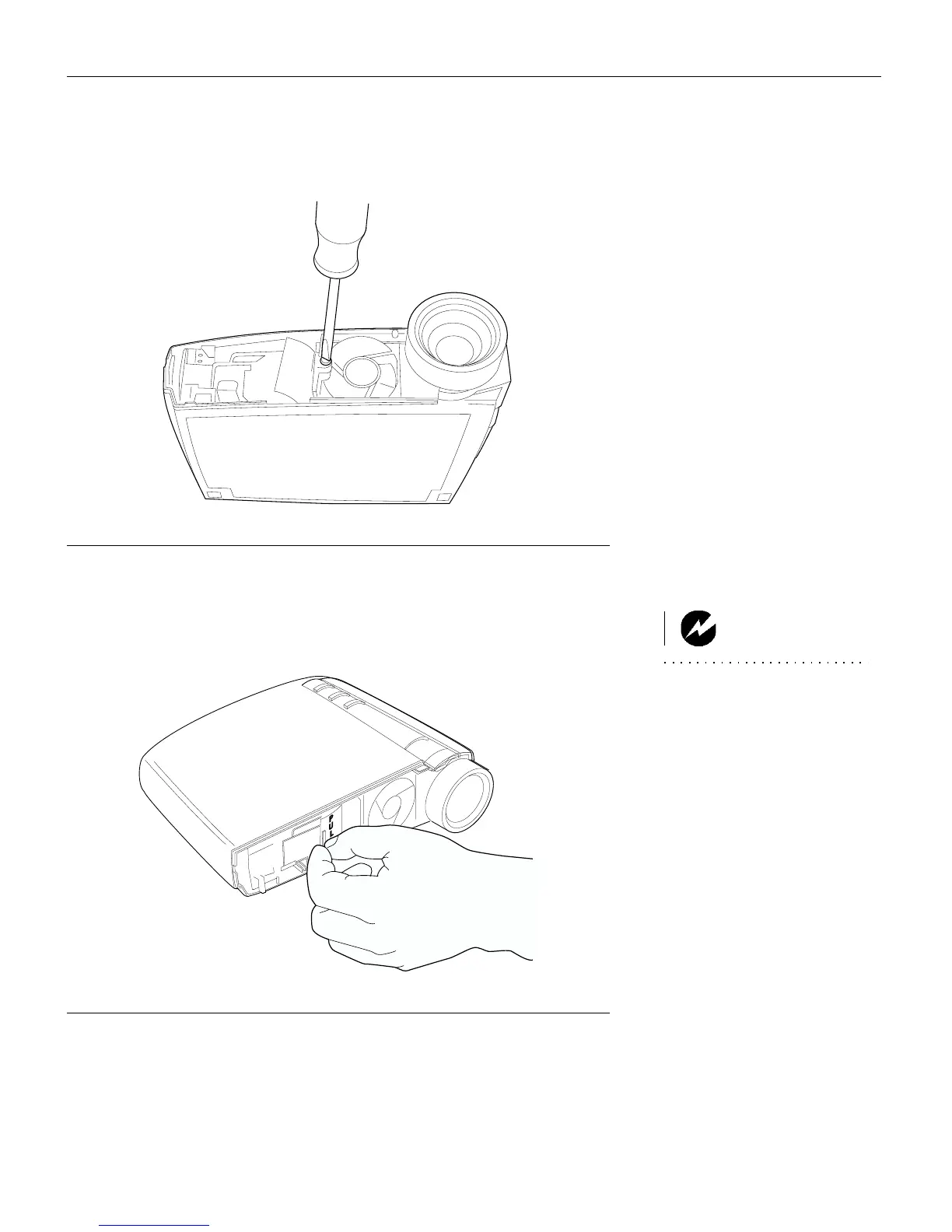

Loosen the captive screw on the lamp module.
FIGURE 23
Loosening the screw on the lamp module
6
Grasp the pull tab to pull the lamp module out. Dispose of the
lamp module in an environmentally proper manner.
WARNING: Do not drop the
lamp module or touch the glass
bulb! The glass may shatter and
cause injury.
F
IGURE
24
Removing the lamp module
