InFocus X17 User Manual

Positioning your projector12
Projection dimensions
Refer to "Dimensions" on page 52 for the center of lens dimensions of this projector
before calculating the appropriate position.
There is 3% tolerance among these numbers due to optical component variations. InFocus
recommends that if you intend to permanently install the projector, you should physically test
the projection size and distance using the actual projector in situ before you permanently
install it, so as to make allowance for this projector's optical characteristics. This will help you
determine the exact mounting position so that it best suits your installation location.
4:3 screen diagonal Recommended projection distance
from screen in mm
Vertical offset in
mm
Feet Inches mm Min length
(with max.
zoom)
Average Max length
(with min.
zoom)
4 48 1219 1846 1938 2031 73
59 1500 2271 2385 2498 90
5 60 1524 2308 2423 2538 91
6 72 1829 2769 2908 3046 110
79 2000 3028 3180 3331 120
7 84 2134 3231 3392 3554 128
8 96 2438 3692 3877 4062 146
98 2500 3786 3975 4164 150
9 108 2743 4154 4362 4569 165
118 3000 4543 4770 4997 180

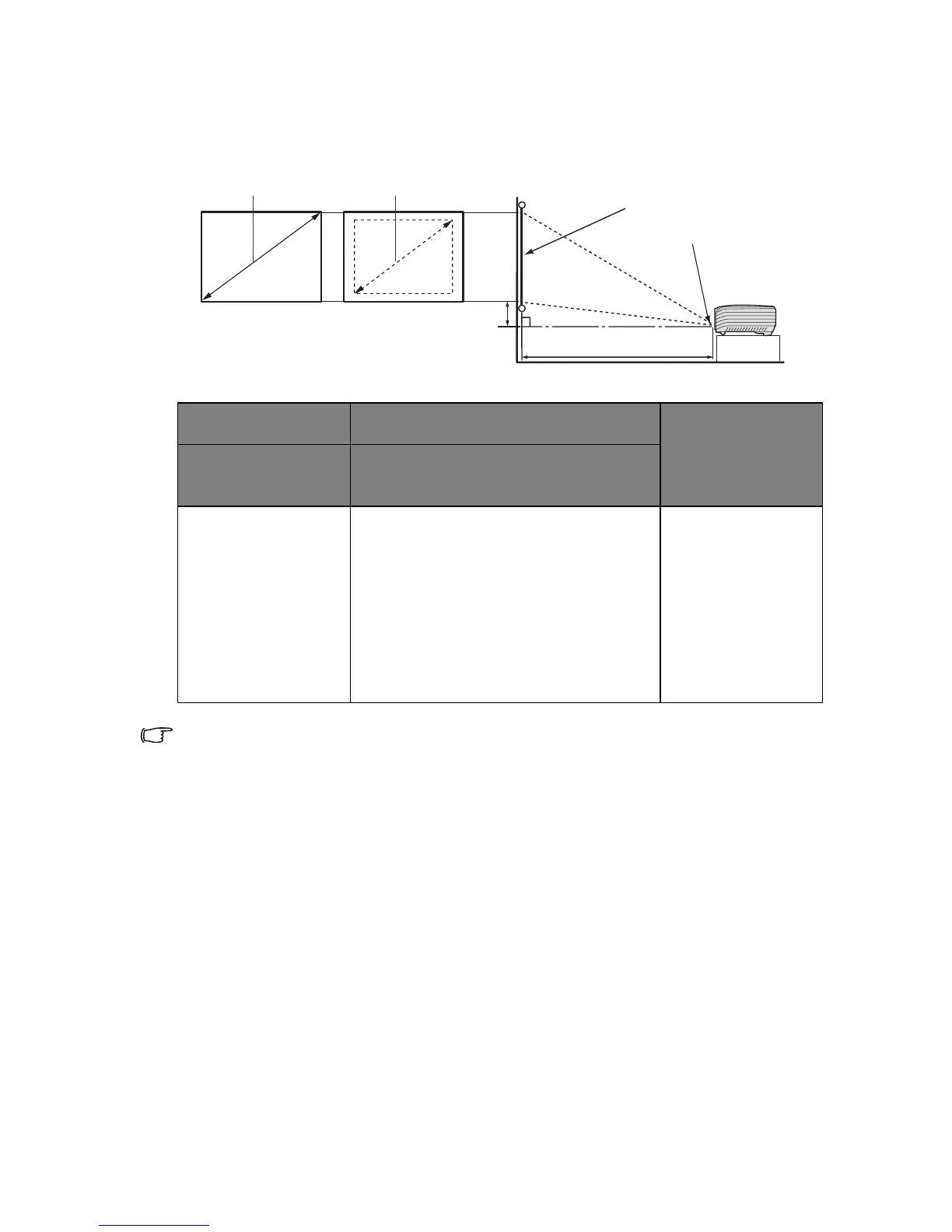

Projection distance
Center of lens
Screen
Vertical offset
Maximum zoom
Minimum zoom

InFocus X17 Specifications

General

Matrix size	0.55 \
Projection distance	1.49/6 m
Vertical scan range	56 - 85 Hz
Horizontal scan range	31.35 - 68.7 kHz
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	0.69 - 6.4 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	-30/30 °
Aspect ratio	4:3, 5:4, 16:9
RS-232 ports	1
Dimensions (WxDxH)	223.5 x 263.9 x 111.8 mm
Power requirements	100 - 240 V, 50 - 60 Hz
Throw ratio	1.9 - 2.1:1
Lamp power	140 W
Light source type	Lamp
Service life of light source (economic mode)	4000 h
Analog signal format system	NTSC, PAL, SECAM
RMS rated power	5 W
Serial interface type	RS-232
Noise level	29 dB
Power consumption (typical)	285 W
Operating temperature (T-T)	5 - 35 °C
Placement	Ceiling

Weight and Dimensions

Weight	2400 g
