InFocus X17 User Manual

Introduction6
Controls and functions

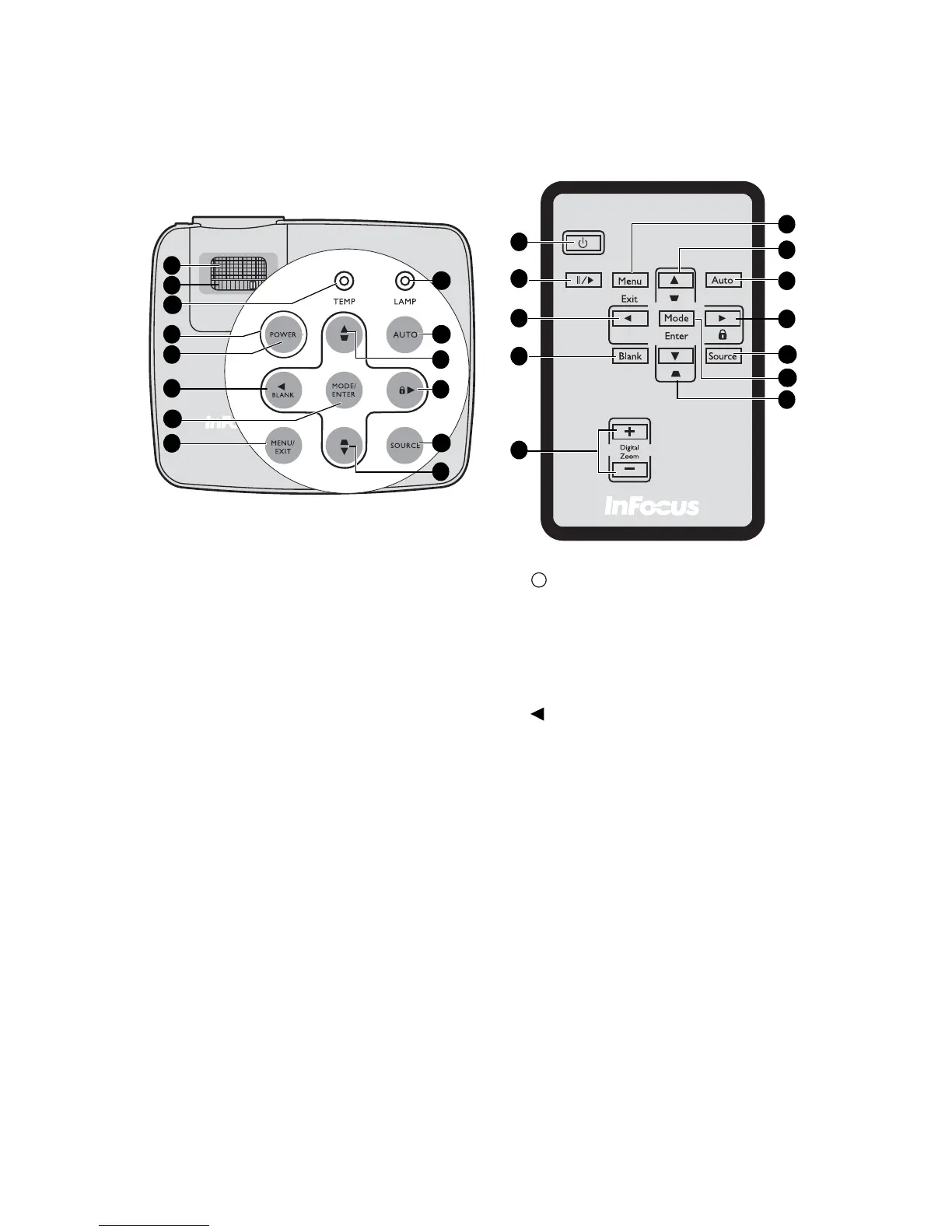

Projector and remote control
1. Focus ring
Adjusts the focus of the projected
image. See "Fine-tuning the image size
and clarity" on page 25 for details.
2. Zoom ring
Adjusts the size of the image. See
"Fine-tuning the image size and clarity"
on page 25 for details.
3. TEMPerature indicator light
Lights up red if the projector's
temperature becomes too high. See
"Indicators" on page 49 for details.
4. POWER indicator light
Lights up or flashes when the projector
is under operation. See "Indicators" on
page 49 for details.
5. POWER
Toggles the projector between
standby mode and on. See "Starting
up the projector" on page 19 and
"Shutting down the projector" on page
35 for details.
6. Left/BLANK
Used to hide the screen picture. See
"Hiding the image" on page 33 for
details.
7. MODE/ENTER
Selects an available picture setup
mode. See "Selecting a picture mode"
on page 28 for details.
Enacts the selected On-Screen
Display (OSD) menu item. See "Using
the menus" on page 20 for details.
1
8
12
9
10
7
13
3
6
4
5
11
11
2
5
13
14
15
16
17
12
8
11
11
7
10
I
I

InFocus X17 Specifications

General

Matrix size	0.55 \
Projection distance	1.49/6 m
Vertical scan range	56 - 85 Hz
Horizontal scan range	31.35 - 68.7 kHz
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	0.69 - 6.4 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	-30/30 °
Aspect ratio	4:3, 5:4, 16:9
RS-232 ports	1
Dimensions (WxDxH)	223.5 x 263.9 x 111.8 mm
Power requirements	100 - 240 V, 50 - 60 Hz
Throw ratio	1.9 - 2.1:1
Lamp power	140 W
Light source type	Lamp
Service life of light source (economic mode)	4000 h
Analog signal format system	NTSC, PAL, SECAM
RMS rated power	5 W
Serial interface type	RS-232
Noise level	29 dB
Power consumption (typical)	285 W
Operating temperature (T-T)	5 - 35 °C
Placement	Ceiling

Weight and Dimensions

Weight	2400 g
