InFocus X17 User Manual

Operation20
Using the menus
The projector is equipped with On-Screen Display (OSD) menus for making various
adjustments and settings.
Below is the overview of the OSD menu.
To use the OSD menus, please set them to your familiar language first.
1. Press MENU/EXIT on the projector or
remote control to turn the OSD menu
on.
3. Press to highlight
Language and press /
to select a preferred
language.
2. Use / to highlight the SYSTEM
SETUP: Basic menu.
4. Press MENU/EXIT twice* on
the projector or remote
control to leave and save the
settings.
*The first press leads you back to
the main menu and the second
press closes the OSD menu.

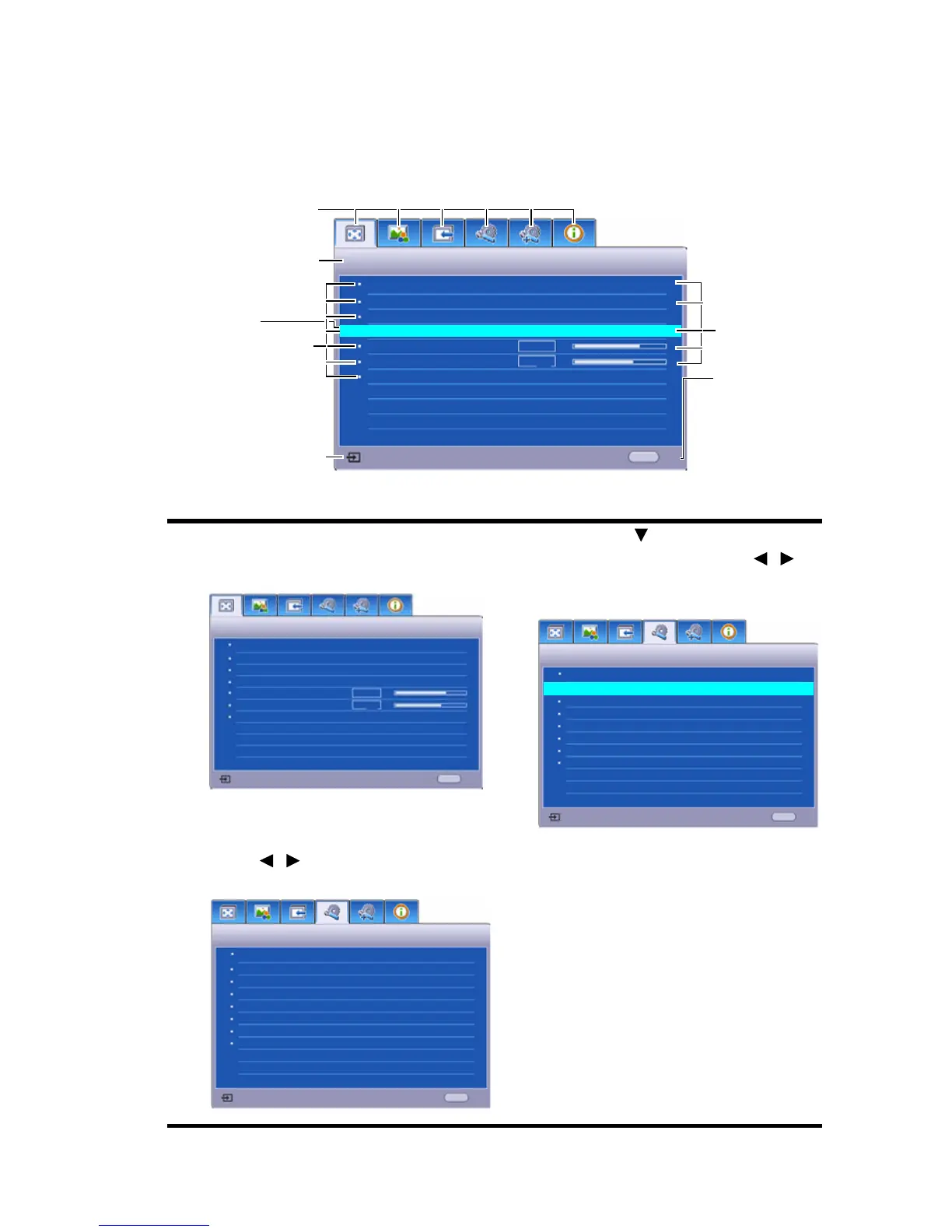

Current input signal
Main menu icon
Main menu
Sub-menu
Highlight
Press MENU/
EXIT to the
previous
page or to
exit.
Status
DISPLAY
Wall Color
Aspect Ratio
Phase
H. Size
Digital Zoom
Off
Auto
16
0
MENU Exit
Analog RGB
ENTER
Keystone
Position
DISPLAY
Wall Color
Aspect Ratio
Position
Phase
H. Size
Digital Zoom
Off
Auto
MENU Exit
Keystone
16
0
Analog RGB
SYSTEM SETUP: Basic
Projector Position
Auto Power Off
Blank Timer
Timer Controller
Panel Key Lock
Splash Screen
Analog RGB
MENU Exit
Front Table
Disable
Disable
Off
Disable
InFocus
Presentation Timer
EnglishLanguage
SYSTEM SETUP: Basic
Projector Position
Auto Power Off
Blank Timer
Timer Controller
Panel Key Lock
Splash Screen
Analog RGB
MENU Exit
Front Table
Disable
Disable
Off
Disable
InFocus
Presentation Timer
EnglishLanguage

InFocus X17 Specifications

General

Matrix size	0.55 \
Projection distance	1.49/6 m
Vertical scan range	56 - 85 Hz
Horizontal scan range	31.35 - 68.7 kHz
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	0.69 - 6.4 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	-30/30 °
Aspect ratio	4:3, 5:4, 16:9
RS-232 ports	1
Dimensions (WxDxH)	223.5 x 263.9 x 111.8 mm
Power requirements	100 - 240 V, 50 - 60 Hz
Throw ratio	1.9 - 2.1:1
Lamp power	140 W
Light source type	Lamp
Service life of light source (economic mode)	4000 h
Analog signal format system	NTSC, PAL, SECAM
RMS rated power	5 W
Serial interface type	RS-232
Noise level	29 dB
Power consumption (typical)	285 W
Operating temperature (T-T)	5 - 35 °C
Placement	Ceiling

Weight and Dimensions

Weight	2400 g
