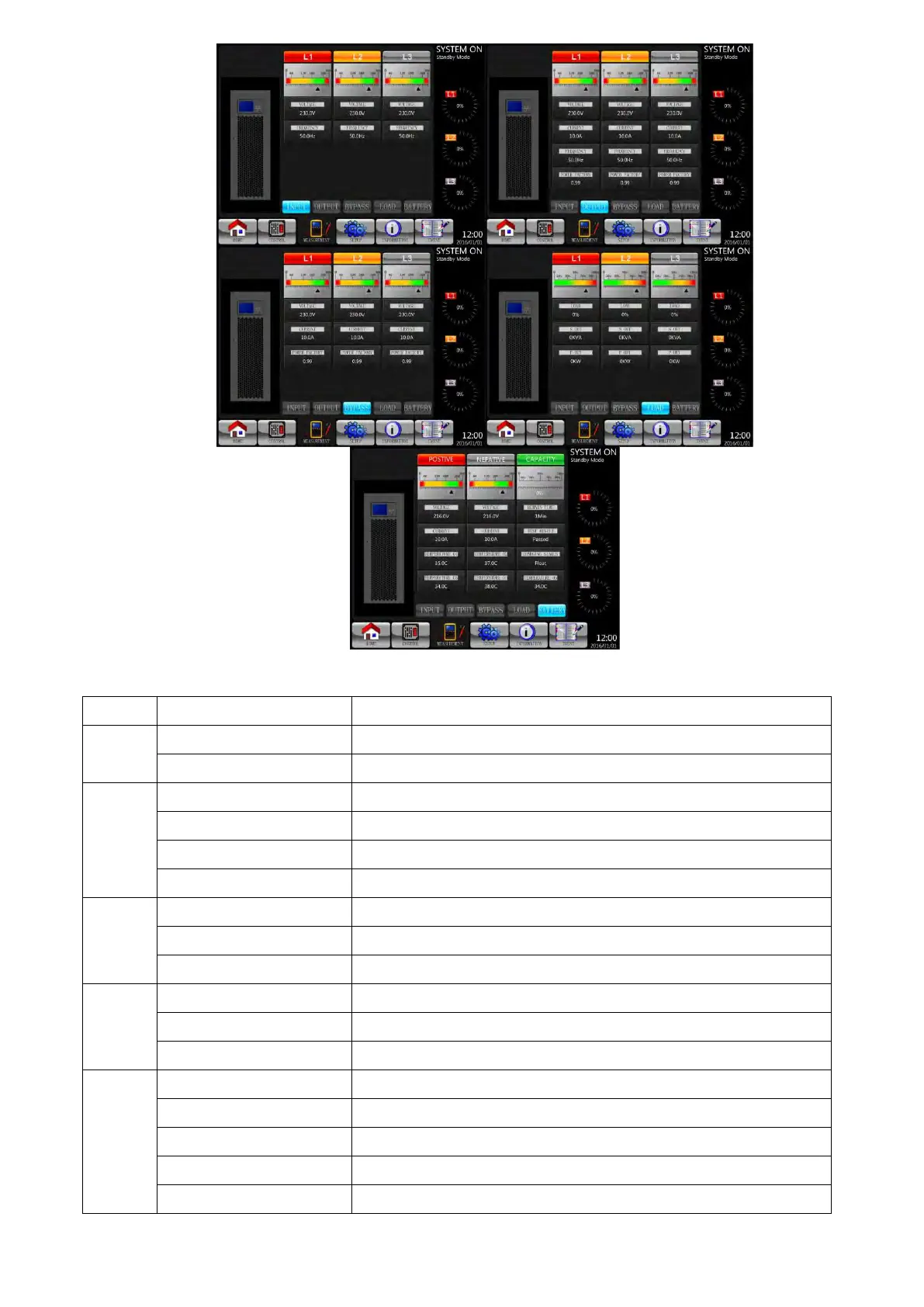

System Measurement Screens
Measurement Items
Submenu
Item
Explanation
Input
L-N Voltage (V)
Input phase voltage (L1, L2, L3). Units 0.1V.
Frequency (Hz)
Input frequency (L1, L2, L3). Units 0.1Hz.
Output
L-N Voltage (V)
Output phase voltage (L1, L2, L3). Units 0.1V.
L-N Current (A)
Output phase current (L1, L2, L3). Units 0.1A.
Frequency (Hz)
Output frequency (L1, L2, L3). Units 0.1Hz.
Power Factor
Output power factor (L1, L2, L3).
Bypass
L-N Voltage (V)
Bypass phase voltage (L1, L2, L3). Units 0.1V.
Frequency (Hz)
Bypass frequency (L1, L2, L3). Units 0.1Hz.
Power Factor
Bypass power factor (L1, L2, L3).
Load
Sout (KVA)
Apparent power. Units 0.1KVA.
Pout (KW)
Active power. Units 0.1KW.
Load Level (%)
The percentage of connected load. Units 1%.
Battery
Positive Voltage (V)
Battery positive voltage. Units 0.1V.
Negative Voltage (V)
Battery negative voltage. Units 0.1V.
Positive Current (A)
Battery positive current. Units 0.1A.
Negative Current (A)
Battery negative current. Units 0.1A.
Remain Time (Sec)
Battery remaining runtime. Units 1sec.
