16 Communication Port
16.1 RS232 Interface
Description of DB-9 connector.
Pin # Description I/O
2 TXD Output
3 RXD Input
5 GND Input
16.2 AS400 Interface (Option)
The E
4
UPS may be equipped with an AS400 card (optional) for AS400 communication protocol. Please
contact your local distributor for details. The following is the pin assignment and description of DB-9
connector in AS400 card.
Pin #
Description I/O
1 UPS Fail Output
2
Summary
Alarm
Output
3 GND Input
4
Remote
Shutdown
Input
5 Common Input
6 Bypass Output
7 Battery Low
Output
8 UPS on Output
9 Line Loss Output
Note:
It is also possible to insert a SNMP AGENT in the “Intelligent Slot”.

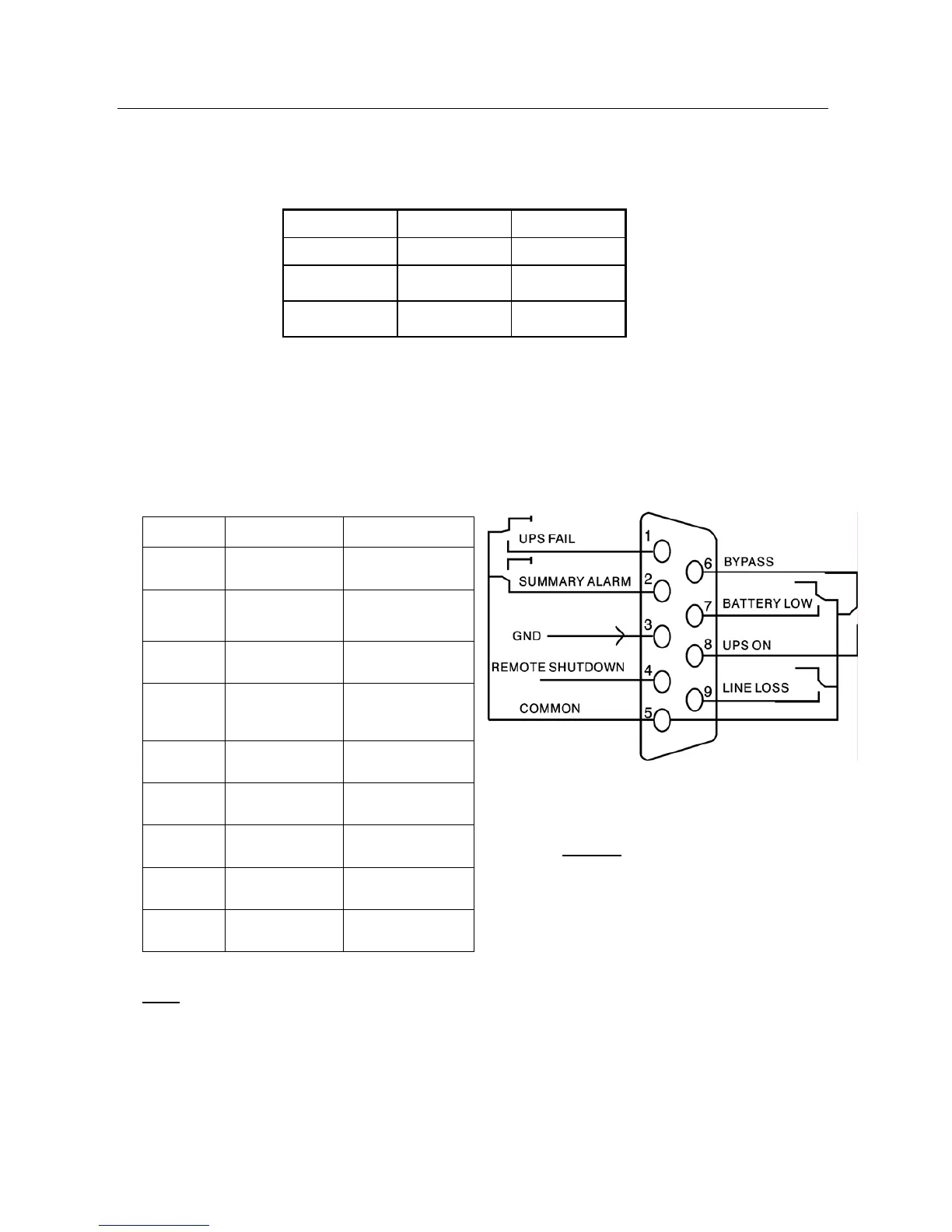

Fig 16.2: DB-9 Interface of AS400
Communication
p
rotocol
